Home > Construction & Decoration > Wire Mesh > Welded Wire Mesh > Galvanized Welded Gabion Box

Galvanized Welded Gabion Box

Name: Galvanized Welded Gabion Box
Brand: Yuansheng
SKU: 139199683

Galvanized Welded Gabion Box thumbnail-1

US$ 5 - 11 MOQ: 1000 Sets

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Yuansheng

Model Number:

YS-S-553

Contact Supplier Request Quote Chat Now

Anping Yuansheng Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Yuansheng

Model Number YS-S-553

Material Other, Galvanized Iron Wire, Galvanized Iron Wire

Type Electric Wire Mesh

Application Gabions

Hole Shape Square

Aperture 0.5-4MM

Wire Gauge 2-4mm

Galvanized welded gabion box

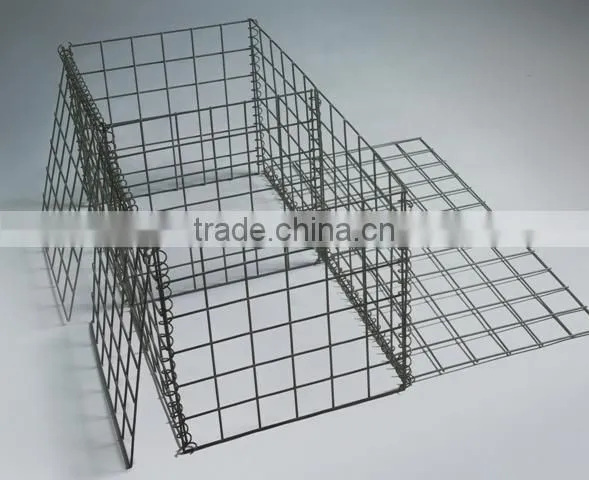

Concertainer Gabions are wire mesh baskets formed by connecting individual panels of mesh with helical spirals on the vertical edge wires creating an open series of box compartments that fold in a concertina fashion to be flat packed. Lids and bases are sometimes supplied loose with helical spiral binders to connect the top and bottom of the open cells along one edge. Alternatively they may be factory fitted where practical for transportation purposes.

General Information

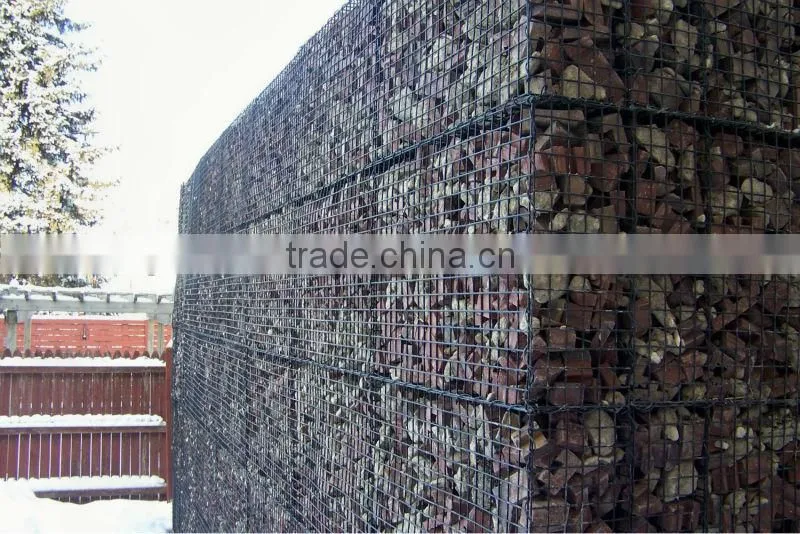

Gabions are engineered retaining structures designed as mass gravity walls to hold back earth or other solid materials with out overturning, sliding or foundation failure. All designed, gabion walls should be checked by a suitably qualified structural engineer on site prior to construction.

The modular structure of these walls allows for variation in section to be accommodated as the height increases. The inherent strength of the units ensures structural and dimensional stability whilst a degree of flexibility accommodates ground movement and settlement where necessary.

Such structures are normally built at an inclination of 6 degrees and with a stepped front face depending upon individual requirements.

To facilitate the ease of filling and aesthetic appearance to the structure, the mesh fabric is available in a range of wire diameters to suit the given application.

It is common practice to vegetate gabion walls after construction with trailing plants placed at the toe, rear or on the steps of the wall.

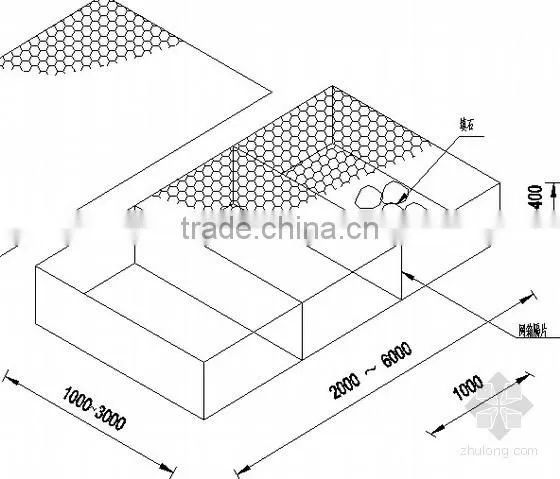

Nominal sizes of standard Concertainer Gabions

Length (m)	Width (m)	Height (m)
1.0	1.0	0.5 or 1.0
1.5	1.0	0.5 or 1.0
2.0	1.0	0.5 or 1.0
3.0	1.0	0.5 or 1.0
4.0	1.0	0.5 or 1.0
5.0	1.0	0.5 or 1.0

This table refers to the industry standard unit sizes; non-standard unit sizes are available in dimensions of multiples of the mesh opening.

Material Specification

Zincalu Super Coated

Mesh aperture	Wire diameter	Corrosion Protection	Durability
76.2 mm x 76.2 mm	3 mm or 4.55 mm	Zincalu Super 350 g/m2 ave. minimum	> 70 Years in a mild environment
References	BS 1052	BS EN 10244 - 2	BBA Certificate no.s 00/3683

Plastic Coated

Mesh aperture	Wire diameter	Corrosion Protection	PVC	Stainless Steel	Durability
76.2 mm x 76.2 mm	2.7 mm ID 3.20 mm OD or 3.80 mm ID 4.30 mm OD	Galvanised 240 g/m2 min. with a bonded PVC coating of nominal 0.25 mm thickness	Colour Grey: RAL 7037	2.00 mm Type 304 S31	> 120 Years in a mild environment
References	BS 1052	BS EN 10244 - 2		BS 1554	BBA Certificate no.s 00/3683
