Security Screen

US$ 4.6 - 12.9 MOQ: 100 Square Meters

Key Specifications

Place of Origin:

Hebei, China

Material:

Stainless Steel Wire

Type:

Weave Wire Mesh

Anping Yuansheng Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjn

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Material Stainless Steel Wire

Type Weave Wire Mesh

Application Protecting Mesh

Weave Style Plain Weave

Wire Diameter 0.8MM-1.2MM

Technique Woven

Model Number ys110

Brand Name YS

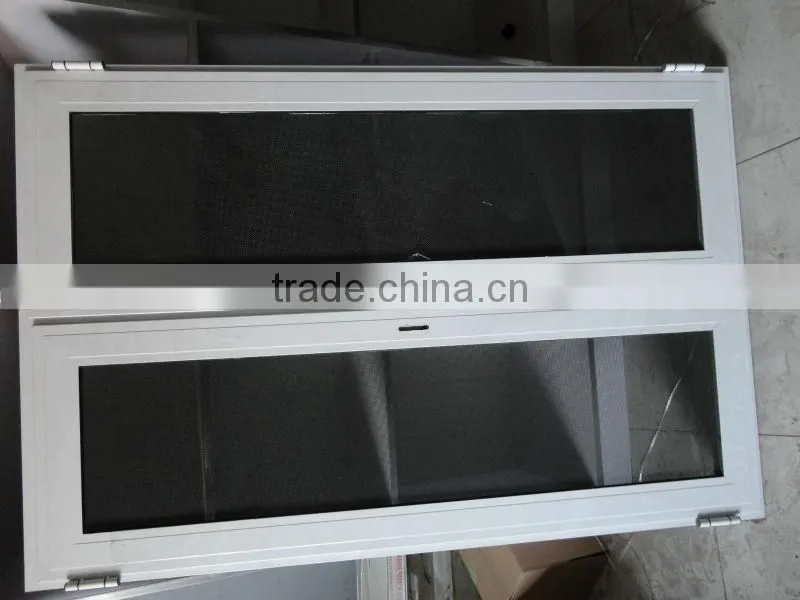

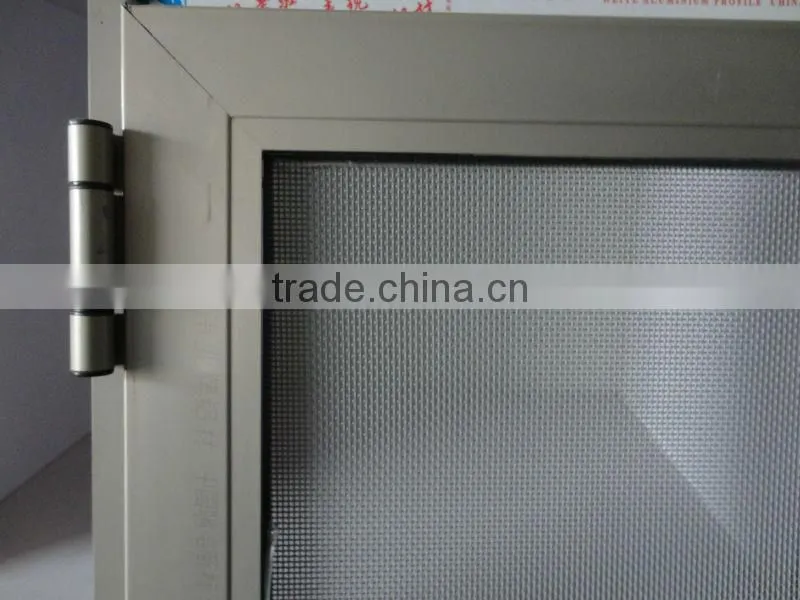

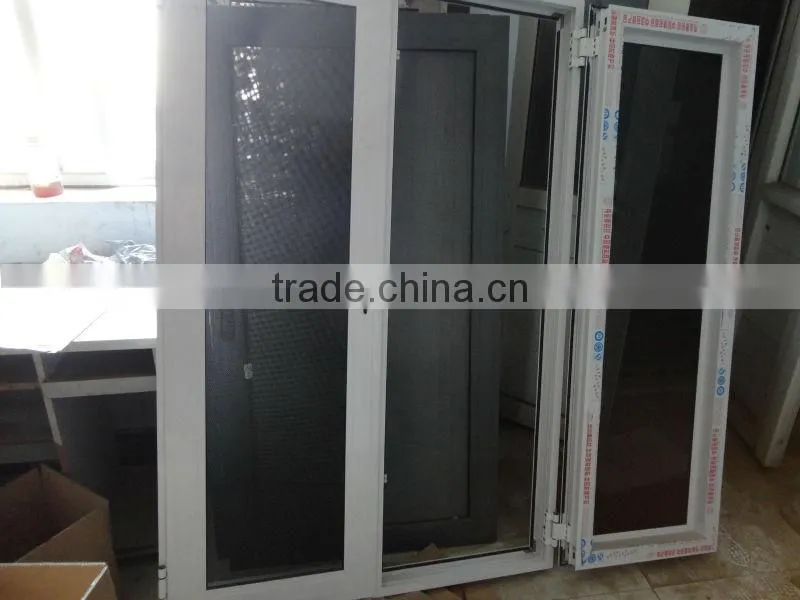

security screen

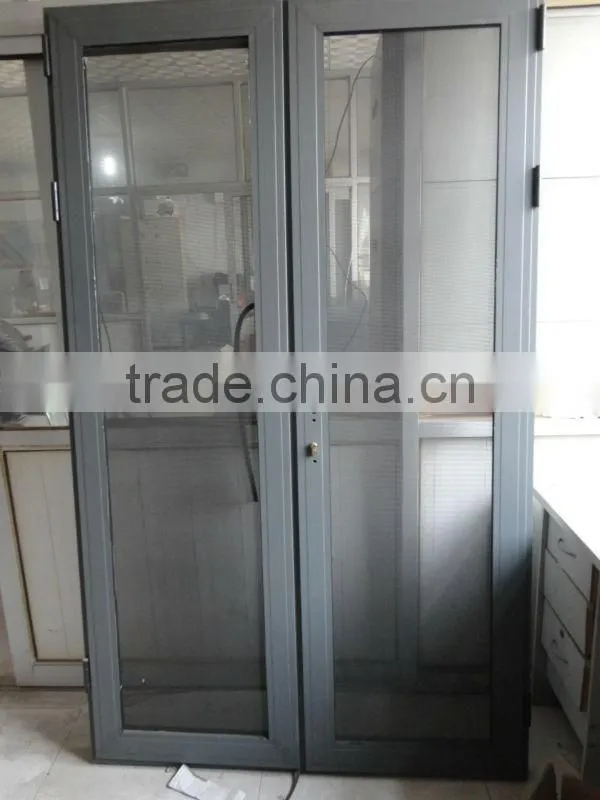

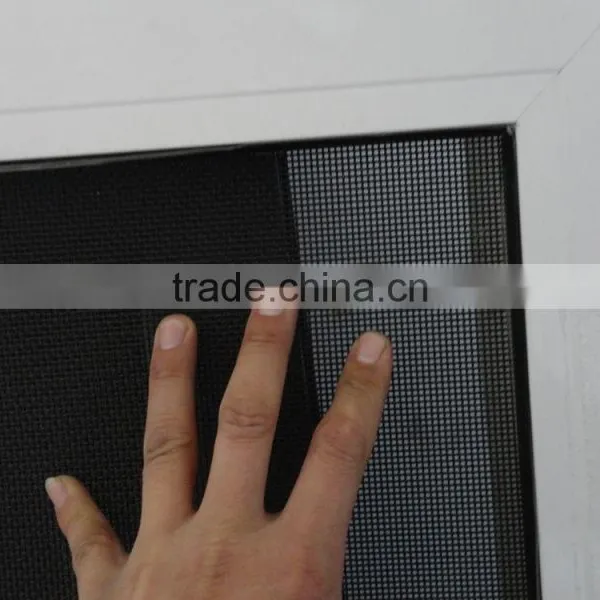

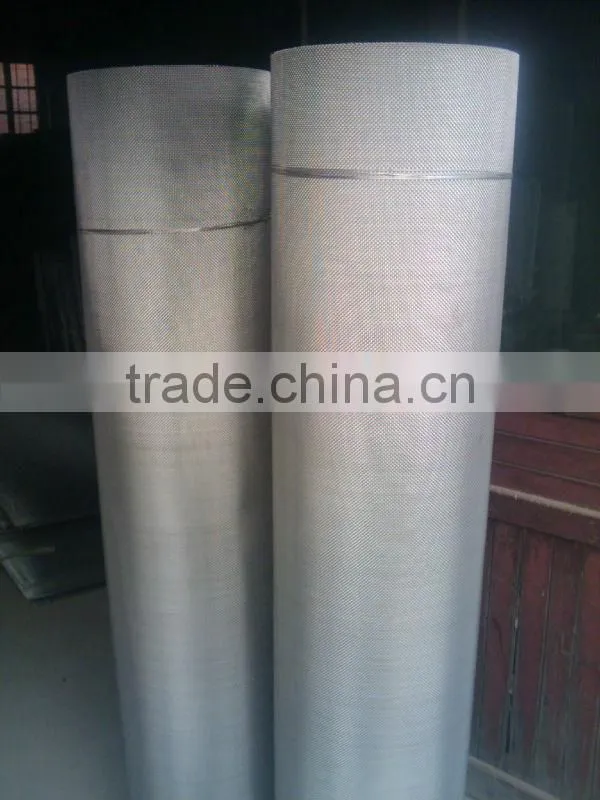

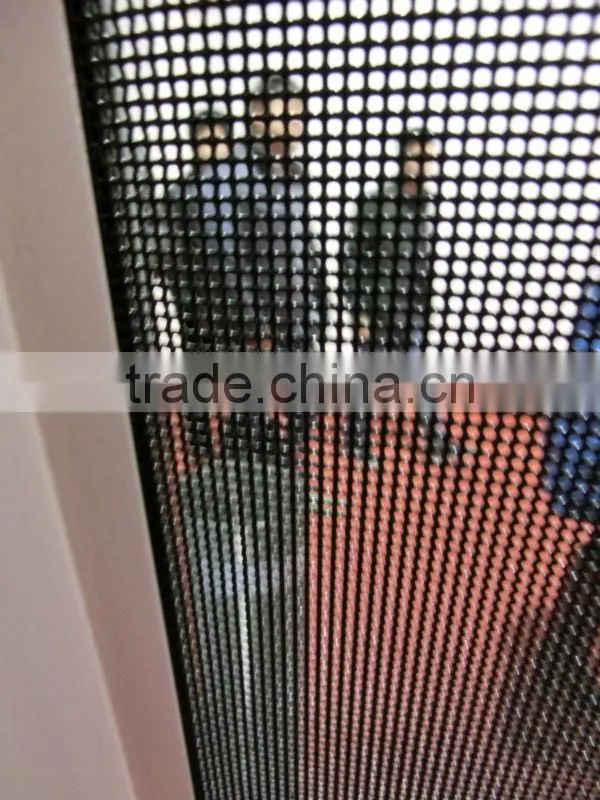

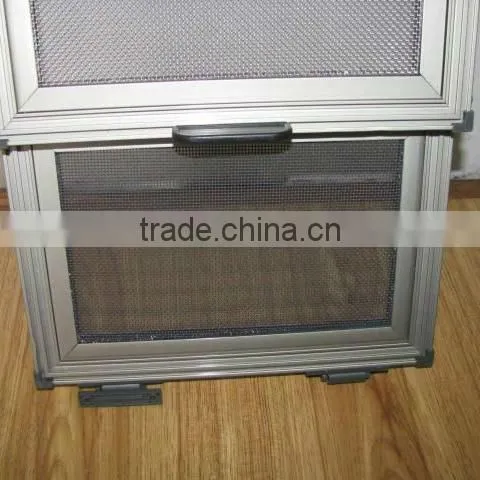

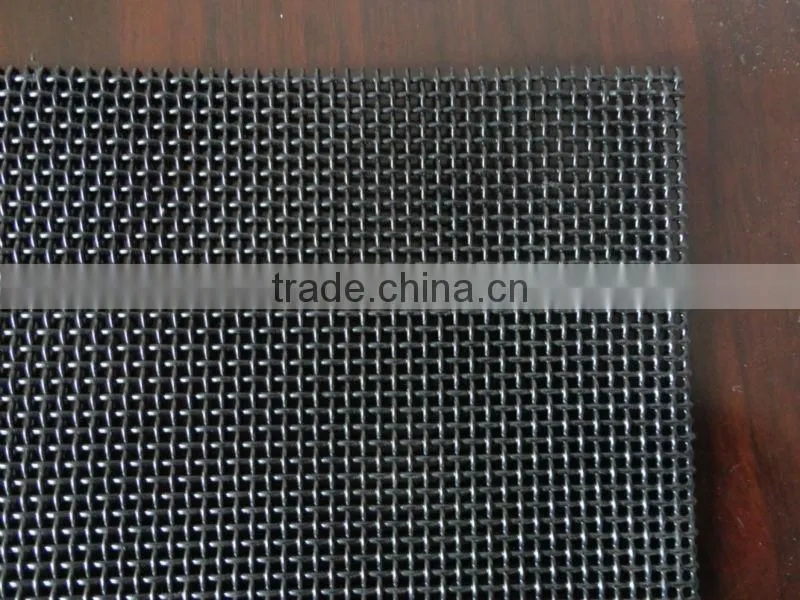

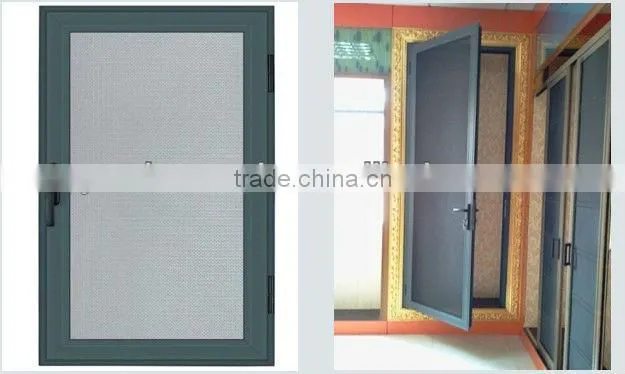

We supply the stainless steel mesh, carbon steel mesh to manufacture security door and window screen.

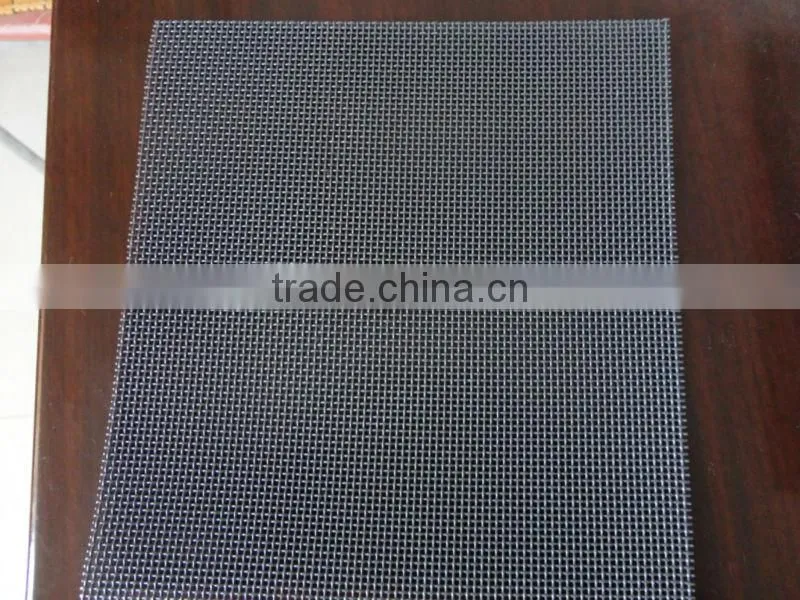

1. Products info:

1) Material: stainless steel 302,ss304, ss316, ss316L mesh, carbon steel mesh

2) Mesh: Mesh: 10x10mesh.11x11mesh, 12x12 mesh, etc.

3) Wire diameter: 0.80mm, 0.90mm, 1.0mm, etc.

4) Size: 750x1500/2000/2400mm, 900x1500/2000/2400m, 1200x1500/2000/2400mm, etc.

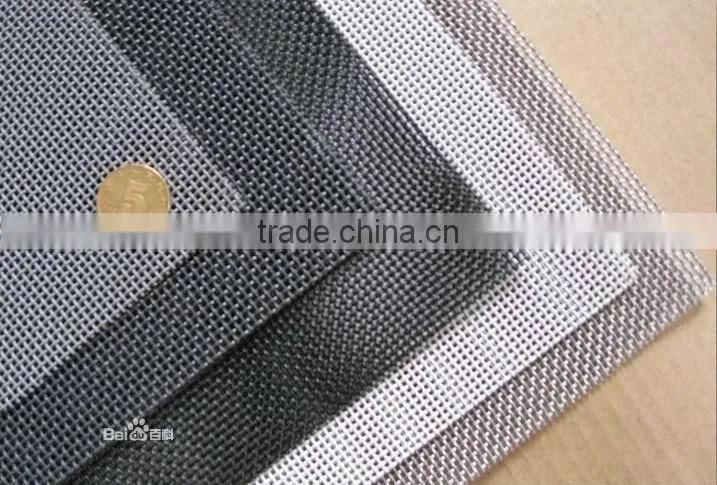

2. Finish: black powder coated, grey powder coated , etc.

Chemical composition of stainless steel wire:
Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=1.00	=2.00	=0.045	=0.030	8.00~10.50	18.00~20.00	-
304L	=0.030	=1.00	=2.00	=0.045	=0.030	9.00~13.50	18.00~20.00	-
316	=0.045	=1.00	=2.00	=0.045	=0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=0.030	=1.00	=2.00	=0.045	=0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=0.12	=0.75	=1.00	=0.040	=0.030	=0.60	16.00~18.00	-
430A	=0.06	=0.50	=0.50	=0.030	=0.50	=0.25	14.00~17.00	-

Special specifications can be produced by the customer's requirements.

Sepecifications:

Material	Mesh per inch	Wire Dia Mm / inch	Open (mm)	Open Area	Market Area
SS 316 or 304	10 x 10	0.9mm /0.035"	1.64	41.7	Australia America Europe
SS 316 or 304	10 x 10	1.2mm /0.028"	1.34	27.8
SS 316 or 304	10 x 10	0.8mm / 0.032"	1.74	46.9
SS 316 or 304	10 x 10	1.15mm / 0.045"	1.39	29.9
SS 316 or 304	11 x 11	0.8mm /0.032"	1.5	42.5
SS 316 or 304	11 x 11	0.7mm / 0.027"	1.6	48.3
SS 316 or 304	12 x 12	0.7mm / 0.027"	1.42	44.8
SS 316 or 304	12 x 12	0.58mm / 0.023"	1.54	52.8
Special mesh can be made according to customers requirement
