Welded Wire Mesh (30 Years Factory)

US$ 4.9 - 19.9 MOQ: 1 Roll

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

YS-S-277

Anping Yuansheng Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name YS

Model Number YS-S-277

Frame Material Metal

Metal Type Steel

Frame Finishing Other, hot dipped galvanized, cold dipped galvanized, PVC coated

Feature Easily Assembled, Eco Friendly, Renewable Sources, Rodent Proof, Rot Proof, Waterproof

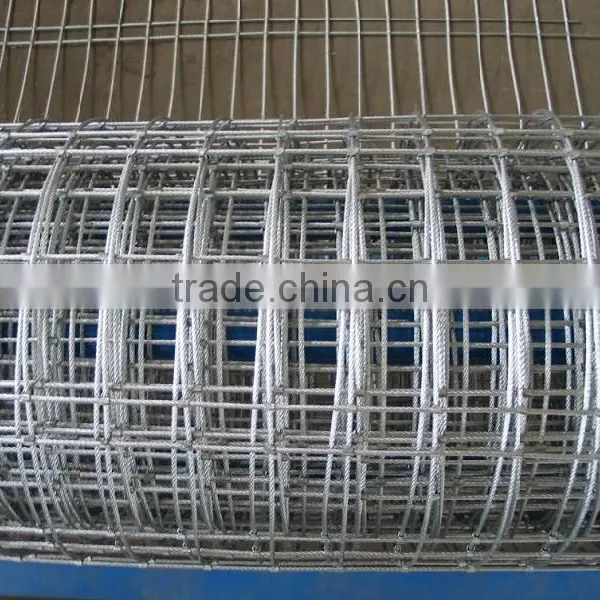

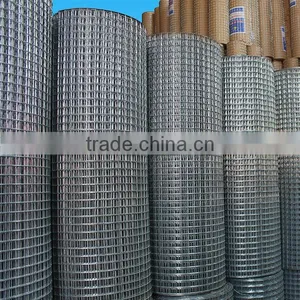

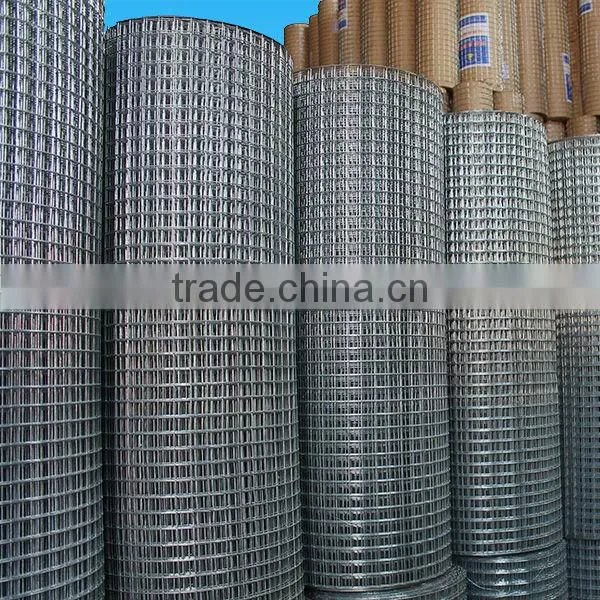

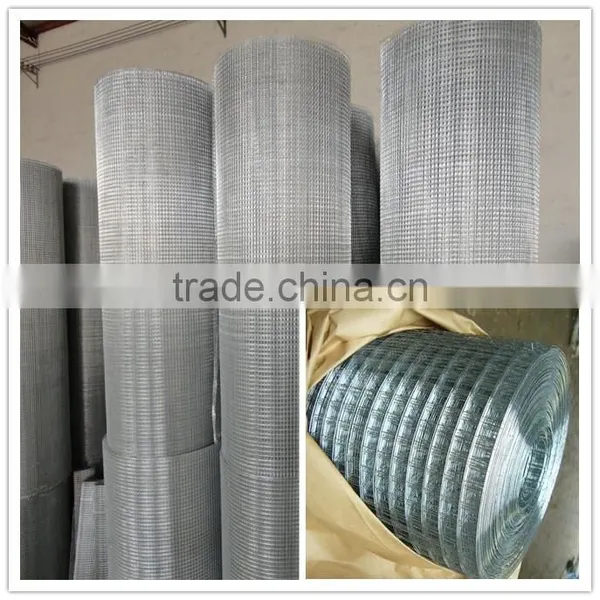

welded wire mesh (30 years factory)

welded wire mesh introduction

materials: high quality low carbon steel wire, galvanized stainless steel wire or PVC coated wire

surface treatment: hot dipped galvanizing before or after welding electric galvanizing before or after welding PVC coated welded wire mesh

gauge: BWG12 to BWG24
mesh: 3/8", 5/8", 1/4", 1/2", 3/4", 1"

length: 10 to 100 meters

characteristics: strong antisepsis and contradicting oxygenation

usage: widely used in industry, agriculture, construction, transportation and mining as protection cover, fender, basket etc.

packing: moister-proof paper, PVC film, nude packed

Galvanized Welded Wire Mesh
Mesh Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Note: 1.Standard roll length: 30m; Width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at the customer request.

PVC Coated Welded Mesh
Mesh Opening		Wire Diameter <BWG>
In inch	In metric unit(mm)	Wire Diameter <BWG>
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Note: 1. Standard roll length: 30m; Width: 0.5m to 1.2m 2. Special sizes available at request 3. Packing: in waterproof paper in rolls. Custom packing available at request
