Specifications
Alien authorized agentEPC Gen 2 compliant
ISO/IEC 18000-6C compliant
Worldwide RFID UHF operation (840-960MHz)
Higgs-3 IC
Best sale passive Alien 9662 inlay adhesive tag alien h3 chip
Product Name: ALN-9662 Short Inlay / UHF RFID Wet/Dry Inlay / 860--960MHz UHF Long Range Passive RFID Tag
The Alien Technology® ALN-9662 “Short” RFID inlay is a narrower version of its high-performance, general-purpose Squiggle sibling.
Applications of UHF Long Range Passive RFID Tag ALN-9662
• Asset management
• File folder labels
• Shipping labels
• Corrugate cases
• Pallet cards
• Apparel hang tags
• Application on plastics
Details of of UHF Long Range Passive RFID Tag ALN-9662 Dry Inlay
Antenna Width |
2.756” [70mm] |
Antenna Length |
0.669” [17mm] |
Web Width (-FRA) |
3.25” [82.5mm] |
Web Width (-FSRA) |
2.89” [73.5mm] |
Web Pitch |
1.0” [25.4mm] |
Core Width (-FRA) |
3.25” [82.5mm] |
Core Width (-FSRA) |
2.89” [73.5mm] |
Core ID |
6” [152.4mm]* |
Core Material |
Fiberboard |
Interleaf Material |
Paper |
Interleaf Width |
1.5” [38.1mm] |
Inlays per Roll |
12,500 Nominal |
Maximum Roll OD |
< 12” [304.8mm] |
Roll Labeling Data |
Roll #, Quantity |
Details of of UHF Long Range Passive RFID Tag ALN-9662 Wet Inlay
Inlay Width |
2.89” [73.5mm] |
Inlay Length |
0.835” [21.2mm] |
Web Width (FWRWA) |
3.02” [76.7mm] |
Web Pitch |
1.0” [25.4mm] |
Core Width |
2.89” [73.5mm] |
Core ID |
6” [152.4mm]* |
Core Material |
Fiberboard |
Inlays per Roll |
12,500 Nominal |
Maximum Roll OD |
< 16” [406.4mm] |
Roll Labeling Data |
Roll #, Quantity |
Overlay (-FWRWA) |
TT Printable White Film Overlay |
Overlay Adhesive (-FWRWA) |
General Purpose Permanent |
Inlay Adhesive |
General Purpose Permanent |
Adhesive Application Temperature |
> +25ºF [-4ºC] |
Adhesive Service Temperature |
-40ºF to +200ºF [-40ºC to +93.3ºC] |
Release Liner |
40# SCK |
Environmental
Shelf Life |
2 years at +77°F [+25°C] @ 40%RH |
Recommended Storage |
+77ºF [+25°C] @ 40% RH |
Storage Limits |
-13°F to 122°F [-25°C to +50°C] 20% to 90% RH Non-condensing |
Operating Limits |
-40°F to +158°F [-40°C to +70°C] 20% to 90% RH Non-condensing |
Bend Diameter |
> 1.97” [50mm] |
Pressure |
< 5N/mm2 |
Drop Resistance |
Per ASTM D5276 |
Write Cycles |
100,000 @ 25°C |
RoHs |
2002/95/EC, 2005/618/EC, 2011/65/EU Compliant |
REACH |
1907/2006/EC Compliant |
ESD Limit– HBM / CDM |
5.0kV / 1.5kV |
RFID
Protocols Supported |
ISO/IEC 18000-6C EPCglobal Class 1 Gen 2 |
Integrated Circuit |
Alien Higgs-3 |
EPCglobal Certificate |
950110126000001084 |
Operating Frequency |
840--960 MHz |
EPC Size |
96--480 Bits |
User Memory |
512 Bits |
TID |
32 Bits |
Unique TID |
64 Bits |
Access Password |
32 Bits |
Kill Password |
32 Bits |

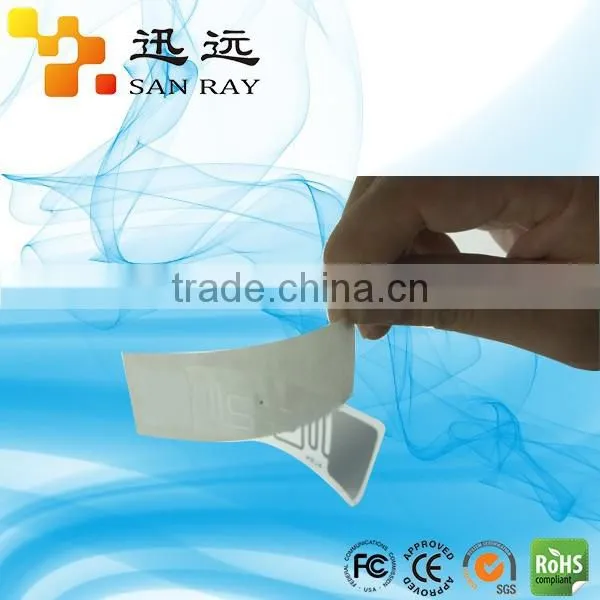

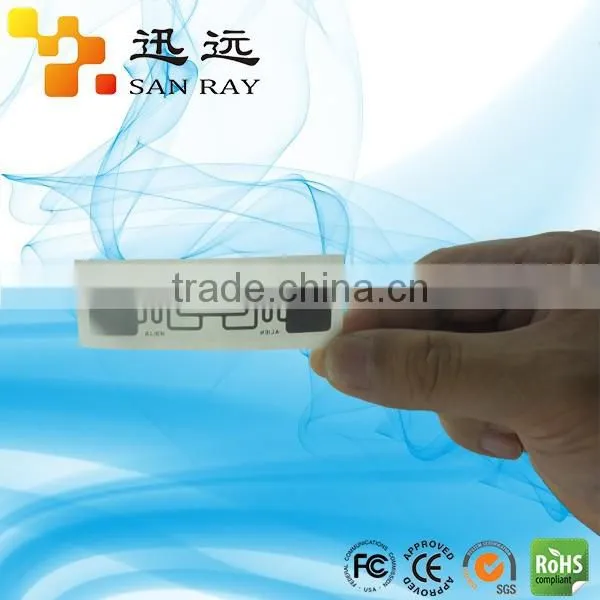

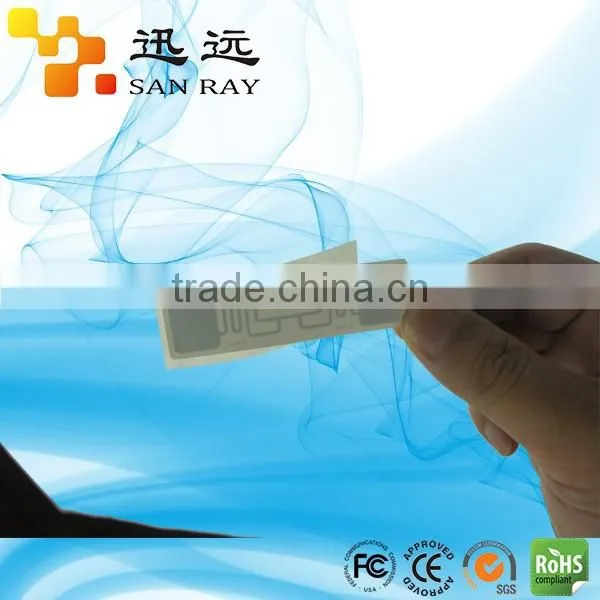

Shows of of UHF Long Range Passive RFID Tag ALN-9662
We also have different kinds of UHF RFID devices, such as modules, readers, antennas, inlays, metal tags, etc.. Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
