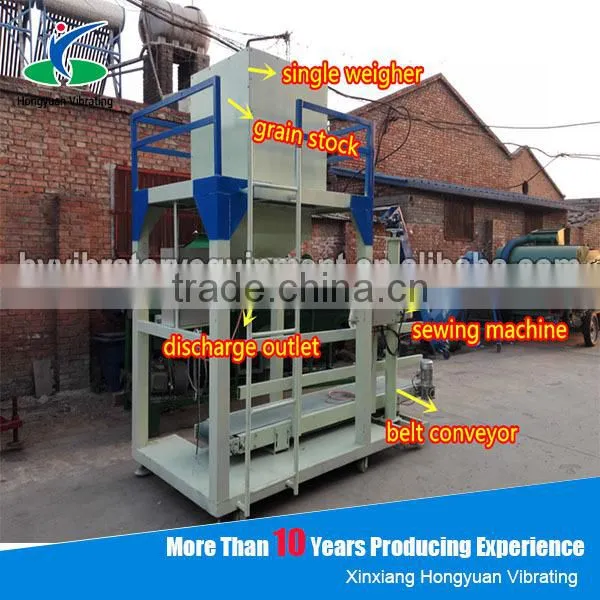

Henan Xinxiang high speed sand bagging machine for construction
The DCS series high speed bagging machine is one kind of automatic weighing and packing machine suitable for the pellet or particles materials in the sugar,salt, feed, food, grain, chemical industry For example, pellet wholesome material, corn, rice, wheat and grainy seed, medicine, etc. The packing weight can be rated from 5kg~80kg as per your demand.
1.Fully automatic and continuous, and easy to connect with other processing machinery;
2.Combined many functions into one: Conveying materials - Weighing materials - Making bags -Filling materials - Filling air or nitrogen (needs additional Air compressor or Nitrogen Generator)
3.Sealing bag - Printing date & code - Making holes - Conveying final bags;
4.PLC and touch screen control;
5.High precision with weight error of 0.3-1.5g;
6.High efficiency without crashing the materials;
Many kinds of compound film can be used, like BOPP/CPP, OPP/VMCPP. BOPP/PE
Model |
DCS-10 |
DCS-25 |
DCS-50 |
Rated Packing Weight(kg) |
1-10 |
10-25 |
10-50 |
Division Value(g) |
2 |
5 |
10 |
Packing Accuracy |
X(0.2) |
X(0.1) |
X(0.1) |
Packing Speed(bag/h) |
300-420 |
300-600 |
300-420 |
Power |
AC220 150W |
||
Air |
Compressed Air0.4-0.8MPa 1m³/h |
||
Note : Customized for standard size is available, other size is as per your requirements.
Compared with the traditional way for packing
It used to quantitative automatic weighing,measuring, filling, sealing of the loose nonstick granular stuffs in the feed , food , grain , chemical fertilizer industry .( such as pellet wholesome material , corn , rice , wheat and grainy seeds , feed , chinese herbal medicine and chemical materical , etc. )
1.Stretch Film inside for water corrosion and fumigation wooden box for outside packing.
2.Loading to the container.
1.Bucket elevator, click to know more information about it.
2.Belt conveyor, click to know more information about it.
3.Grain cleaning machine and screening machine, click to know more information about it.
4. Hongyuan main products, click to know more information about our company.
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and nonvibrating screen equipment,
conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibratingconveyor,
magnetic conveyor, highpressure conveyor and so on), as well as elevating equipment
(TD series elevator, NE series elevator, vertical elevator and highpressure elevator). Grain cleaning machine, grain polishing machine, grain packaging machine etc.
1. Materials to be filled and packed?
2. Unit bags weight? (kg/bags)
3. Filling capacity? (bags/hour)
4. Local power supply? (voltage and frequency)
