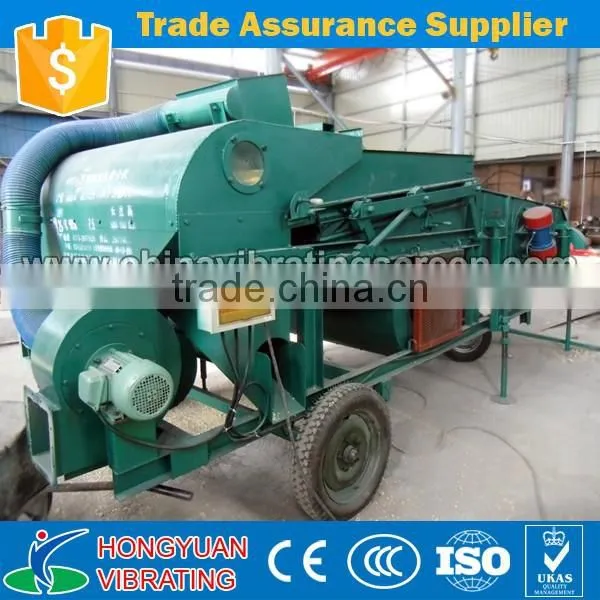

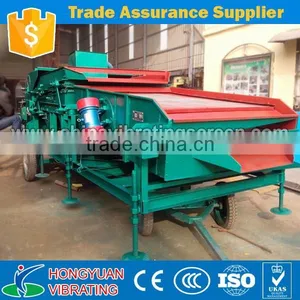

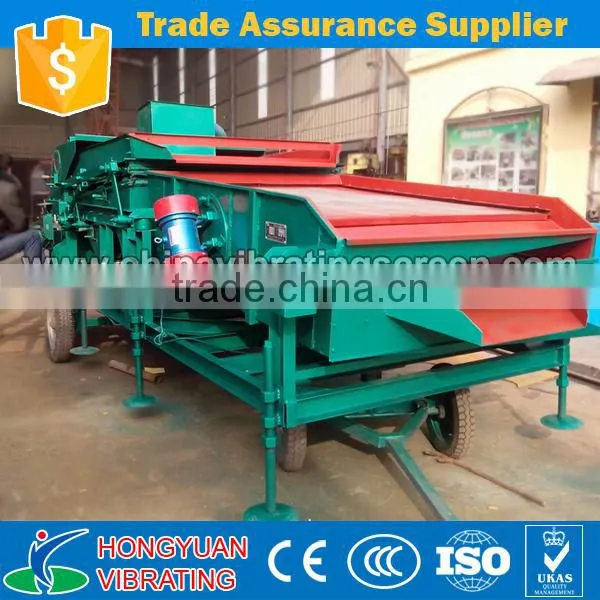

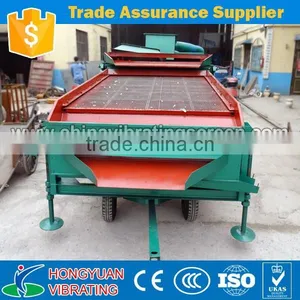

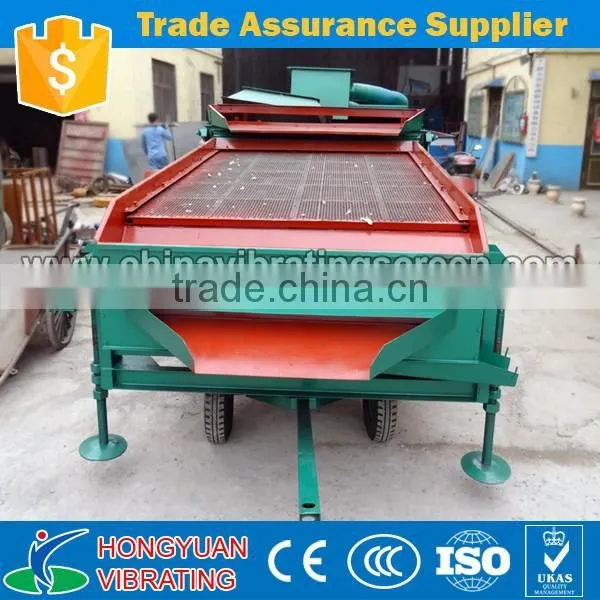

Grain Cleaning And Sieving Machine for pumpkin seed

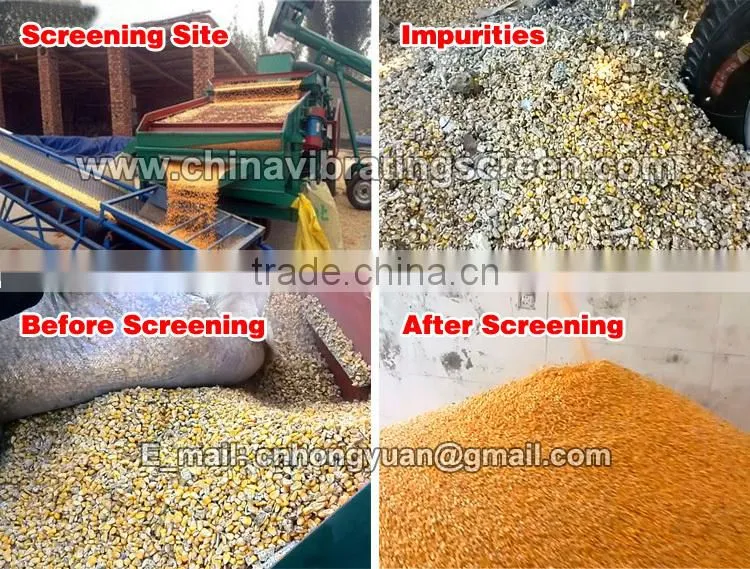

There are three layers of sieve bottom of this machine. At first,the front screen will sort out the dust and samilar impurities. Then the main fan will select at last part. After the grains finished cleaning, it will be casted out by Grain Casting Machine to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. First layer is for the big impurity, second layer for small impurity, three layer is for half a grain, and fourth layer for sand etc.
This new type grain winnowing machine is suitable for grains,corns,wheat,sorghums,millets,rapeseeds,sunflower seeds,beans and so on .It is widely applied in the livestock breeding, small farm, small feed producing company,grain and cooking oil processing factory,wind plant,chemical plant and pharmaceutical factory etc.
1.With wheels , it is very easy to move .
3.The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.
4.Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or throwing demand.

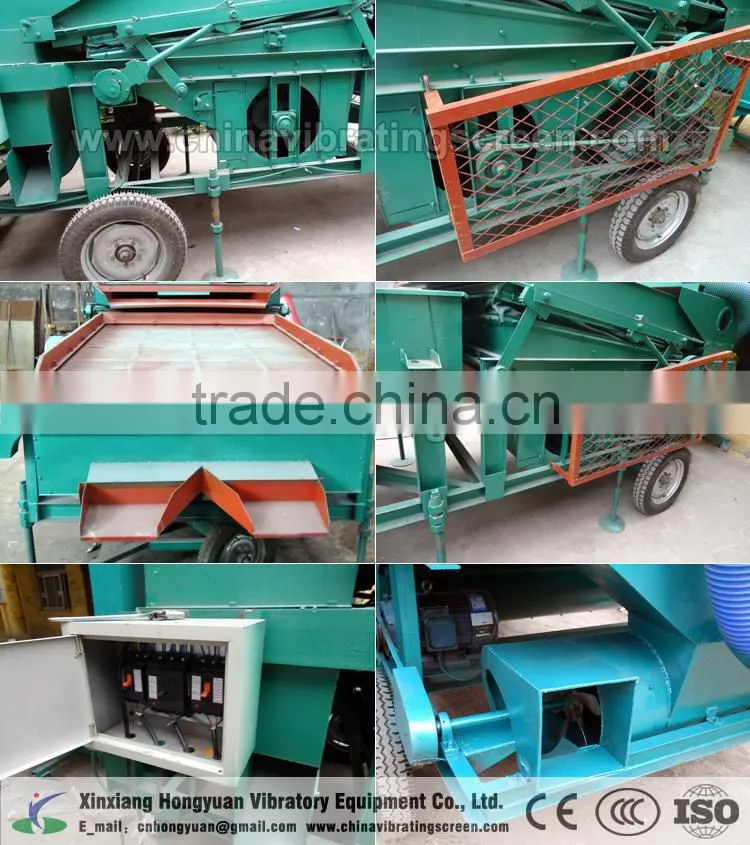

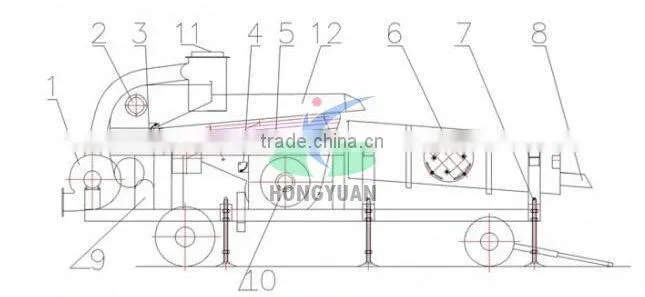

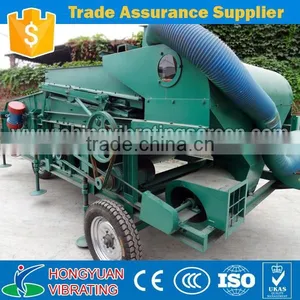

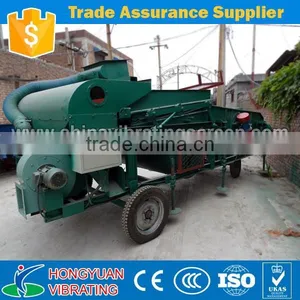

1. Dust removing blower 2.Observation hole 3.Plate 4. Adjust the air pressure 5. Adjust the propotion of screen volume 6.Vibrating Motor 7. Adjust the height 8. Finished grain outlet
9. Coarse cereals outlet 10. Main air blower 12. Separation platform
Model No |
Dimensions(mm) |
Weight(T) |
Power(kw) |
Revolving speed(R/min) |
Rotating speed(r/min) |
suction ventilator(r/min) |
Angle Gravity platform |
Angle of Screening |
Amplitude(mm) |
Capacity(T/H) |
HYL-25-Ⅲ |
5010X2100X1950 |
1.98 |
7.5 |
1440 |
800 |
1450 |
63℃ |
33℃ |
24 |
≤20 |
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and highpressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Maybe you will interested in the following products
Note:
The HYL-25-Ⅲ grain seed screen cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc

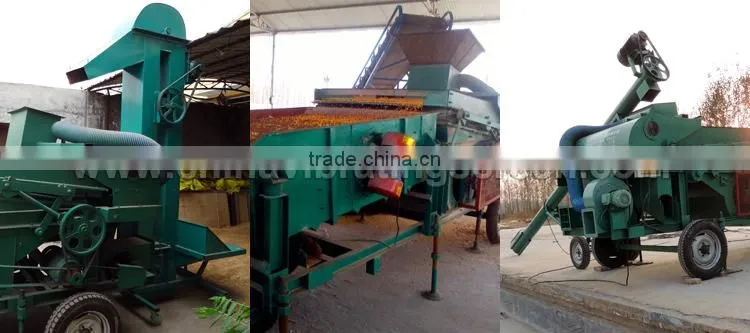

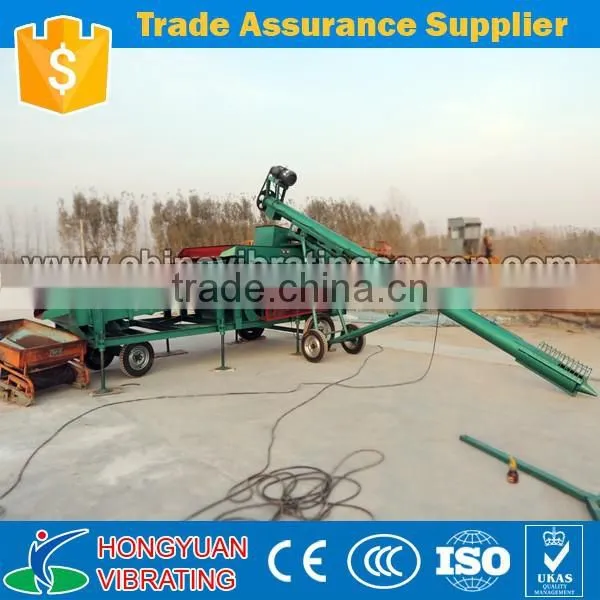

Feeding ways:1. bucket elevator;2. mobile conveyor belt ;3. mobile screw conveyor.
1.Q: How can I get a suitable model?
A: Pls tell me your material and your purpose to use the machine as well as your capacity.
2.Q: Can I choose my favorite color?
A: Yes, any color you want is acceptable.
Any questions or problems, feel free to contact Cathy at any time, you can write down the questions or answers under the block, I will reply you in 24 hours.
