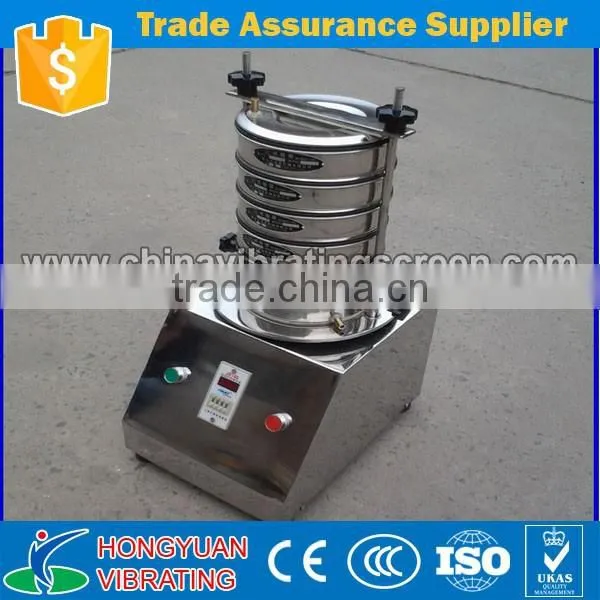

Vibrating test sieve shaker with factory price

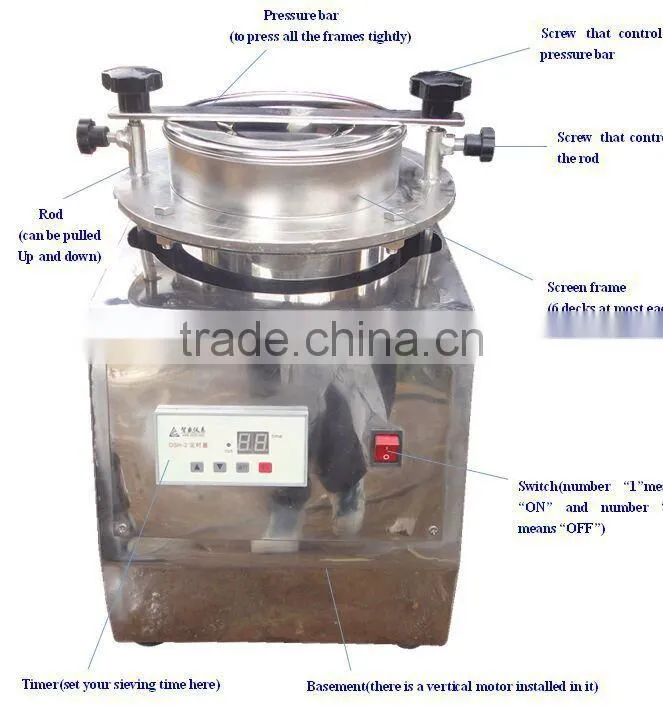

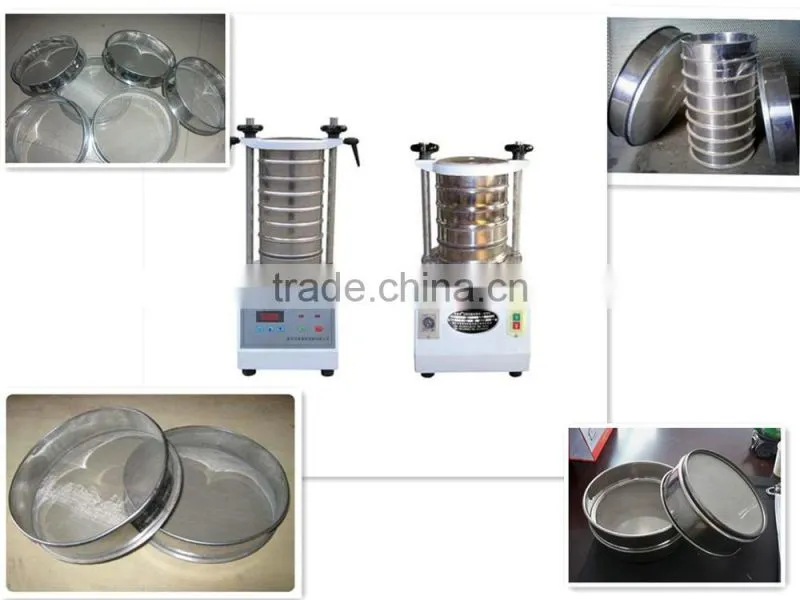

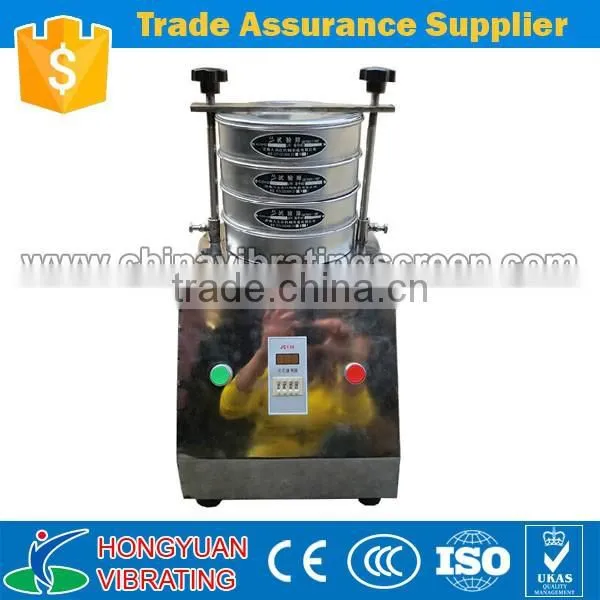

BZS - 200 standard test sieve is a vibration motor as vibration source, vibration motor drive the vibration sieve machie base, through the base to put at the base of the standard test on the screen, to make them less than the test sieve sieve escapes hole material particles test sieve sieve into the lower level, so the screening, each layer test only stay in the same particle size of materials.Achieve the separation of different particle size and the grain size composition of the material were determined.In the test sieve material can effectively screening and classification, filtering purposes.Also be test sieve, sieve analysis, sample points screen, etc.
1, high efficiency, refined design, duration, any powders, liquids screening.
2, small volume, does not occupy a space makes it move easily.

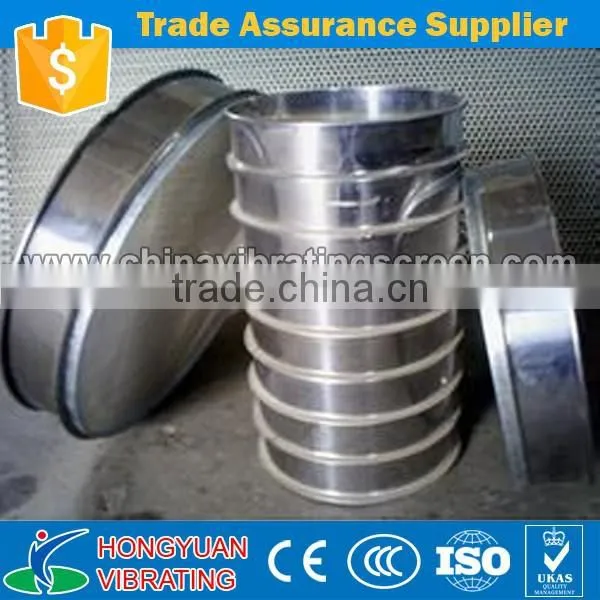

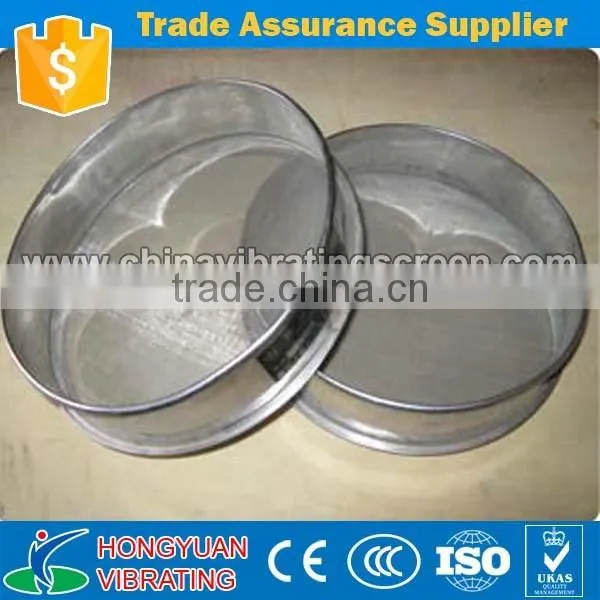

3 test sieve, sieve machine can be placed eight highest layer (including the bottom of the screen), can be a kind of granular material precision to separate 2 ~ 7 segment of particles at the same time.
4, can be regular automatic shutdown
5, guarantee the experimental repeatability, full functions and simple operation
6, the noise is small, light weight;
7, platform operation, need not fixed.
8 and amplitude can be adjusted
| No. | Name | Unit | Parameter |
| 1 | Sieve Demeter | mm | φ200/φ100/φ75 |
| 2 | Sieve Size | mm | 0.025~3 |
| 3 | Moter Power | KW | 0.12(ordinary motor:0.15 ) |
| 4 | Noise Sound | dB | <50 |
| 5 | Amplitude | mm | 0~3 |
| 6 | Vibrating Frequency | times/min | 1400 |
| 7 | Shape Size | mm | 350:380:300+N*50 |
| 8 | Power Source | V:HZ | 220:50 |
| 9 | Weight | KG | 35 |
Widely used in food, medicine, chemical, abrasive, pigment, mine, metallurgy, geology, pottery and porcelain, defense and other industries, scientific research units, laboratories, inspection room production control for solid, powder, slurry material and other materials such as inspection, screening, grading, granularity analysis, sundry content analysis, etc.

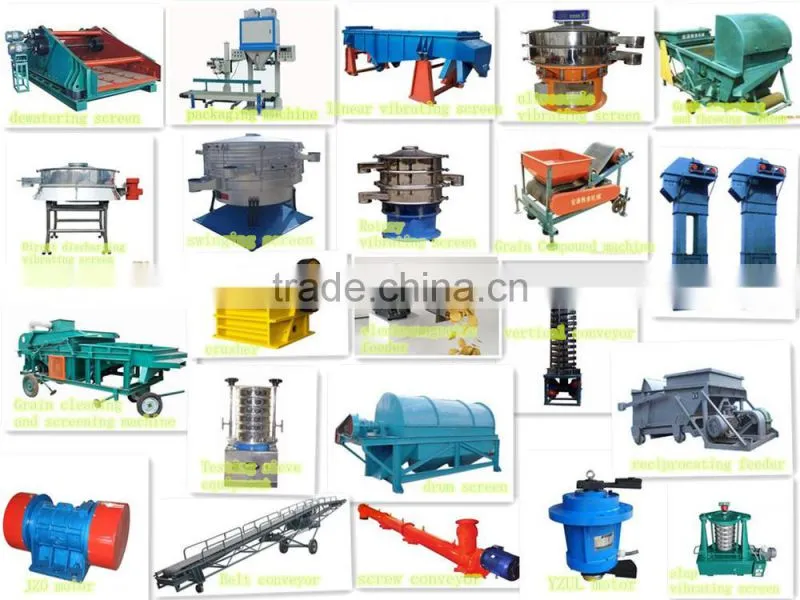

Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
1. what materials do you want to test?
2. How many layers? the screen mesh of each layer?
3.The capacity you require?
4.power condition on your country(220v/380v/440v, 50hz/60hz)
5.the special requirements?
Feel free to contact Cathy at any time, or you can write down the questions or answers under the block.I will reply you ASAP.
