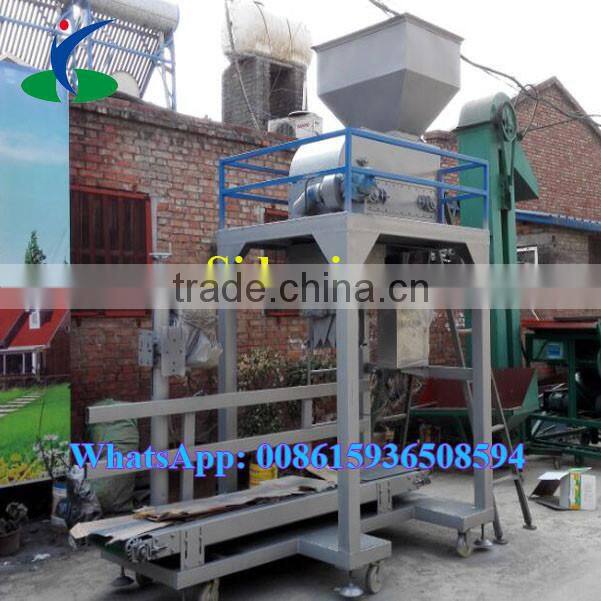

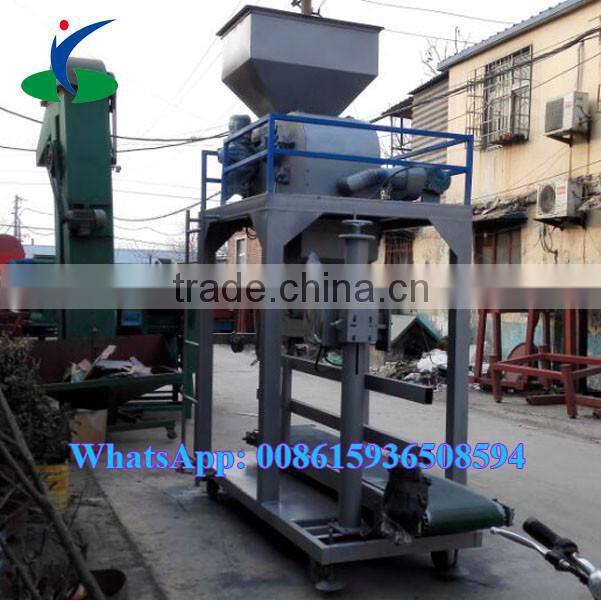

Coal Bagging Filling Weighing Packaging machine / coal bagger Machine
Coal Bagging Filling Weighing Packaging machine / coal bagger Machine is one kind of new types semi automatic multifunctional filling bagging weighing sewing packaging machine for coal briquette, coal pieces, coal granules and powder. The packing weight can be rated from 20kg~120kg as per your demand.It is designed and developed by our own technical team which is cater for the non pollution trending for the environment.(WhatsAPP no:008615936508594)
Technical Data
| Brand: Hongyuan | Model: DCS-50 | Type: Bag forming, filling and sewing machine |
| Common application: coal briquette | Working ways: continuous | Automaticity: Semi-automatic |
| Processing customized: Can be customized | Function: coal briquette packing machine |
Bag size: 500mm |
| Voltage: 380V | Power: 2.2+0.25+0.37+0.009kw | Bag speed: 280 bag/hour |
| Dimension size: 3100*1300*3400 | Granule Size: 0.1-100mm | Weight: 600kg |
| Rated weight: 20-120kg | Air Comsumption: 0.5 m3/h | Packaging filmwidth: 500mm |
1. Main Filling Machine:

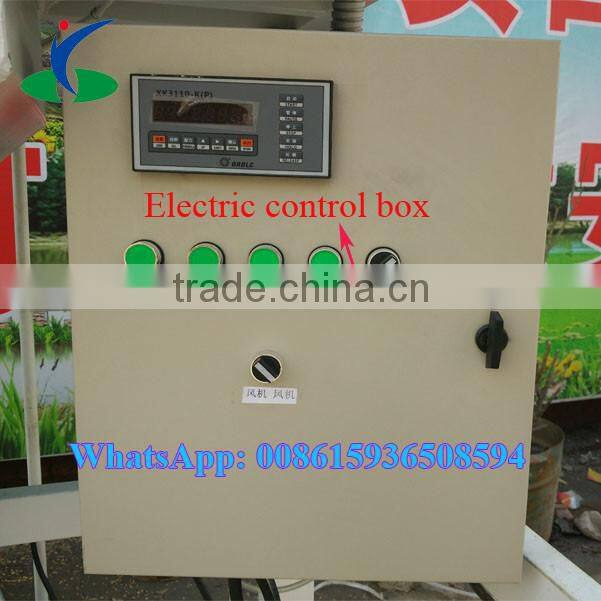

a. display screen with PLC control instrument
b. flowing with vibrating feeding in fast, middle, low speed.
c. Auto memory function of shift capacity, daily capacity, cumulative capacity
d. Auto feeding with Infrared sensor 5. Sensor control the bag clammper
2. Belt Conveyor:
a. Length: 3000mm; b.width: 400mm; c. Speed: 5-20m/min(adjustable); d. max capacity: 15 bag/ min e. Motor:AC380V-- 0.37kw; f. Belt:PVC green belt without interface.
3. Sewing Machine
a. Max sewing thickness:8mm
b.Sewing speed:1700rpm~1800rpm
c.Stitch length: 6.5 mm~11mm
d. Motor power:380v 50hz
e. Can be rise or fall.
|
Adjustable range: 20-120KG, bagging error:±30-200g (The smaller material particles, the smaller error)
|
|

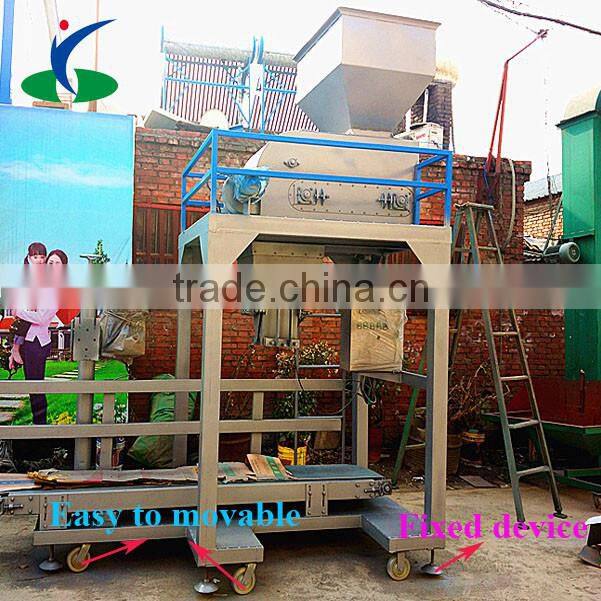

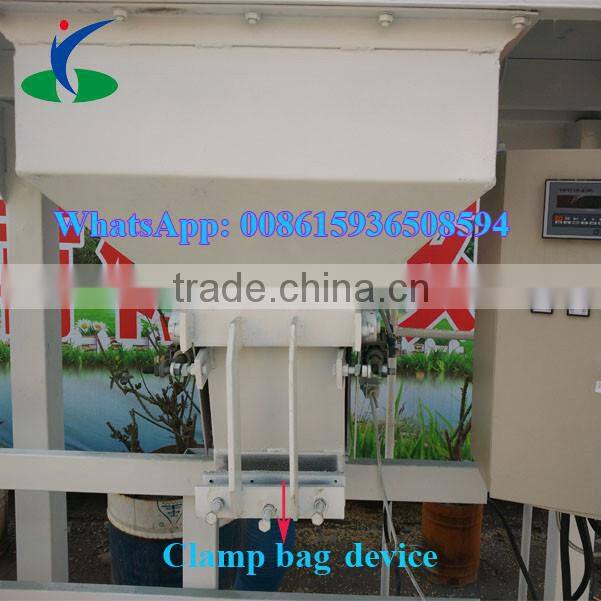

Coal packing machine clampper bag device: put up the bag, automatic weighting, after achieved the rated weight, automatic stop working.
|
|

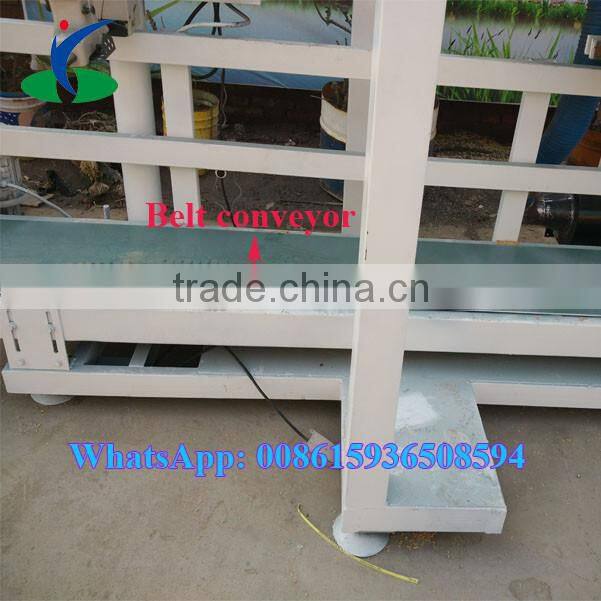

Conveying equipment: After packed the bags will be transmitted through the conveyor to the sewing machine.
|
|

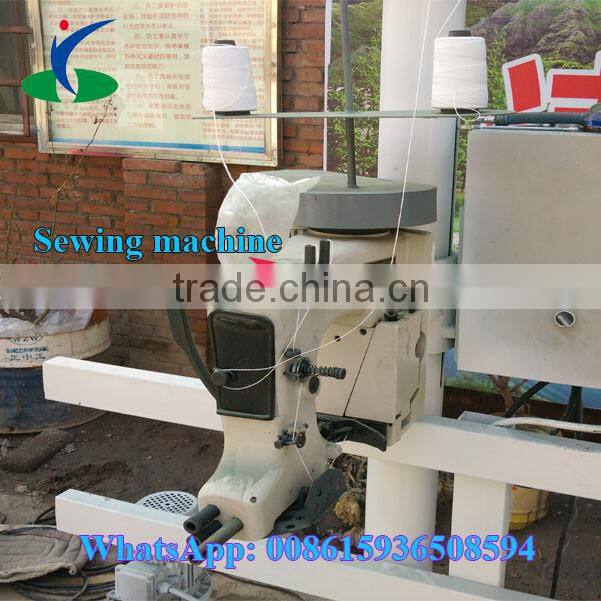

Sewing machine: Sewing speed:1700rpm~1800rpm Stitch length: 6.5 mm~11mm
|
Coal Bagging Filling Weighing Packaging machine / coal bagger Machine is a kind of Semi-automatic machine, It need two person to operate, one man for bagging, one man for sewing, it is very convient for coal plant, coal mine industry.
|

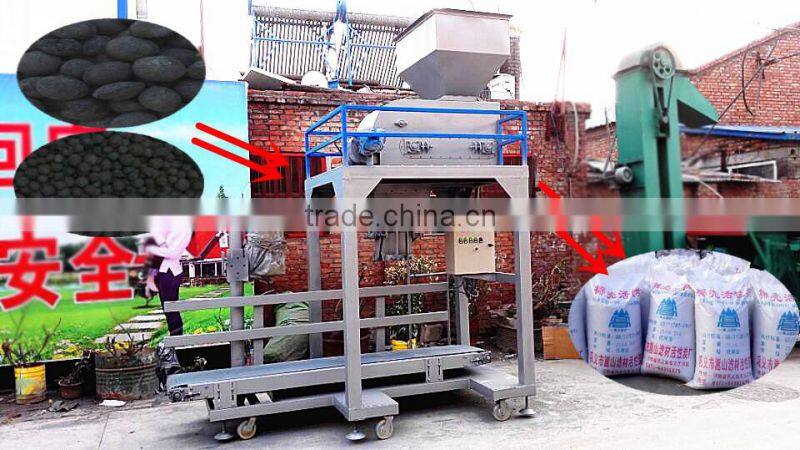

Production site
you can use TD series bucket elevator to elevating the coal briquette, click the image to know more information.
You can also use belt conveyor to conveying the coal to the bagging machine, click the image to know more information.
Do you like these following products? feel free to contact me if you like.
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.The company is
specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen
equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating
conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating
equipment (TD series elevator, NE series elevator, vertical elevator and high pressure
elevator).
Feel free to contact me if you have any questions!
