Help CenterBelt Conveyor Feeding Type Bucket Elevating for Grain Production Line
Related Products
-
Paddy Elevater Bucket for Peddy Seeds and PowderUS$ 1,000 - 10,000MOQ: 1 Set -
Vertical Hopper Bucket Elevator for SaleUS$ 1,000 - 10,000MOQ: 1 Set
-
Powder Bucket Conveyor / Vertical Sand Bucket Elevator / Food Conveying MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
TD Series Mobile Coal Bucket Conveyor Elevator With WheelsUS$ 1,000 - 10,000MOQ: 1 Set
-
NE15 Single Row Plate Chain Wheat Vertical Lifting Small Bucket ElevatorUS$ 2,000 - 3,500MOQ: 1 Set
Bucket Elevators transfer bulk materials vertically from one location to another. Inlet can be flooded or control fed Volumetric transfer device.
Technical Reference
| Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
| Hopper type | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd | Q | h | zD | Sd |
| Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
| Hopper width (mm) | 160 | 250 | 315 | 400 | ||||||||||||
| Hopper volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
| Hopper distance (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
| Belt width (mm) | 200 | 300 | 400 | 500 | ||||||||||||
| Hopper speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
| Max granule(mm) | 25 | 35 | 45 | 55 | ||||||||||||
| Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
| Hopper type | Q | h | zD | Sd | h | zD | Sd | Q | S | Q | S | Q | S | Q | S | |
| Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
| Hopper width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
| Hopper volume(L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
| Hopper distance (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
| Belt width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
| Hopper speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
| Max granule (mm) | 60 | 70 | 25 | 35 | 45 | 55 | ||||||||||
It has two kinds of materials: Stainless steel and carbon steel, it according to your requirements and design for you.

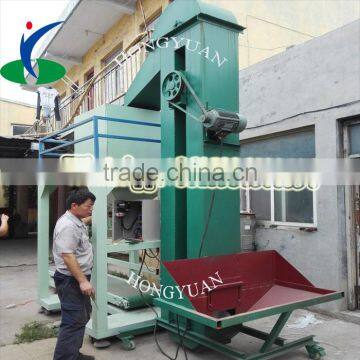

Belt conveyor feeding type bucket elevating for grain production line adopts material flow trough feeding way. when the material feed into the bucket, and belt bucket willl lift to the machine top and than automatically discharging the material by the gravity function.
Shipping by standard export wooden boxes.
1.bagging and weighting machine, click to know more information.
2. grain cleaning and sieving machine, click to know more information
The other main products in our company:
1.What is our product range?
Our company is specialized in manufacturing screening equipment, such as Round Vibrating Sieve, Linear Screening Machine, Laboratory Test Sieve, Ultrasonic Sieving Machine, 450 Type Vibrating Screen Filter, Powder Vibrating Sieve, Granule Sieve Machine, Liquid Vibration Filter, High-Frequency Vibration Filter, vibrating feeder, conveyor system, bucket elevator, grain machine and packaging machine and so on.
2.Which industry does the crane applied to?
Chemical industry, Food industry, Pharmaceutical industry, Metallurgical Industry and so on.
3.What method of payment do you support?
We usually support T/T, L/C or Western Union, and various methods of payment is available.
4.What are the advantages of our products?
1) Reasonable structure.
2) Favorable performance.
3) All goods examined before delivery by 4QC staff.
4) Electricity saving, large capacity.
5) All voltage can be customized, such as 220V, 380V, 415V and so on.
Company information
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.The company is
specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen
equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating
conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating
equipment (TD series elevator, NE series elevator, vertical elevator and high pressure
elevator).
Feel free to contact Cathy at any time, the reply will given in 24 hours.
