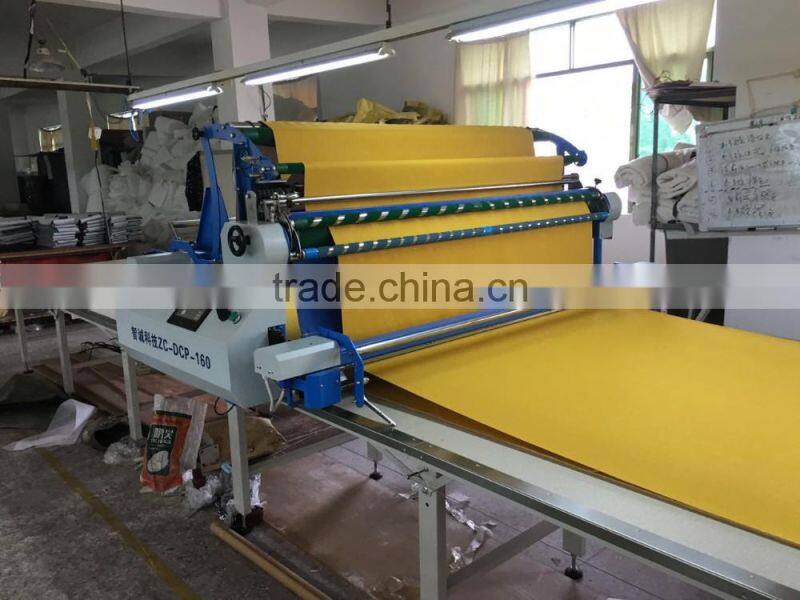

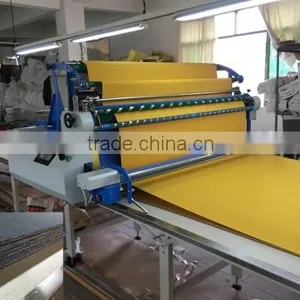

Help CenterAutomatic Spreading Machine Fabric Spreading Machine
Related Products
-
Medical Gauze Bandage Making Machine Needle LoomUS$ 1,000 - 10,000MOQ: 1 Set -
Best Quality Fabric Inspecting Winding Fabric Inspection and Rolling Machine Auto Perching MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
Textile Machine Spare Parts Tucking Device GA747 Rapier Loom Tucking DeviceUS$ 600 - 1,000MOQ: 1 Set
-
Embroidery Machine Cording Glass Beads,machine for Stringing BeadsUS$ 1,000 - 3,000MOQ: 1 Set
-
Sequin Beads Embroidery Machine/beads Making MachineUS$ 1,000 - 3,000MOQ: 1 Set
Feature:
• Machine returns back to original position once fabric is empty.
• The machine power will automatically shut off after 5 minutes(no use)
• The spread laid fabric is not pulled when the machine emergency stop.
• The streamline shape can reduce the wind disturbance,noise.
• PLC Touch panel,user-friendly operation system.
• Non-tension spreading.
• Simple operation increase production efficiency and also ensures the best quality.
Main functions:
• Touch panel display,east to set up the length,number of layers.
• Cutting device:The auto-cutter can be dismounted easily.
• Catcher:it can work for both one way and face to face.
• Automatic fabric relax control:to relax the fabric in advance and release the tension
During the spreading the fabric.Edge control device
• Automatic edge control during the spreading fabric.
• Fabric lading sensor:Machine returns back to original position once fabric runs empty
• Automatic lifting device:It is automatic lifting according to the layers of cloth during
spreading the fabric.The lifting gauge can be adjusted.
• Emergency stop:the brake lines are under two sides of table,and can be efficiently pulled upon emergency.
Specification
Model:JK-DP-190
Width of the table 1900mm
Width of the cutter 2130mm
Maximum fabric weight 80kgs
Power 1P/220v 1kw
Maximum diameter of the fabric 450mm max
Maximum speed of the fabric 85m/min max
Maximum height of the spreading fabric 250mm
Table length 1.2m*12=14.4m
