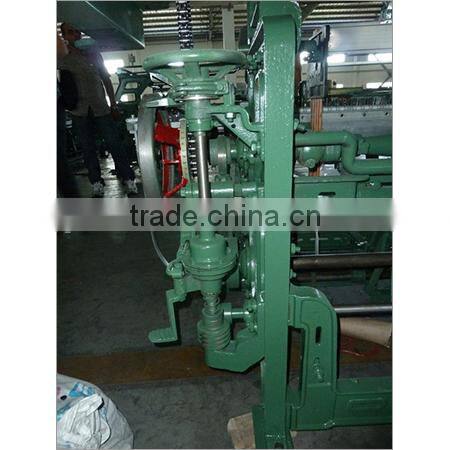

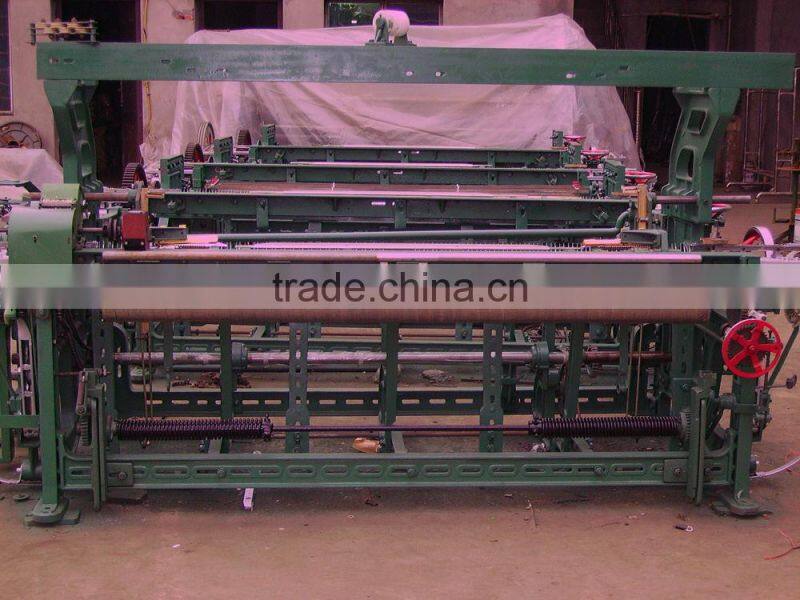

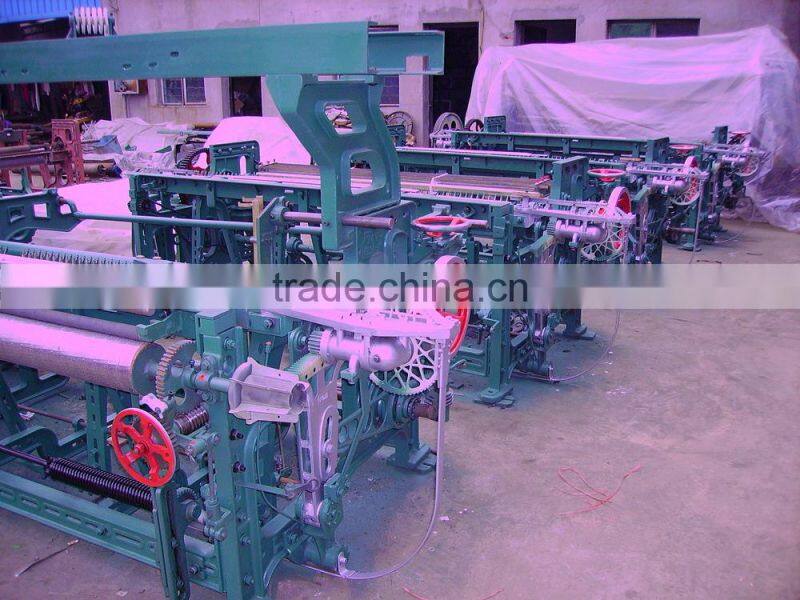

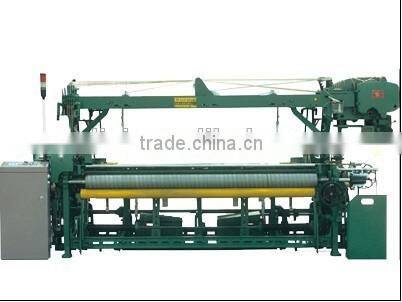

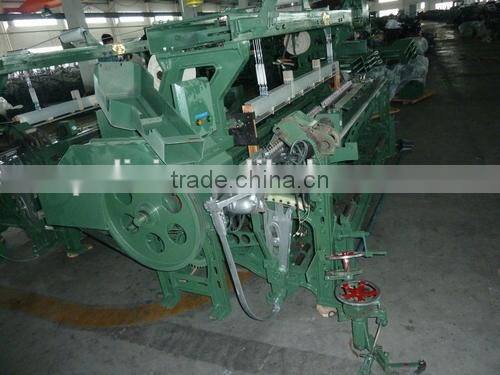

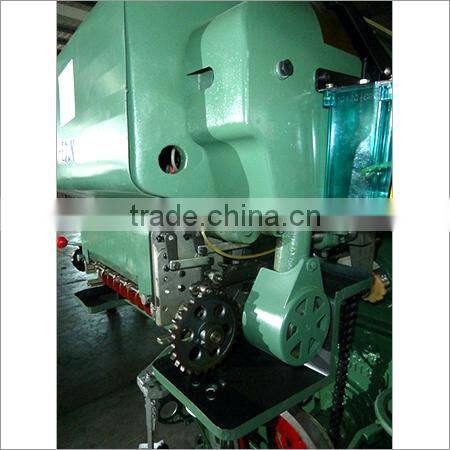

China Rapier Loom Machine Rapier Weaving Loom Fabric Weaving Machine

China Rapier Loom Machine Rapier Weaving Loom Fabric Weaving Machine thumbnail-1
China Rapier Loom Machine Rapier Weaving Loom Fabric Weaving Machine photo-1
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rapier Loom
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Hangzhou Paris Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rapier Loom
Place of Origin Zhejiang, China
Brand Name paris
Model Number 1800
Dimension(L*W*H) 3300*2500*1700
Weight 1.5
Power(W) 1.8kw
After-sales Service Provided Engineers available to service machinery overseas
china rapier loom machine rapier weaving loom fabric weaving machine

747 COMMMON MODEL RAPIER LOOM CLASSIC TYPE,

WIDTH OPTIONAL :180 200 230 250 300 CM

MAX SPEED :150-170 RPM ;

mechanical selector  ;

Mechanical let-off and take up

every set with 1 pc reed

every set with 10000 heald wires  and 10000 dropper

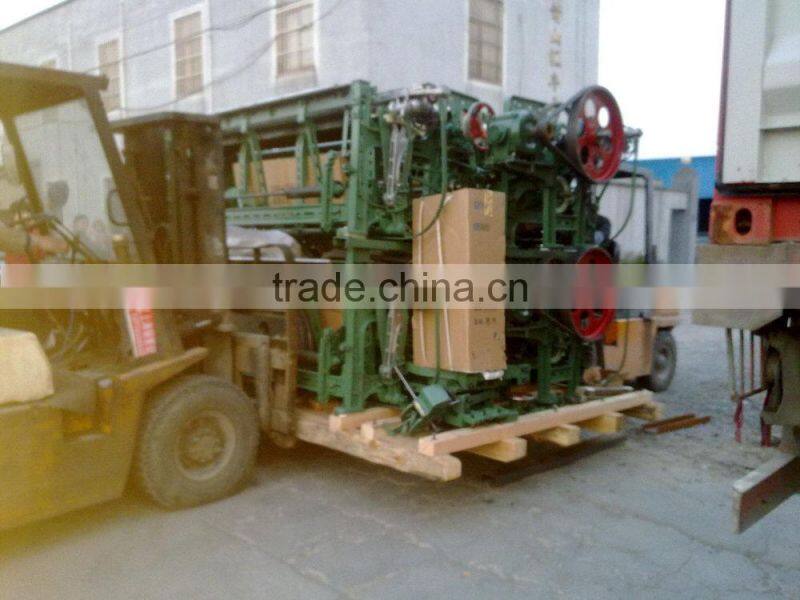

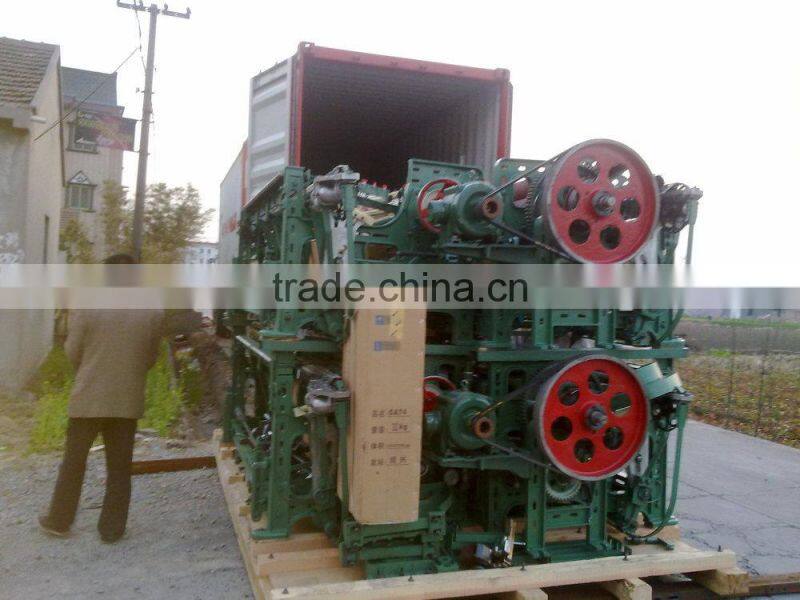

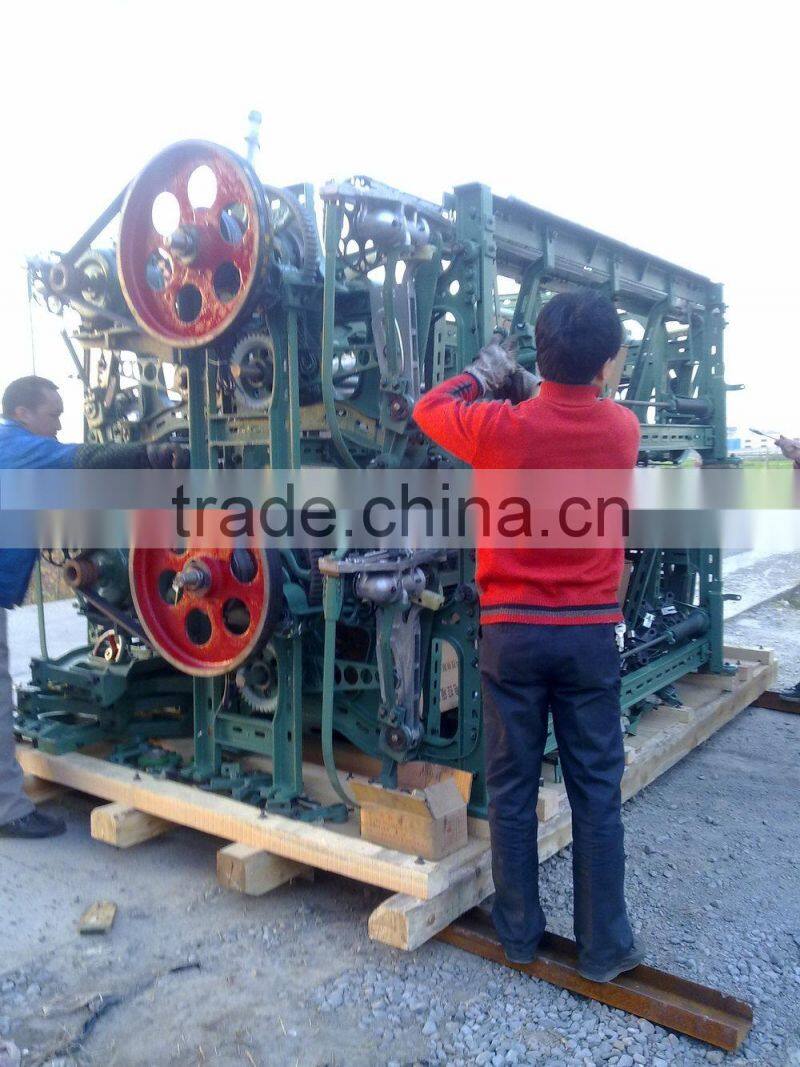

4 sets or 8 sets overload  in one 40HQ container

Technical specification
Reed width 1800-2000-2300-2550-2800-3400-3600(mm)
Speed 220r.p.m Max. Inserting rate:400m min
Yarn range Cotton Wool man-made fiber
Fabric weight  70-550g/m2
Power Main motor width width
Shedding upper mechanical dobby, spring reversing motion, maxium 20 heald frames
Beating-up motion four linkages crank arm beating-up
Let-off Outside mechanical interval let-off, ranging from 6 roots to 60 roots/cm
Rolling-up mechanical interval rolling-up, ranging from 6 to 60 weft/cm
Warp stop 6 roes electric warp stop motion
Weft stop piezoelectric sensor, with high sensitivity
Weft selection controlled by dobby, single, multi-color, max.6 colors
Weft feeding ZSHW-3 accumulator is available
Frame Selvedge leno mechanismselvedge leno motion driven by two
Uses: durable and widely use, composite slay beating-up motion features soft and strong, suitable for medium-weight fabric.
Economic index: cheap, not less than 400m/minute and high quality yarn is availabel
