Popular saled agricultural disc ridger
Instructions
Model-3Z Adjustable Soil Ridger Machine designed and manufactured by Yucheng Yili machinery Co., ltd is used for making ridge in the field after tillage. The main frame is made of rectangular tube welded together, assembled with the angle adjustable disc ridging unit. The discs are made of qualified 65Mn steel plate with heat treatment. The machine is steady and durable, convenient for transport and easy to adjust, operate and maintenance.
Maion specifications
Model |
3Z-80 |
3Z-120 |
3Z-140 |
3Z-260 |
Name |
Ridger |
Ridger |
Ridger |
Ridger |
Ridging width (mm) |
200-450 |
200-450 |
300-1000 |
300-1000 |
Ridging height (mm) |
150-240 |
150-240 |
150-330 |
300-500 |
Dia. of disc (mm) |
460 |
460 |
560 |
660 |
Nos. of disc |
4 |
4 |
2 |
4 |
Matched power (hp) |
15-20 |
25-40 |
25-40 |
60-90 |
weight (kg) |
160 |
180 |
200 |
400 |

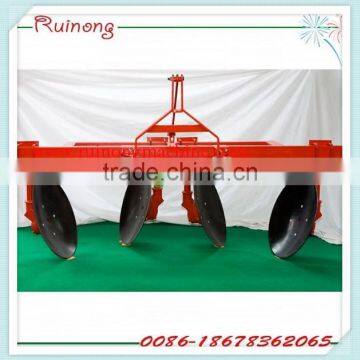

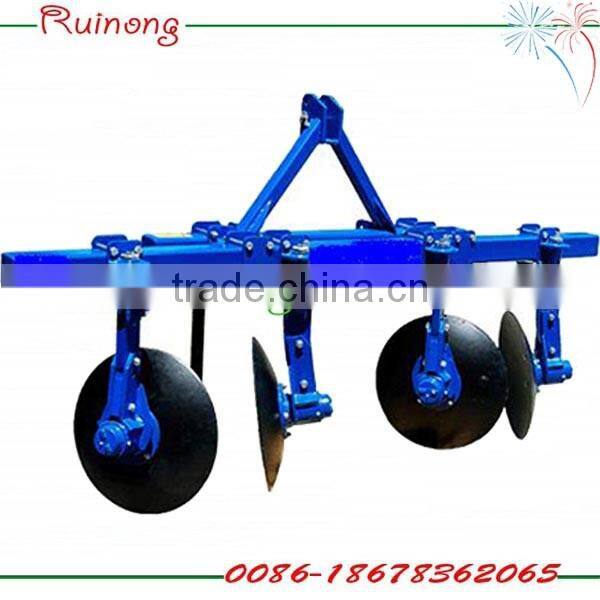

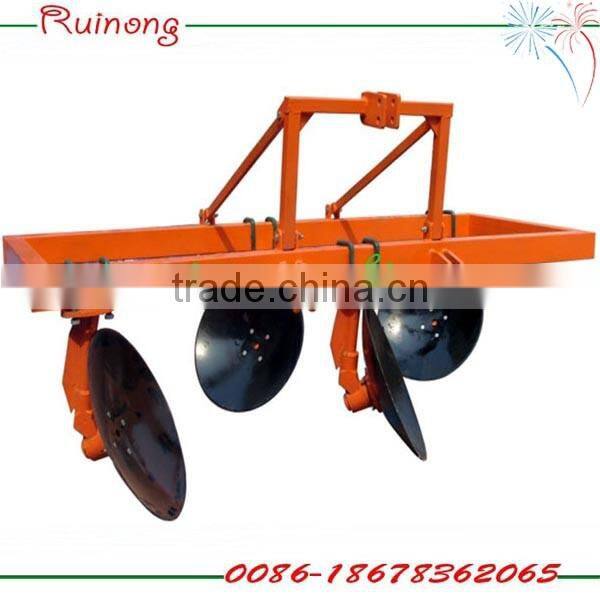

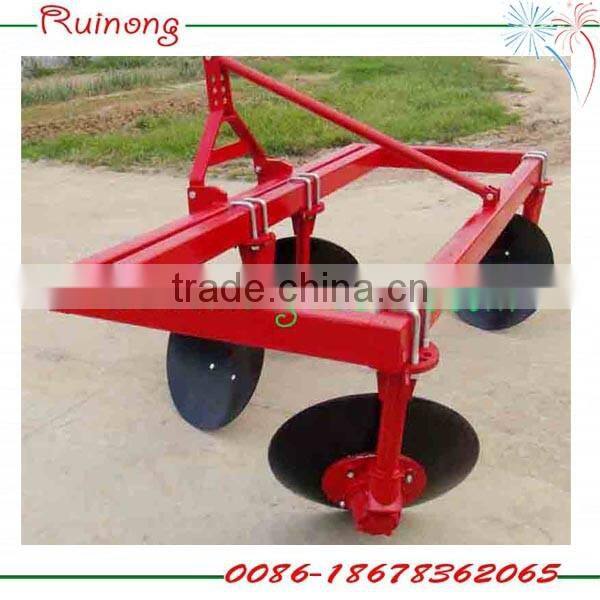

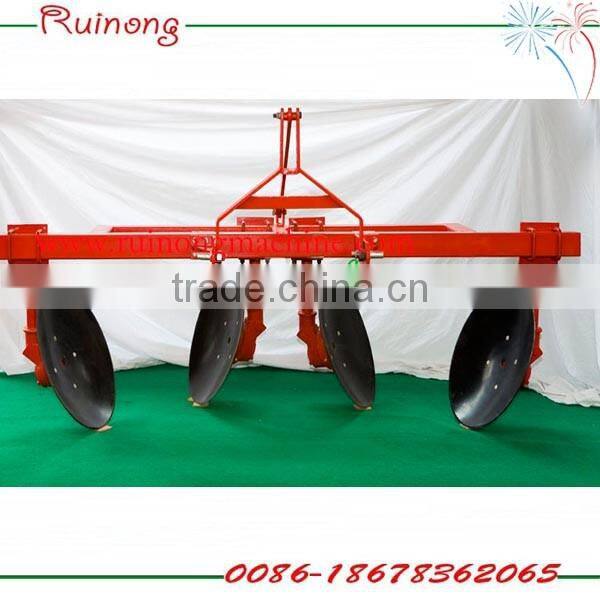

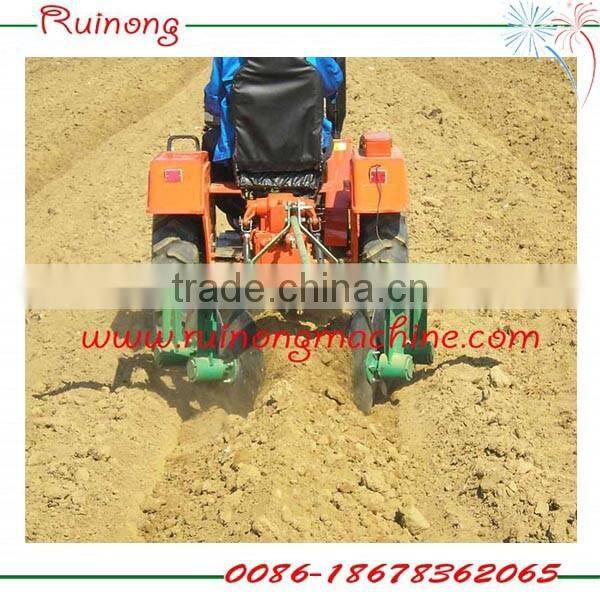

Pictures
Packing and shipping
We usuall pack our goods in iron frame and we can also do as you requirements
We will ship the goods within 30 days for more than 100sets, and 15 days for one set
.
Guarantee
The guarantee period is one year, and we will express the broken parts by plane for free during the guarantee period.
If the products have big problems that affect the normal usage, we will agree to return the goods.
