Product Descriptions

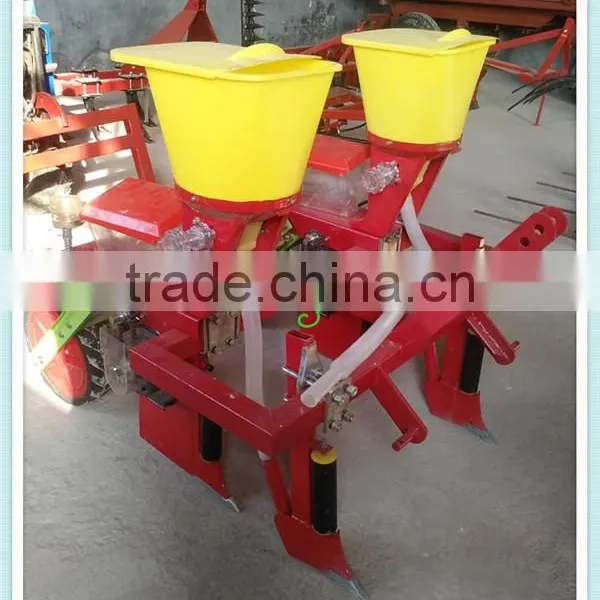

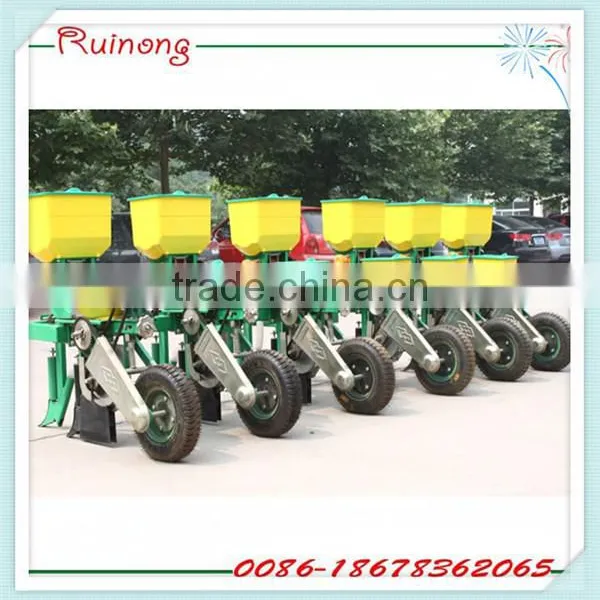

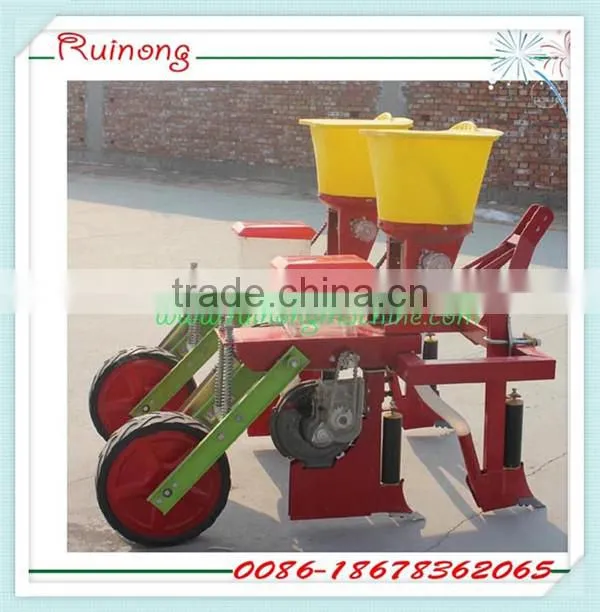

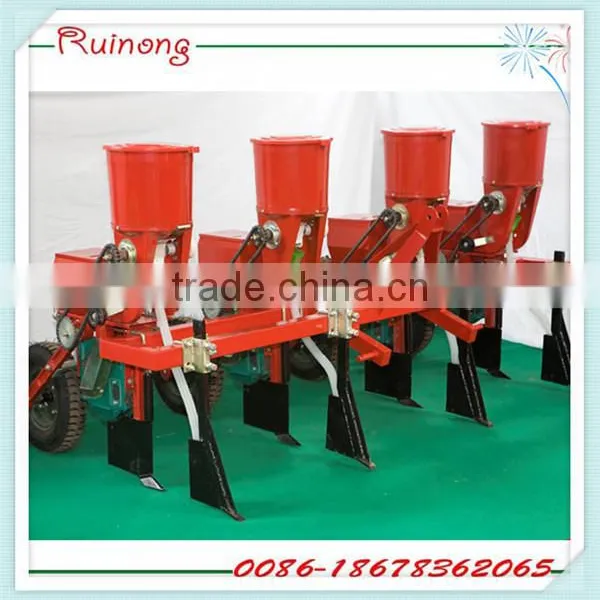

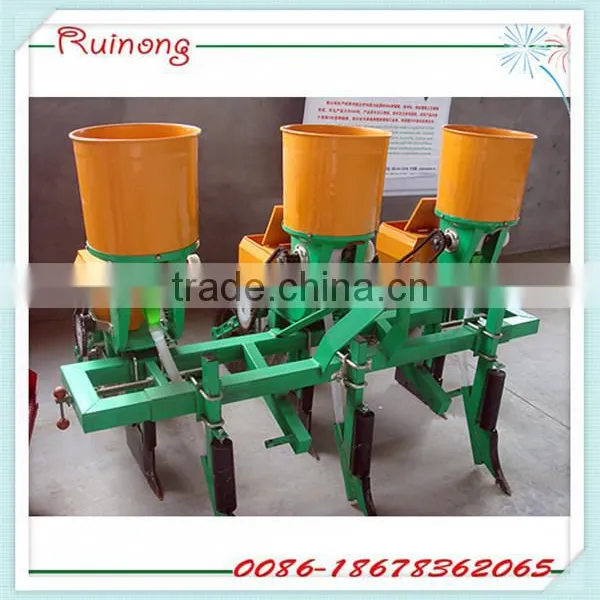

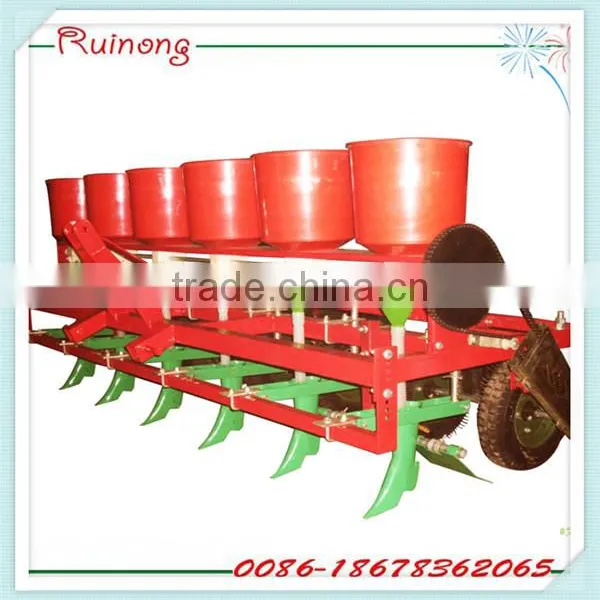

Series of 2BYFJ Corn and Soybean Seeder with fertilizer apply together. It is a fine seeder with seeding grains one by one. It can complete the work of loosing soil, digging, applying fertilizer, seeding, covering and pressing in one operation. Sowing by weight, no damage to seeds. High precise seeds clearance, evenly sowing stale, seeds saving and less thin out seeding. Adopt “zero speed”, equal potential energy, low position feeding sturdy, seedling spacing is even. Mainly for sowing corn, can also sowing bean, cotton seeds, peanut and sunflower seeds. It has multifunction. The machine can spread the basis fertilizer during planting, and can complete the suppression at the same time. Feed outlet is driven by gear. There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning. May adjust rows spacing by adjusting different driven gears. Can pick out the whole disc cover when clear the seeds. Seeds clearance is convenient and thoroughly. The machine have the characteristics of narrow trenching, moisture, and the fertilizers front, side spreading is spreading is suitable the machine can match a wide range of tractors.
Main specifications
Model |
2BYFJ--3 |
2BYFJ--4 |
2BYFJ--5 |
2BYFJ--6 |
Row space(mm) |
500—700 |
500—700 |
500—700 |
500—700 |
Fitted Power(HP) |
18 |
35 |
55 |
55-80 |
Fertilizing Depth(mm) |
30-70mm under seeds |
30-70mm under seeds |
30-70mm under seeds |
30-70mm under seeds |
Fertilizing Output(kg/mu) |
90-415 |
90-415 |
90-415 |
90-415 |
Seeding Depth(mm) |
30-50 |
30-50 |
30-50 |
30-50 |
Linkage |
3-point mounted |
3-point mounted |
3-point mounted |
3-point mounted |
Transmission |
Ground wheel driving |
Ground wheel driving |
Ground wheel driving |
Ground wheel driving |
Speed(km/h) |
5-7 |
5-7 |
5-7 |
5-7 |
Weight(kg) |
200 |
270 |
340 |
420 |
Pictures
Features:
1. using gravity cleaning without hurting the seeds;
2. cleaning, sowing quantity of high precision, uniformity and stability of provinces, less
thinning out;
3. adopt the "zero velocity", such as potential, low to throw away, acupuncture point accurately, agent, healthy, uniform;
4. anchor corn, soybean, cotton and sowing, peanut oil sunflower multi-usage, sowing while, can with chemical fertilizer, but also achieve turns the soil repression;

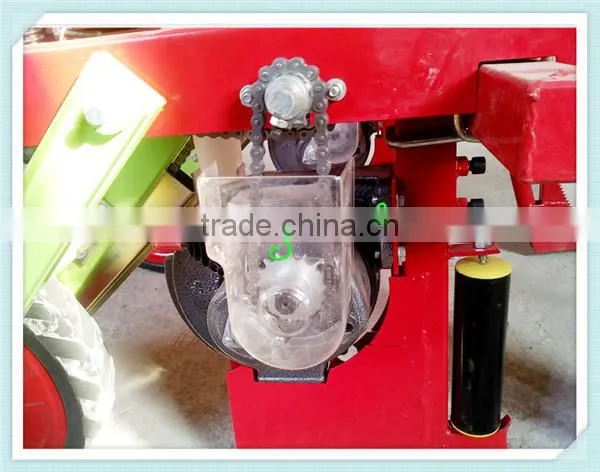

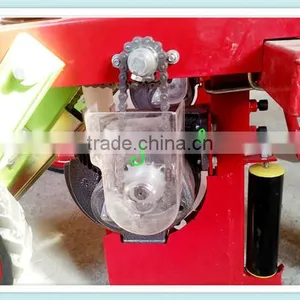

5. metering device by gear transmission, active gear has anti pour institutions, avoid machine
caused by fault; non-overturned;
6. adjust different driven gear, adjustable row space;
7. and when cleaning off the platoon kind of plate cover, clear convenient and thoroughly;
8. the machine has cultivated land and not cultivated land are applicable;
9. the machine open ditch narrow, good, fertilizer is subsoil, side all can, supporting scope.

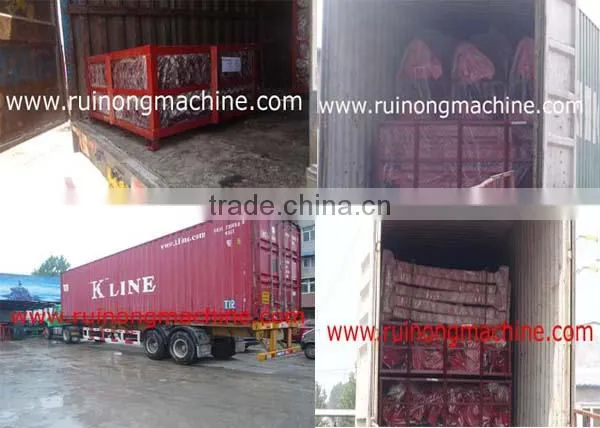

Packing and shipping
We usuall pack our goods in iron frame and we can also do as you requirements
We will ship the goods within 30 days for more than 100sets, and 15 days for one set.
The guarantee period is one year, and we will express the broken parts by plane for free during the guarantee period.
If the products have big problems that affect the normal usage, we will agree to return the goods.
