New style harrow disc blade 18
- 1000 Set / Sets per Month
- Qingdao
- D/P D/A
Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Diesel |
Power(W): | 25hp | Certification: | ISO9001 | Warranty: | 1 Year |
Use: | Farm | Place of Origin: | Shandong, China | Brand Name: | Ruinong |
Model Number: | 1BQX-1.5 | Weight: | 1350 | Dimension(L*W*H): | 190*155 *112 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New style harrow disc blade 18

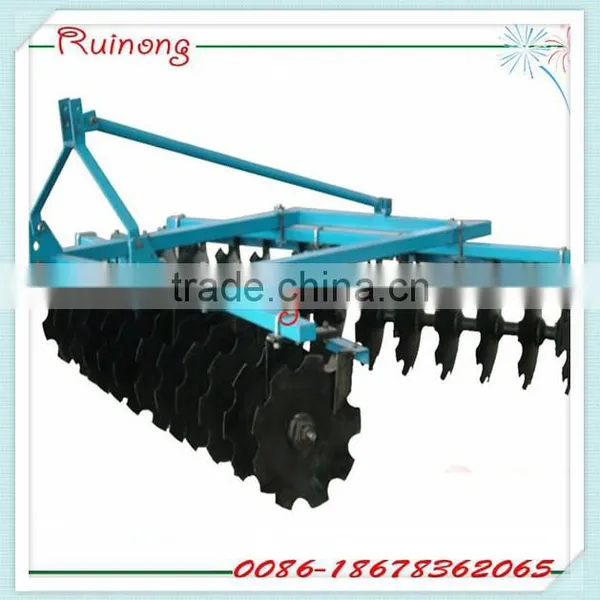

1BQX series light duty 16 pc disc harrow
Instructions
The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before sowing on cultivated land, it can make soil and fertilizer mix up, and clean away the stump of plants. With the reasonable structure, the machine is durable in service, easy to be operated and maintained, etc.
1BQ-3.4 Light-duty off set disc harrow with 42 discs. it is suitable for pulverizing and loosening the land before sowing on cultivated land, it can make soil and fertilizer mix up and clear away the stump of plants.
Maion specifications
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.4 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 | 1BQ-3.3 | 1BQ-3.4 | 1BQ-5.0 |
(cm) Overall dimension | 159*123 | 159*144 | 159*144 | 190*155 | 199*182 | 227*190 | 250*233 | 536*324 | 536*340 | 550**530 |
(m) Working width | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | 1.9 | 2.3 | 3.3 | 3.4 | 5.0 |
(mm) Working depth | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
(pcs) No. of disc | 12 | 14 | 16 | 16 | 18 | 20 | 24 | 40 | 42 | 60 |
(mm) Dia. of disc | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 |
(kg) Weight | 200 | 220 | 230 | 240 | 260 | 310 | 360 | 1090 | 1108 | 1520 |
(HP) Fitted power | 12 | 15 | 15 | 25 | 28 | 30 | 50 | 80-100 | 80-100 | 120 |
Linkage | (Standard three-point mounted) | (Trailed) |
Advantages of 1BQX series disc harrow
1.It is mounted light disc harrow
2.This tractor offset disk harrow is suitable for 15-60hp tractor.
3.The material of plough disc is 65Mn spring steel ,it is more strong.
4.Strong and durable bearing
5. Fit the scraper for each disc blade to clean the objects.
6.The working depth can be adjusted freely.

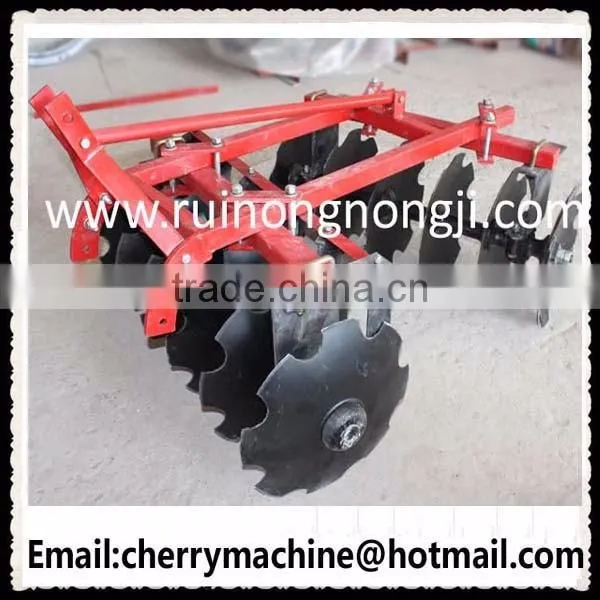

Pictures
Packing and shipping
We usuall pack our goods in iron frame and we can also do as you requirements
We will ship the goods within 30 days for more than 100sets, and 15 days for one set
.
Guarantee
The guarantee period is one year, and we will express the broken parts by plane for free during the guarantee period.
If the products have big problems that affect the normal usage, we will agree to return the goods.
