Home > Light Industry & Daily Use > Disposable Products > Disposable Tableware > Disposable Tableware

Disposable Tableware

Name: Disposable Tableware
Brand: Baochuang
SKU: 139170965

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Baochuang

Model Number:

2X-80

Contact Supplier Request Quote Chat Now

Fujian Baochuang Machinery Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou or Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Baochuang

Model Number 2X-80

The high speed tableware advantage:

1. Main Technical Parameter

NO.	Item			Unit	Specification	Remarks
1	Nominal Pressure Plunger Case			T	200
2	Hydraulic Working Pressure			Mpa	19
3	Space Between Upper Mould Board and Lower Mould Board			Mm	38	Adjustable
4	Speed of Slide Block		Down Speed of Back Stroke	Mm/s	85
5	Effective Area of Upper Mould Board and Lower Mould Board		Left To Right	mm	600
5	Effective Area of Upper Mould Board and Lower Mould Board		Front To Back	mm	600
6	Center Distance of Crutch		Left To Right	mm	720
6	Center Distance of Crutch		Front to Back	mm	460
7	Max Stroke of Die Sinking Oil Tank			mm	380
8	Motor Power			KW	3.7
9	Max Heating Temperature				220
10	Heater Power			KW	7.4
11	Sulfuration Heating Time			S	0~9000	Adjustable(Second Sulfuration Setting)
12	Size	Left To Right		mm	1150
		Front To Back		mm	1550
		Height		mm	2000
13	Weight			KG	4000

II.Main Usage and Character

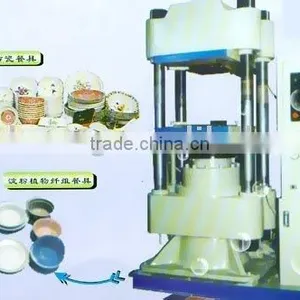

This machine can be applied in pressing various kinds of melamine tableware.

Chatacters:

(1) The running speed is from fast to slow to reduce the impact of the machine.And the voice is low.It is not easy to damage the mould.

(2) Manual peration and auto operation for choice

(3) Mould locking F=200 TONS

(4) The oil circuit is desighed reasonable,which works quckly and steadily.The valves are adopted famous brand products.

(5) By using high and low pressure way,it can save the energy greatly.

III.General Description of the Structure

This machine is composed of main machine,hydraulic control system,electrical instrument and heater etc.The main machine has two parts,upper board and lower board.The hydraulic device is placed on the top of oil tank and the electrical box is on the front.The oil pressure gauge shows the pressure and the pressure switch controls the pressure.The plunger piston presses the mould from fast to slow,then heats by heating device to make the marerial sulfurization and form.The distance between upper board and lower board can be adjusted by the nut.The max distance can be 300-400mm.
