regular shape high density auto-cutting system 80mm wood shaving briquette machine line

wood briquette making machine price  is used to make sawdust, sugar cane, rice straw, rice stalk, corn stalk, cotton stalk, bean husk and other agro-waste and forestry waste into half-charcoal stick. The product of this wood briquette making machine price  can be used to heat boiler, fireplace,etc for warm in house. The length of the finished product can be controlled by yourself, and we can also change it right for your requirement.

2. raw material information of regular shape high density auto-cutting system 80mm wood shaving briquette machine line

 for this machine Almost any biomass can be briquetted. Briquetting plants set so far in India are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust etc. can be also be briquetted individually or in combination without using any binder.

3. final product of  regular shape high density auto-cutting system 80mm wood shaving briquette machine line

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.

The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge

 The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

The available length could be :20cm,30cm, 40cm, 50cm

The feature of the final product : Specific gravity: 1300—1900kg/m   Calorific value: 4500—5000kcal/kg

4. the final product application ofregular shape high density auto-cutting system 80mm wood shaving briquette machine line

As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields :

Boilers : It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..

Furnace & Foundries : It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

Brick Kilns : It is the total, substitute of steam coal.

Residential & Commercial Heating : For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.

5. working principle of the regular shape high density auto-cutting system 80mm wood shaving briquette machine line

Using the intrinsic attributes of the wood material, by spiral extruding at high temperature, under high pressure, wood element in wood material becomes plastic and makes the fine fiber combine, and then stick solid fuel is formed.

Sawdust Briquette Machine make the biomass material into briquettes. After the well preparement  of raw material, briquetting is easy at right operation of biomass briquette press. When machine rise to over 300 centigrade, the material can be feeding continuously into briquetting press. First, the color of briquettes may be a little dark even black, but after a while, the color will be light to normal level coming out of biomass briquette machine.

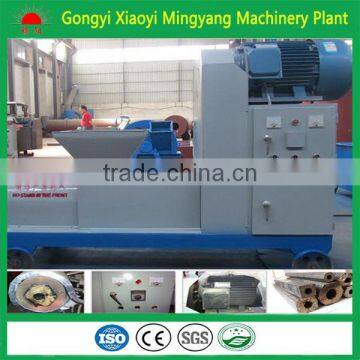

single machine models of the  popular type screw square type non-toxic 80mm diameter wood chips briquette machine line supplier

production line  of the  popular type screw square type non-toxic 80mm diameter wood chips briquette machine line supplier

advantage of the  regular shape high density auto-cutting system 80mm wood shaving briquette machine line

• No binder is needed in briquetting process, since the high temperature pressing process will soften the lignin inside the biomass and makes it adhesive.
• The briquettes made by this machine have regular shape, high density, easy to combust and durable to burn, no ash, etc. So the briquettes are welcomed by many users.
• The screw shaft, inner former and other key parts are made by high hardness alloy steel to have longer service life than those made by other manufacturers.
• The gear box is equipped with lubricating device so that the main part can be lubricated regularly.
• The machine also adopts auto-cutting system to cut the briquettes into uniform length automatically.
• It has low price and high quality, which makes it cost-effective.

for the single machine, we packing in the plywood cases, and for the whole production line we will delivery in the 20 feet or 40 feet container
