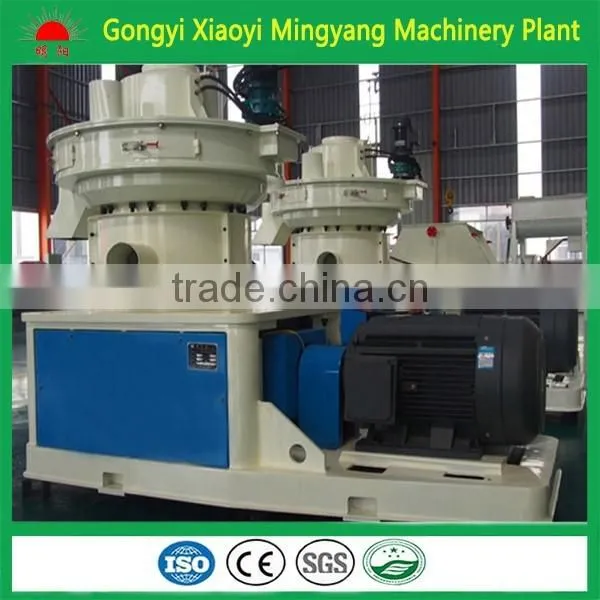

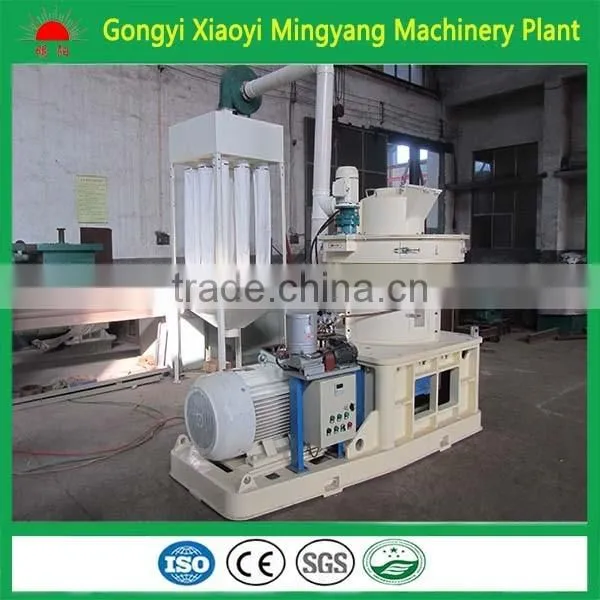

Factory direct sell vertical ring die industrial wood pellet mill for fuel
The information of industrial wood pellet mill
industrial wood pellet mill is a new generation of energy-saving products, researched and developed by our researcher newly. It mainly used to compress crushed corn stalk, plant waste, bamboo powder, grass, straw, rice husk and wood chips, sawdust, sunflower stalk etc. into cylindrical shape. Machine adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.
Main data of industrial wood pellet mill
Model |
Capacity |
Power |
Size of Finishedpellets |
Weight |
Size |
HKJ-350 |
0.4-0.8 t/h |
35kw |
4-12 mm |
2.8ton |
2000*1000*1380 mm |
HKJ-450 |
0.8-1.0 t/h |
55kw |
4-12 mm |
4.2ton |
2200*1000*1580 mm |
HKJ-550 |
0.8-1.2 t/h |
75kw |
4-12 mm |
4.8ton |
2300*1000*1780 mm |
HKJ-560 |
1.0-1.5 t/h |
90 kw |
4-12 mm |
5.8ton |
2600*1300*2300 mm |
HKJ-650 |
1.5-2.5 t/h |
160 kw |
4-12 mm |
6.5ton |
2900*1300*2400 mm |
HKJ-880 |
3.0-4.0 t/h |
315 kw |
4-12 mm |
12.6ton |
3750*1650*3250 mm |
Raw material of industrial wood pellet mill
1)The raw material of could be straw, wooddust, bamboo powder, cotton wood, peanuts shell, clover, etc,can mix with all kinds of powder materials.
2)size:3-5mm, moisture 15-18%
Advantage of industrial wood pellet mill
1.Vertical hopper:This design can avoid the raw material be stuck in granulating room.
2.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies:This design increase the efficiency of pellet making,reduce clients cost .
4.Bearing: High precision, high speed, low noise, long life.
5.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energyconsumption.It can work continuous 20 hours.
Process of industrial wood pellet mill
The mainly processes are :crushing (if the raw material is not already granulated), material sifter,
drying: (if the raw material contains too much moisture), Pelletizing, cooling ,
and packing: The whole process is highly automatically controlled.
Final products of industrial wood pellet mill
The packaging and shipping of industrial wood pellet mill
the industrial wood pellet mill packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.
Gongyi Xiaoyi Mingyang Machinery Plant
is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc
We have got many certification such as CE, ISO9001,BV ,etc.
