2017 Reasonable price vertical ring die wood granules machine with ce approved
Why do you choose our pellets machine
1. Established company with rich experience
2. Recognized by customers
3. Competitive price with high quality machines.
4. Faithful employees
5. Reliable delivery
6. Best service

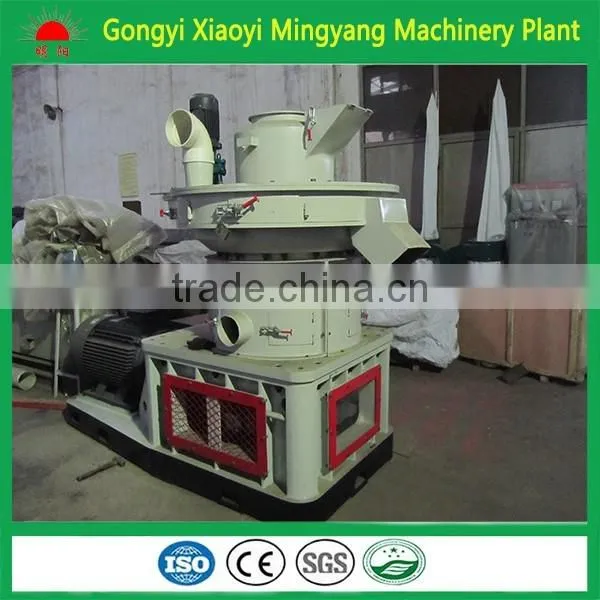

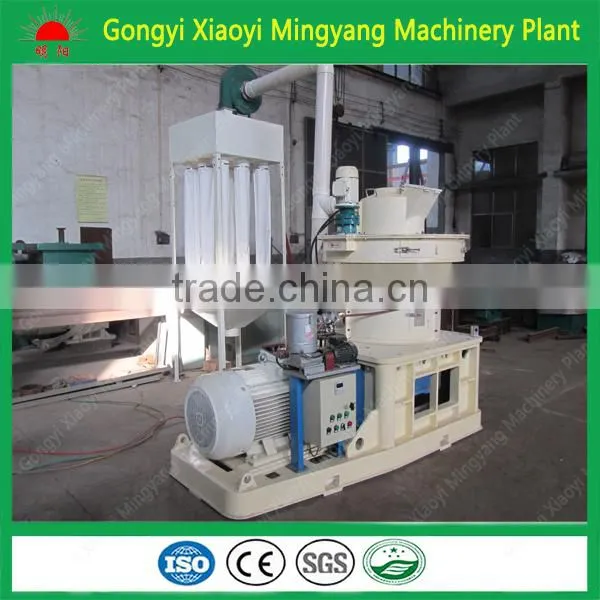

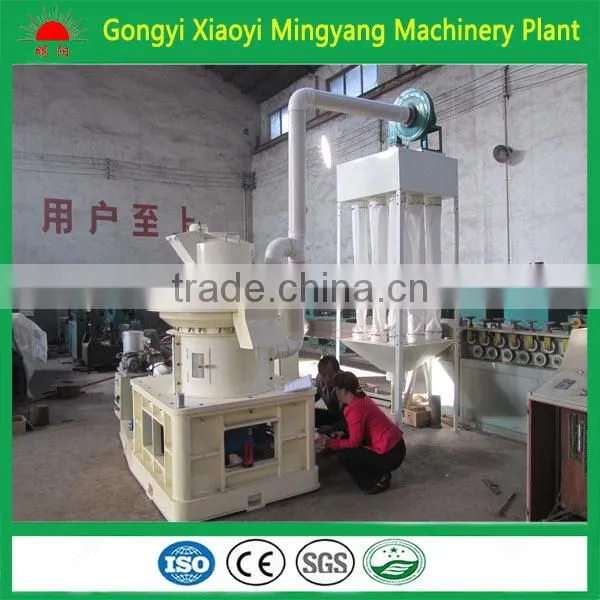

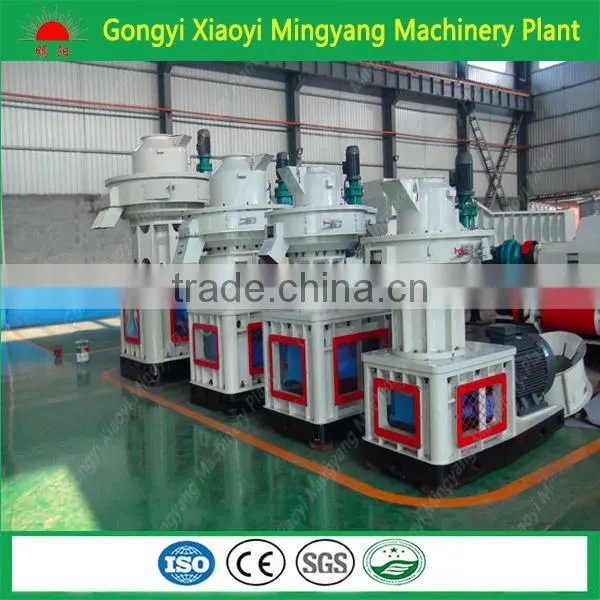

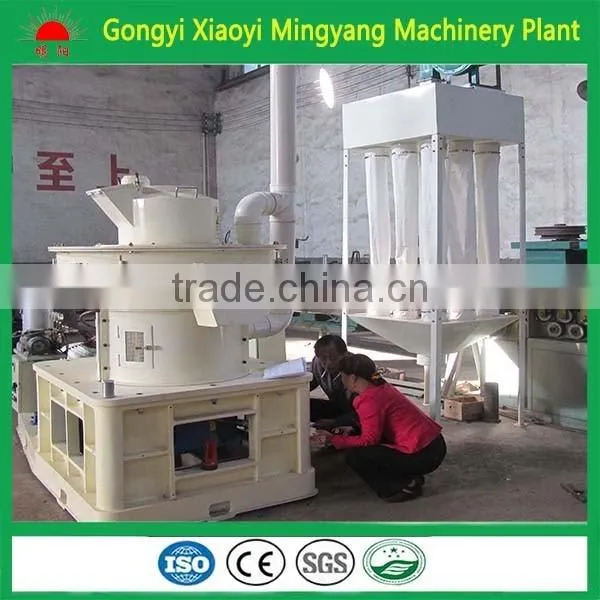

vertical ring die wood granules machine
Overview of vertical ring die wood granules machine :
vertical ring die wood granules machine with automatic lubricating system is our popular product in China through meticulous research and development.
vertical ring die wood granules machine is suitable for various kinds of materials whose moisture content is less than 15%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.
This type of vertical ring die wood granules machine is widely used in the biomass energy fuels plant, power plant, wood processing plant , MSWprocessing plant, fertilizerplant,chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.
Advantage of vertical ring die wood granules machine :
1.Vertical hopper:This design can avoid the raw material be stuck in granulating room.
2.Cooling system:As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost .
4.Bearing: High precision, high speed, low noise, long life.
5.Unique automatic lubricating system:Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energyconsumption.It can work continuous 20 hours.
Main data of vertical ring die wood granules machine :
Model |
Capacity |
Power |
Size of pellets |
Weight |
Size mm |
HKJ-350 |
0.4-0.8 t/h |
35kw |
4-12 mm |
2.8ton |
2000*1000*1380 |
HKJ-450 |
0.8-1.0 t/h |
55kw |
4-12 mm |
4.2ton |
2200*1000*1580 |
HKJ-550 |
0.8-1.2 t/h |
75kw |
4-12 mm |
4.8ton |
2300*1000*1780 |
HKJ-560 |
1.0-1.5 t/h |
90 kw |
4-12 mm |
5.8ton |
2600*1300*2300 |
HKJ-650 |
1.5-2.5 t/h |
160 kw |
4-12 mm |
6.5ton |
2900*1300*2400 |
HKJ-880 |
3.0-4.0 t/h |
315 kw |
4-12 mm |
12.6ton |
3750*1650*3250 |
Raw material of vertical ring die wood granules machine :
The raw material of could be straw, wood-dust, bamboo powder, cotton wood, peanuts shell, clover, etc,can mix with all kinds of powder materials.
The requirement of the raw material:
Directly before the pelletizing press, a product with a granular size of approx. 4 mm and a residual moisture content of approx. 15 % is required. The machine adopts speedadjust feeder to control the feeding capacity,
and use big diameter modulator to make materials fully cured, and make the pellet smoother. The formation rate reaches 98% . The final size of the product is between 4-8mm.

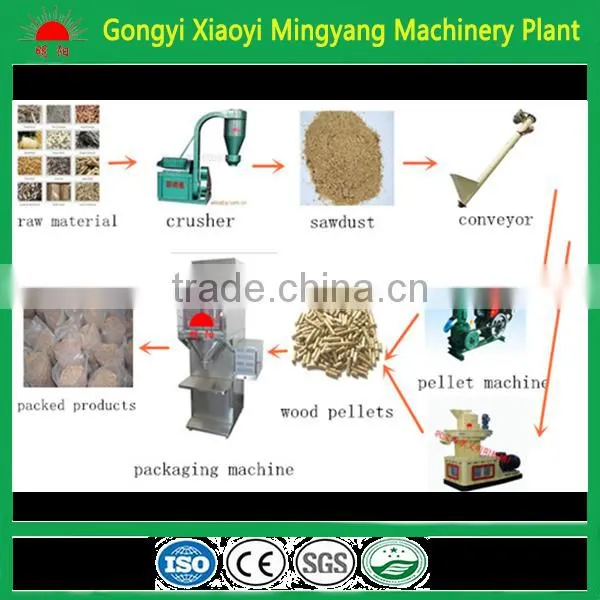

Process of vertical ring die wood granules machine :
The mainly processes are :crushing (if the raw material is not already granulated), material sifter,
drying: (if the raw material contains too much moisture), Pelletizing, cooling ,
and packing: The whole process is highly automatically controlled.

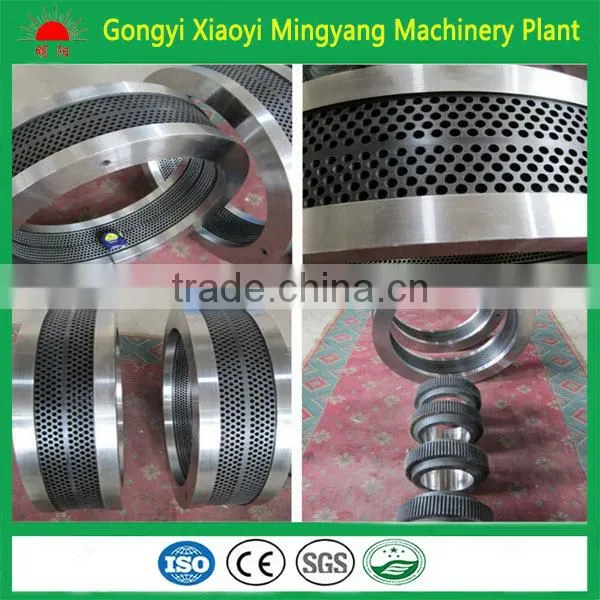

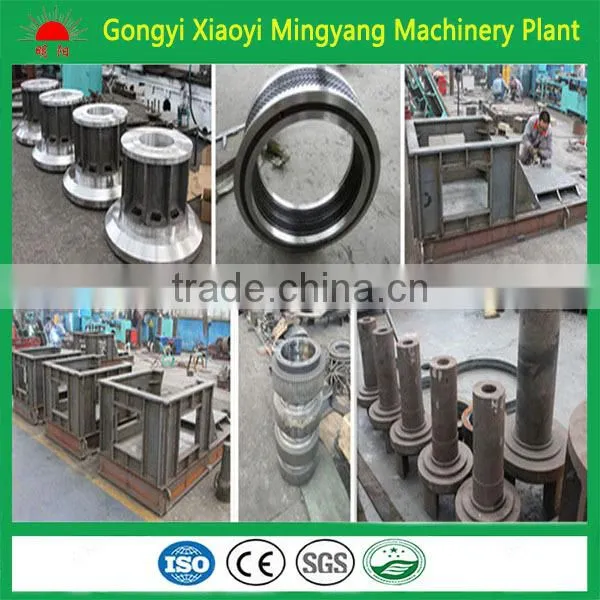

Spare parts of vertical ring die wood granules machine :
1. Vertical die, feeding vertically; No arching of raw amterials, easy for heating dissipation;

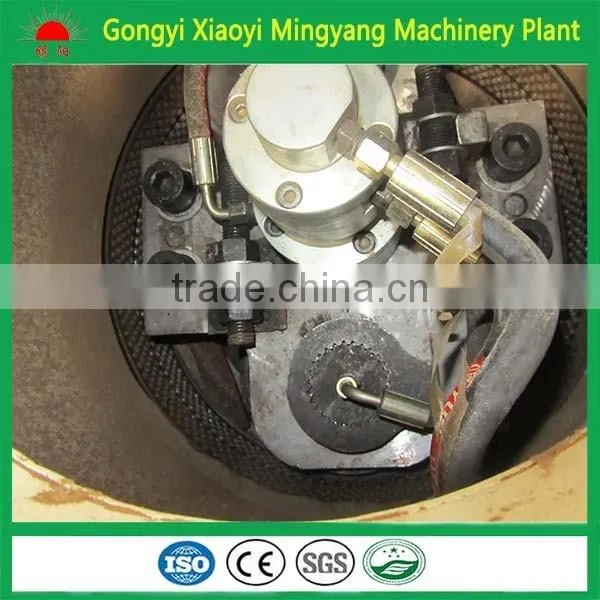

2. Die fixed, rollers rotating, materials centrifugal, evenly distributed around;
3. Double-layer dies, up and down dual-use, high capacity, saving energy.
Final products of vertical ring die wood granules machine :

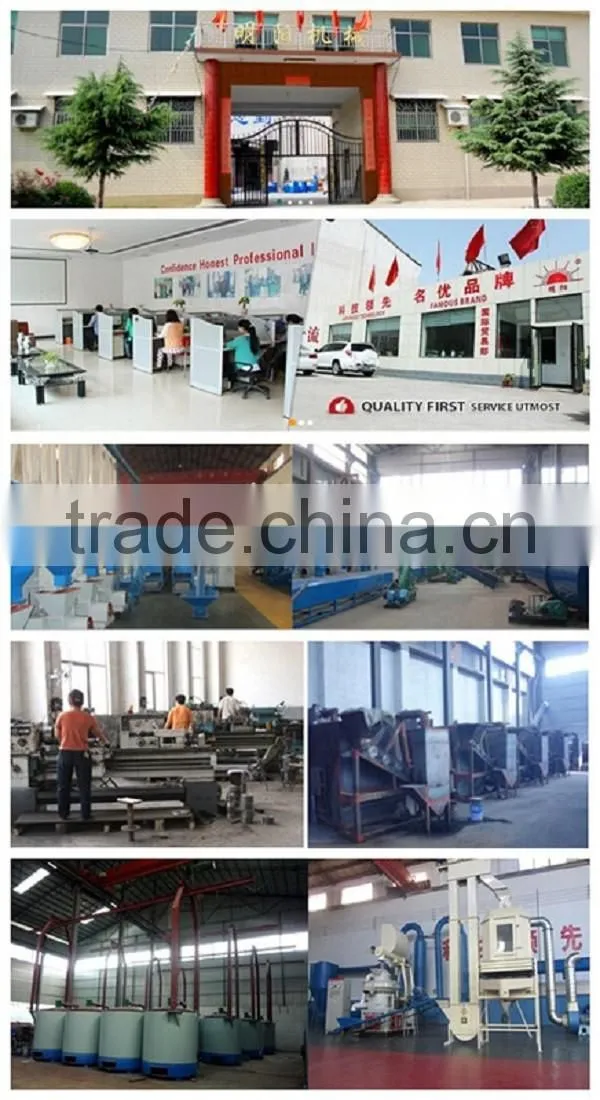

Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City,which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipment and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam,etc. We have lots of experience to export and cooperate with all over the world, and we also sincerely welcome you to come to our factory to visit and watch our products and factory.
1, How to pay to you ?T/T inadvance . We can accept 30%-50% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.
3, Do You Arrange Shipment For The Machines?Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt .Save space as much as possible for container loading .
If you need any information, please kindly contact me, i will give you reply soon
Gongyi Xiaoyi Mingyang Machinery Plant
Sales Manager: Winnie Sun
Mobile: 0086 15225168310
Skype: winniesun1496
whatsapp 0086 15225168310
wechat : 0086 15225168310
