Protection Mesh

Protection Mesh thumbnail-1
Protection Mesh thumbnail-2
Protection Mesh thumbnail-3
Protection Mesh thumbnail-4
Protection Mesh thumbnail-5
Protection Mesh thumbnail-6
Protection Mesh photo-1
Protection Mesh photo-2
Protection Mesh photo-3
Protection Mesh photo-4
Protection Mesh photo-5
Protection Mesh photo-6
US$ 10 - 300 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Rope Mesh
Contact Supplier Request Quote Chat Now
Anping Haotong Wire Mesh Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Rope Mesh
Application Protecting Mesh
Weave Style Other, Plain Weave, Plain Weave
Wire Diameter 6mm-10mm
Model Number ht-963
Brand Name Haotong

protection mesh

Anping haotong wire mesh CO.,LTD



Product Description

protection mesh description

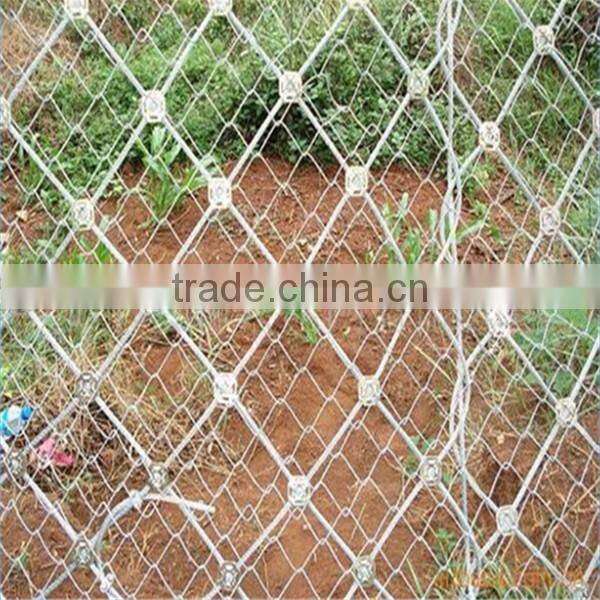

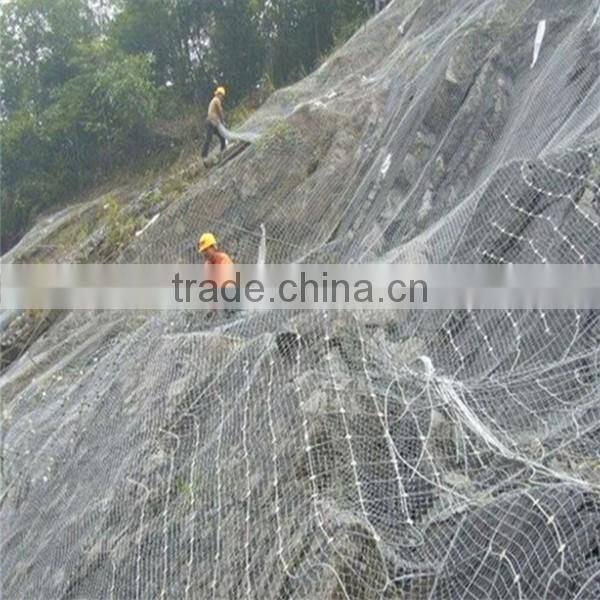

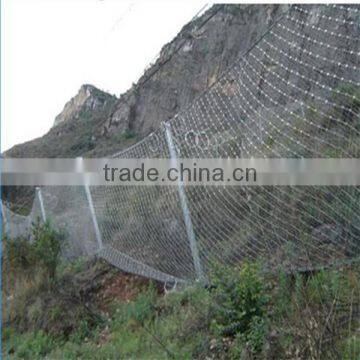

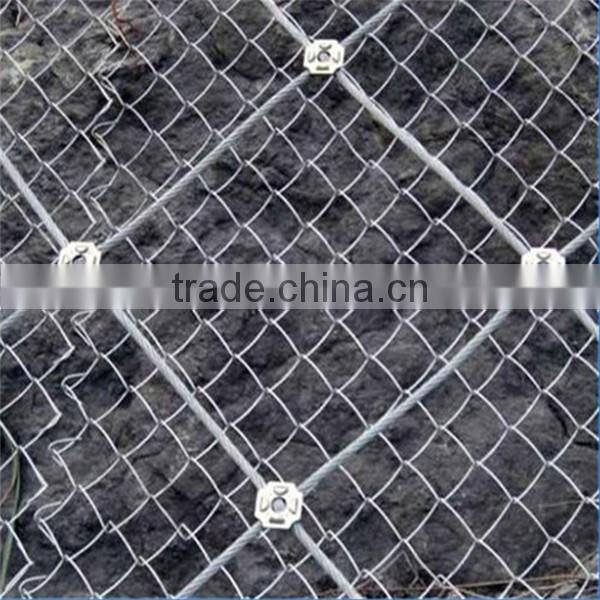

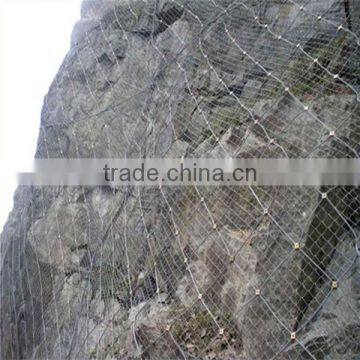

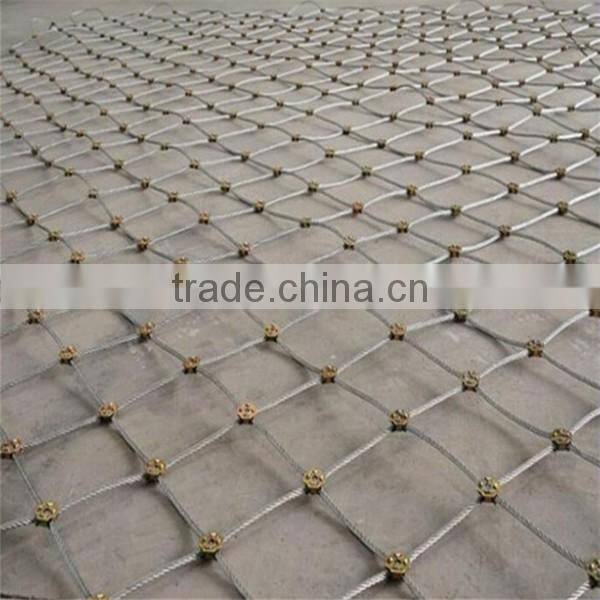

Flexible high-strength steel wire netting (diamond-shaped steel wire mesh, ring mesh, high-strength steel wire grid) as a major component of protection system is against the rock slope collapsed, dropped, such as flyrock blasting. With the technology development and application, improving the usage of construction technology, standard modular operation, Slope Stabilization Mesh System have been applied in the geological disasters on the large scale. The SNS flexible protection mesh overcomes the inconvenience of traditional ways to reinforce slope



protection mesh specification



Parts and Function of Mesh System of Side Slopes





Model

    Mesh Type          Structure                  Functions
GAR1 DO/08/30  Side or top anchor rod for wire cable+supporting cables+connection cables As a fence preventing rocks falling
GAR2  DO/80/300 Anchor rods+supporting cables+connection cables, concave pit+pull To reinforce the slope and prevent damage by weather and rocks falling.

 GPS1

 DO/08/300+
SO/2.2/2.25X10.2 		As the same as GAR1 As the same as GAR1,In circumstances of plenty of small gravels falling.
 GPS2  DO/08/300+
SO/2.2/2.25X10.2 		As the same as GAR2  As the same as GAR2,In circumstances of gravels or slopes with too much earth.
 GER1  Steel wire plate As the same as GAR1, but connected with iron wire As the same as GAR1, in circumstances of no big rocks in a short period.
 GER2  Steel wire plate As the same as GAR2  As the same as GAR2, in circumstances of no big rocks in a short period
 GTC-65A  Strong Steel Wire Plate Pretreated Steel Bar Rod+Concave Pit+Connecting Cable As the same as GAR2. It can serve over 100 years, while its capacity is lower by 20-30% than GAR2, for a circumstances without big falling rocks over 1 meter in diameter.
 GTC-65B Strong Steel Wire Plate As the same as GAR1 It can serve over 100 years, for a circumstances without big falling rocks over 1 meter in diameter.







Structure and Functions protection mesh



Model Mesh Type Structure Functions
RX-025 DO/08/250 Steel Rod+Supporting Cable+Rod Bracing System+Connecting Cables For a circumstances with falling rocks no big than 250 kj.
RX-050  DO/08/200 As the same as RX-025 For a circumstances with falling rocks no big than 500 kj.
RX-075 DO/08/150 As the same as RX-025 For a circumstances with falling rocks no big than 750 kj.
RXI-025 R5/3/300 Steel Rod+Supporting Cable+Rod Bracing System+Connecting Cables As the same as RX-025
RXI-050 R7/3/300  As the same as RXI-025 As the same as RX-050
RXI-075 R7/3/300  As the same as RX-025 As the same as RX-075
RXI-100 R9/3/300 As the same as RX-025 For a circumstances with falling rocks no big than 1000kj.
RXI-150 R12/3/300  As the same as RX-025 For a circumstances with falling rocks no big than 1500kj.
RXI-200     R19/3/300  As the same as RX-025 For a circumstances with falling rocks no big than 2000kj.

 protection meshprotection meshprotection meshprotection mesh

Features of protection mesh:



        · Flexible, local-global connection
        · High strength light section steel structure, easy to transportation, open netting structure, favore the

        · groundwater flow
        · Line products with different requirement
        · Widely used in some complicated physical characteristic area
        · Simple installation
        · Easy repair



Application of protection mesh:



1. SNS Flexible Protection Mesh mainly used for landslide protection, such as slope erupting, wind corrosive.

2. SNS Flexible protection mesh can also control and lead the river and flood.

3. SNS Flexible protection mesh is good for preventing the water and soil lost, protecting the bridge.

4. SNS Flexible protection mesh as a major component of protection system is against the rock slope collapsed,dropped, such

as flyrock blasting.
