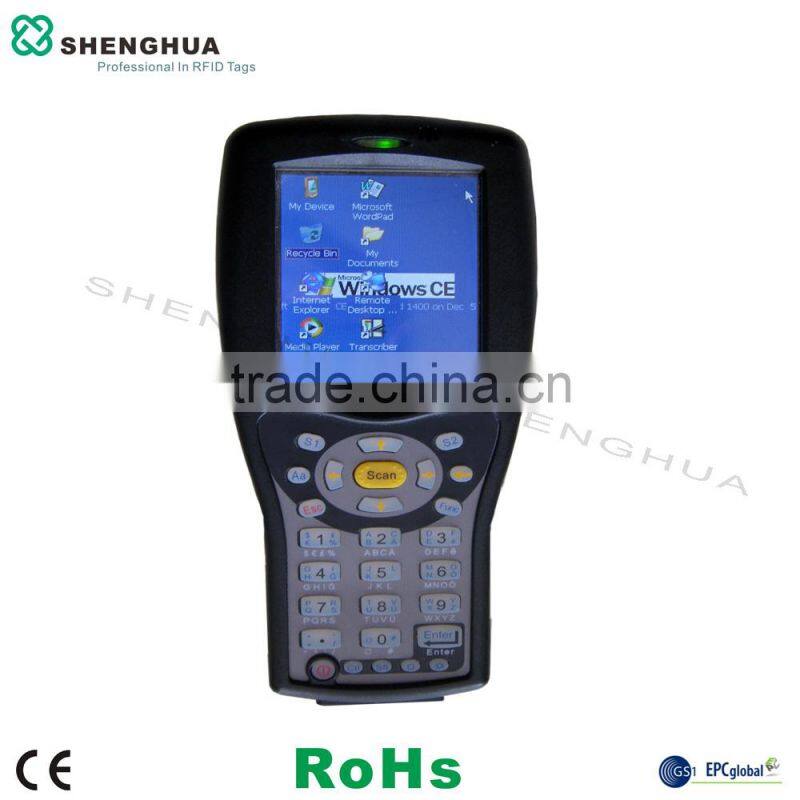

Multi-protocol UHF Rfid Handheld Reader for Management of logistics
| · Basic parameters | |
|---|---|
| Model: | SH-UH01 |
| Type: | UHF Handheld Reader |
| Frequency: | 860~960MHz |
| Standards/Protocols: | ISO 18000-6C & ISO 18000-6B |
| · Physical parameters | |
| Size: | 190*80*25mm |
| RF Power: | 20~30dBm |
| Work Mode: | Auto running, interactive and trigger activating |
| · Performance Parameters | |
| Frequency transmission: | FHSS or fix |
| Support: | RS232; RS485; Weigand interface |
| Operating Mode: | R/W |
| Reading Distance: | Up to 1.5m |
| · Environmental parameters | |
| Operating Temp: | -30~+80 celsius |
| Storage Temp: | -40~+125 celsius |
| · Specific applications | |
| Applications: | RFID systems, such as access control, logistics, etc. |
| · Packaging and delivery | |
| Package: | 1 pcs/pack |
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi/12dbi antenna optional with effect distance up to 3m/10m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
SH-UAC08 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
1. Management of logistics and warehouse:
Including drifting management of mails, parcels, luggage, etc.

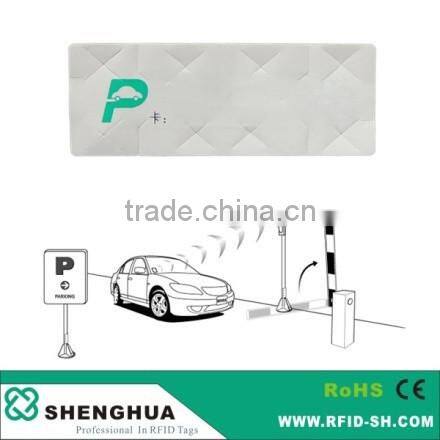

2. Smart parking lots:
Automatic parking management and charging system.
3. Product Line Management:
Identify the right point of production processes.
4. Product counterfeit detection:
Identify the authenticity of product by writing protection of internal memory.
5. Weighing system anti-cheating:
Identify the vehicle which has to weight, especially for the unattended weighing system.
6. Management of transport vehicles:
Management of the bus-stop reporting system, parking, trucks transport times.
7.Management of other fields:
It is widely applied to the management of sign-in for meetings, VIP clubs, library, students’
information, consumption, attendance, repast, swimming pool, etc.
