DHB6 Series Injection Ampoule Vials Syringe(horizontal Loading) Blister Packing Machine
Contact: Ms.Alice
Skype: dhella63
Mobile: 008613838255120
WhatsApp/Viber: 008613838255120
QQ:2974204665
Machine Introduction
• Automatic horizontal rotary pillow packaging machine is widely used to automatic pack any loose, various solid regular objects products of the food, pharmaceutical, commodity, chemical, textile industries etc.

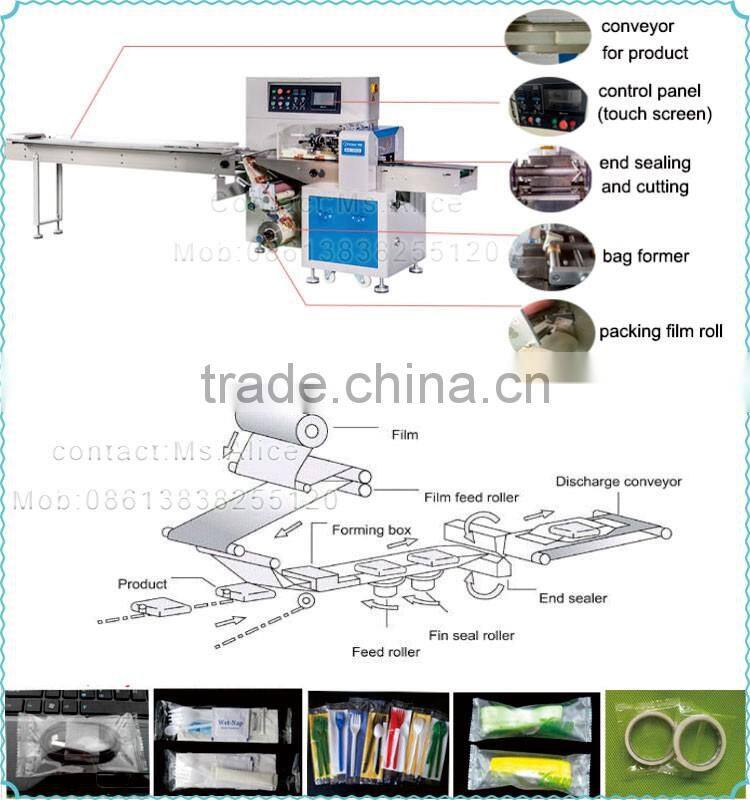

• Automatic horizontal rotary pillow packaging machine can automatic finish film feeding, bag making, material sending, cutting and sealing etc.
• With automatic feeding conveyor, no need loading material by hand, customer can choose stepping or servo controlling system.
• Customers can choose to whether equip optional device on it or not, such as gas filling device etc.
Machine Application
Automatic horizontal rotary pillow packing machine is mainly used for packaging bread/bakery, chocolate, sweets, biscuit, snacks, vitelline pie, lollipop, moon cake, ice cream, card, wet tissue, spoon, toothbrush, soap, drugs, small wares, scourer ball, syringe, hardware, commodity and the products with regular shape and no sticky.
Machine Functions&Features
1. Compact structure, stable function and simply operation.
2. Double frequency converter controller length of package will cut immediately once setting, adjustment needless, saving time and film.
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
4. Self-checking function, troubles can be read easily, clear failure display.
5. High sensor photoelectric color chart tracking, make the cutting position more correctly.
6. Dependent temperature PID controlling suitable for various materials of packaging membrane.
7. Position stop function, no adhesive and no waste of membrane.
8. Clean rotation system, more reliable operation and more convenient maintenance.
9. All the controlling operates by the software, convenience for function adjustment and technical up grading.
10. Work environment quiet, low noise, saving energy.
Machine Show
Technical Parameter
Machine Type |
DHB6-F250 |
DHB6-F320 |
DHB6-F350 |
DHB6-F400 |
DHB6-F450 |
DHB6-F600 |
|
Film Width(mm) |
max.250 |
max.320 |
max.350 |
max.400 |
max.450 |
max.600 |
|
Bag Length(mm) |
40-280 |
65-330 |
65-330 |
150-400 |
130-450 |
120-450 |
|
Bag Width(mm) |
30-110 |
50-160 |
50-160 |
50-180 |
50-200 |
60-280 |
|
Product Height |
max.60mm |
max.60mm |
max.70mm |
max.80mm |
max.90mm |
max.110mm |
|
Capacity |
40-330bags/min |
40-230bags/min |
40-230bags/min |
30-180bags/min |
30-180bags/min |
20-150bags/min |
|
Power |
220V 50/60Hz |
220V 50/60Hz |
220V 50/60Hz |
220V 50/60Hz |
220V 50/60Hz |
220V 50/60Hz |
|
2.4KW |
2.6KW |
2.6KW |
2.8KW |
2.8KW |
2.8KW |
||
|
Machine Size (L*H*W mm) |
4090*680*1420 |
4090*720*1420 |
4300*770*1420 |
4300*770*1420 |
4300*820*1420 |
4340*970*1500 |
|
Machine Weight |
500kg |
550kg |
580kg |
600kg |
650kg |
680kg |
|
Optional Equipment |
Automatic quantity warning device, Automatic Date Coder, Easy opening device, Angle Fold Devices, Hole-punching Device, Link Bag Device, gas filling device Etc. |
||||||
Customization |
Machines can be made to customers' own specifications on request. |
||||||

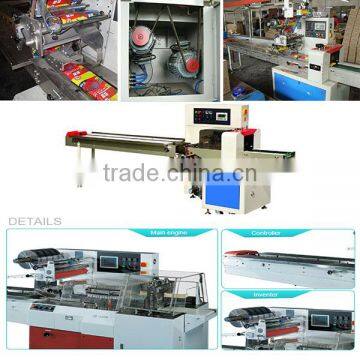

Machine Detailed Show
Recommended Other Popular packing Machine for Your Reference
|
|
|
|
|
|
1. The single horizontal rotary pillow machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine.
- 24 hours technical support by e-mail.
- Calling or door-to-door service.
- User manual and detailed Videos/CD.
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: How long is the delivery?
A: Delivery time: within 10-15 working days after receive the deposit.
For more information, pls contact me freely and I will reply you as soon as possible!
We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
