Machine Manufacturers Prickly Pear Seed Oil Extraction Machine
Contact: Ms.Ella
Skype: dhella63
Mobile: 008613838255120
WhatsApp/Viber: 008613838255120
QQ: 2974204665
Brief Information of Oil Press Machine
This oil press machine is one of our honor popular machines. We manufacture oil press price using cutting-edge technology and high grade parts and components like electric gas, hydraulic valve, etc. It is capable of processing oil plants under different technological conditions or temperature, including low temperature, normal temperature as well as high temperature.
The series of oil press machine have been exported to more than 20 countries in the world, including Russia, Ukraine, Thailand, Australia, Burma, Chile etc. Our oil press machine are widely used in pressing oil by oversea customers for rape seed, flaxseed, sunflower seed, corn germ, Peanuts, soybeans, olive, coconuts etc.
Applicable Oil Plants & Business
1. More than 30 types of oil plants, such as rapeseed, cotton seed, soybean, shelled peanut, flax seed, sunflower seed and palm kernel, etc.
2. Used in oil factory, oil mill and private oil production workshop.
3. Good both for pressing raw oil material and roasted oil material.

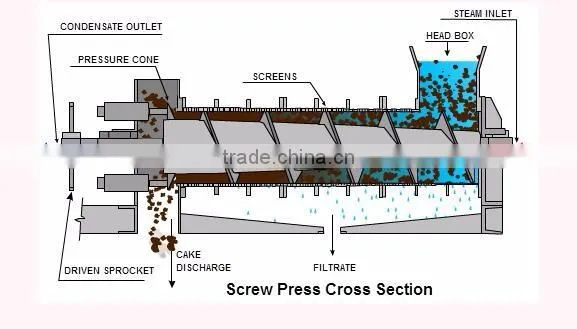

Working Principle of Oil Press Machine
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.
3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.
4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.
5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.
oil residue in cake 8%?
<6% is the best value!!!
Main Parameters of Oil Press Machine
Models |
DH-OP60 |
DH-OP80 |
DH-OP100 |
DH-OP120 |
DH-OP150 |
|
Power |
Main engine |
2.2 kw |
5.5 kw |
7.5 kw |
11 kw |
15 kw |
Vacuum pump |
2x-40.55kw |
2x-40.55kw |
2x-8A0.75kw |
2x-8A0.75kw |
2.5kw |
|
Heater |
2.2 kw |
3kw |
3.5kw |
3.8kw |
4.5kw |
|
capacity |
30-80kg/h |
80-150kg/h |
150-250kg/h |
250-350kg/h |
350-450kg/h |
|
Whole weight |
630kg |
780kg |
1100kg |
1320kg |
1500kg |
|
Outside dimension |
1350x1050x1500 |
1700 x1200x1600 |
1900x1400 x1700 |
2100x1400 x1800 |
2500x1750 x2000 |
|
Main Features of Oil Press Machine
1. Make oil from seeds and nuts. Oil is for cooking and residue cake is for animal feed or fertilizer.
2. High working efficiency! Oil press of spiral type just need process the oil plants by one time to get the maximum oil.
3. Make high quality healthy oil! Mechanical squeezing craft does not harm the nutrients in the oil. No chemical substances left.
4. Cost-Effective! Just need replace the wearing parts. The main machine can run for more than 10 years.
5. Has different models with different processing capacities, from 50kgs to 800kgs per hour per piece.
6. Motivation can be diesel engine and electric drive.

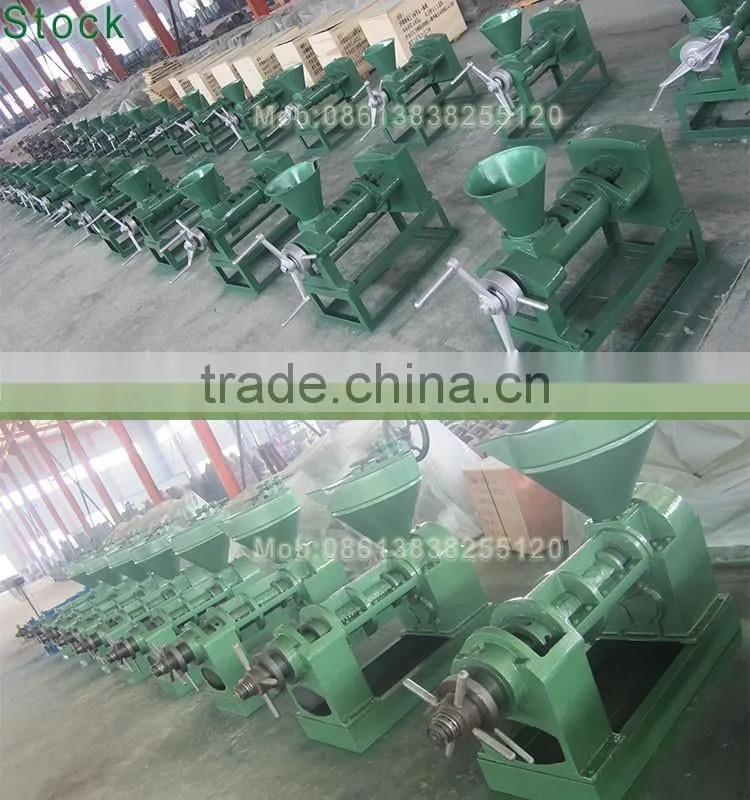

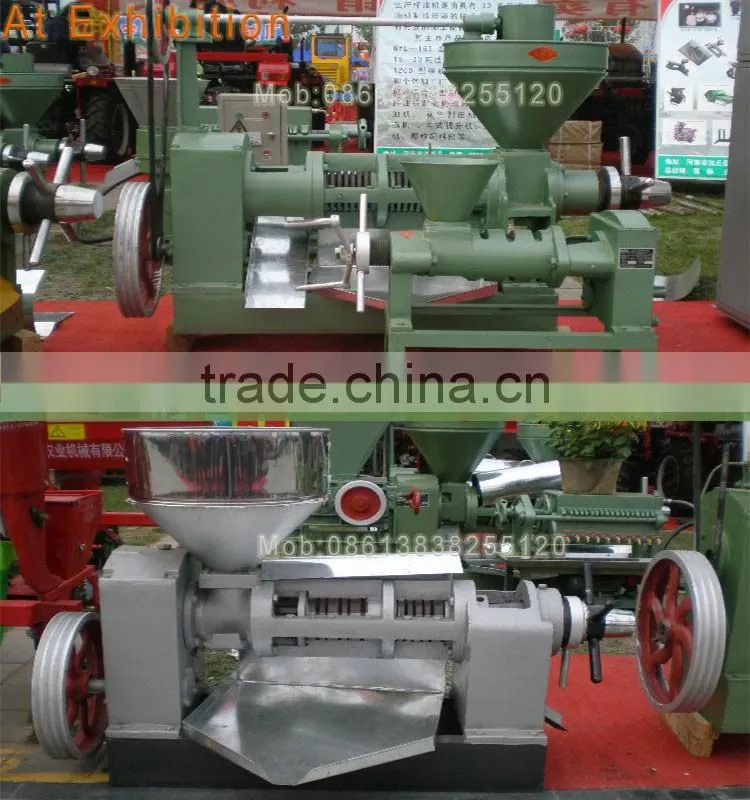

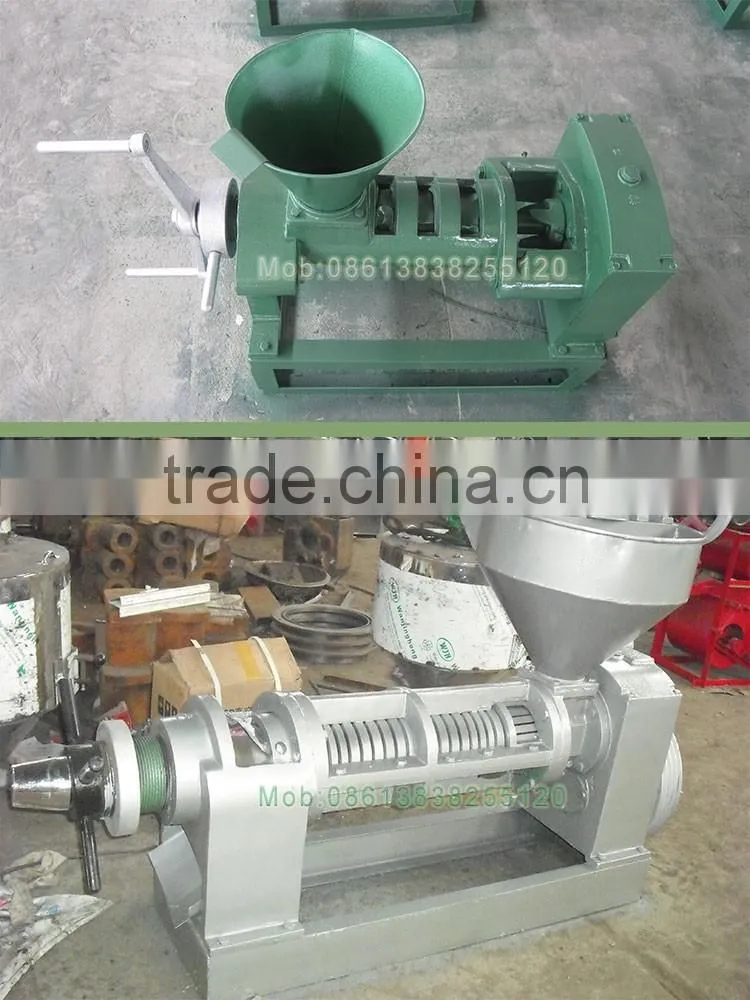

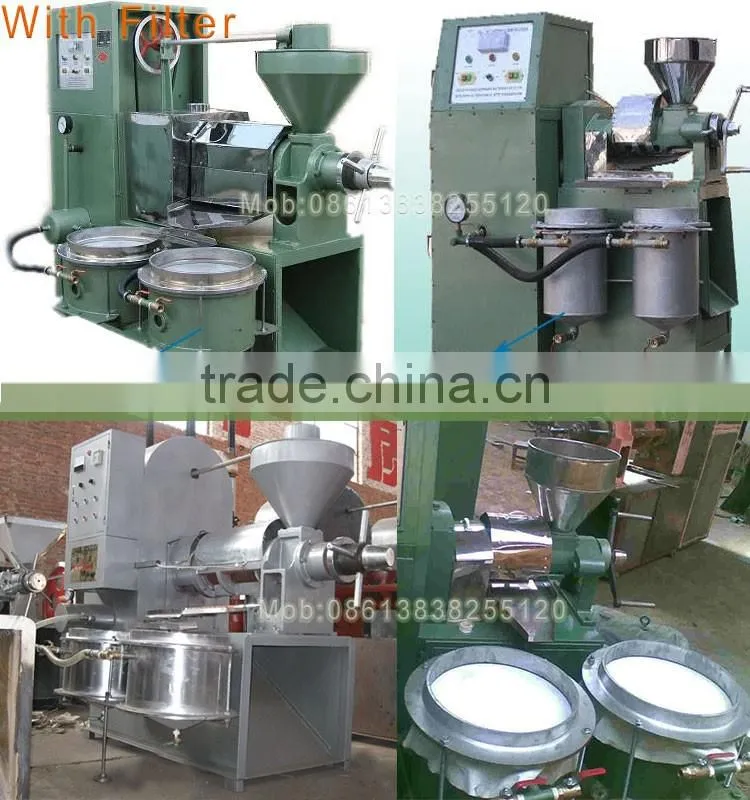

Detailed Pictures of Oil Press Machine
Application Part of Oil Press Machine

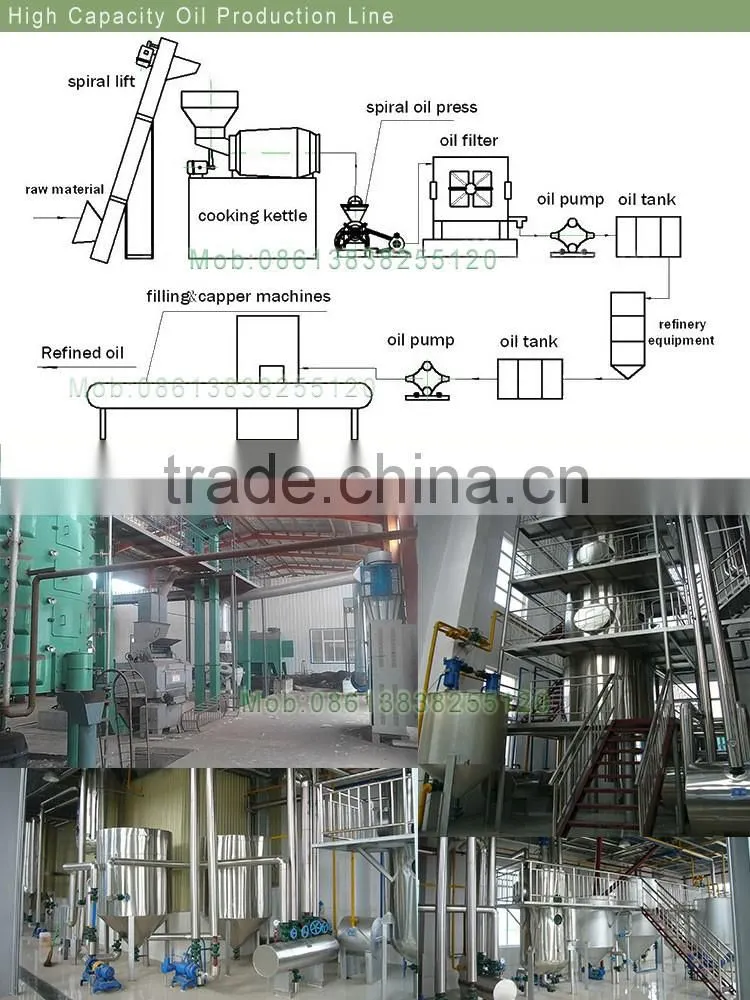

Production Flows of Oil Press Machine
If you need the industrialization, large-scale, high capacity to produce oil, we support full automatic oil production line customized. For more details, please contact me freely.
Recommend Other Popular Related Machine for Your Reference

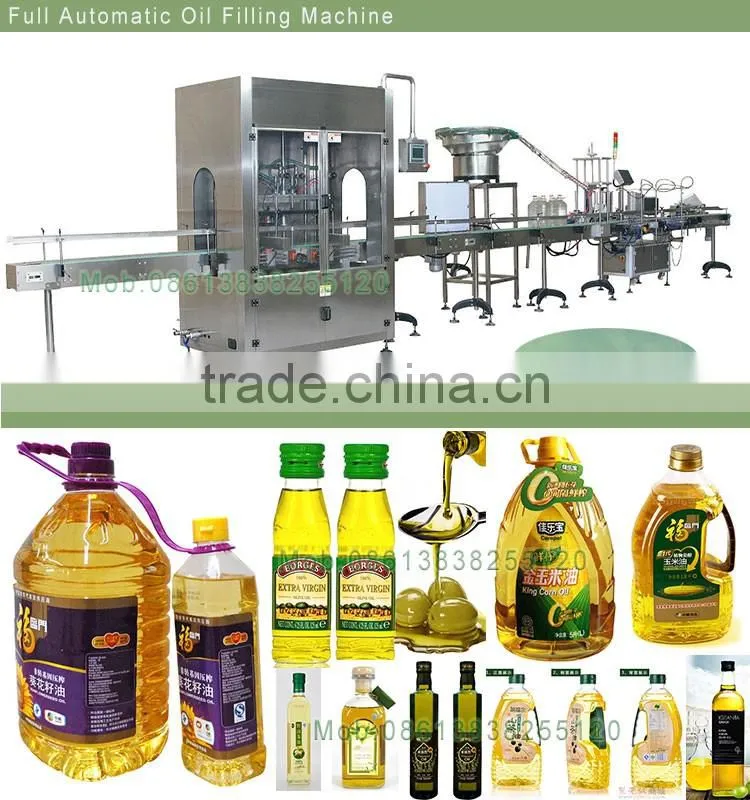

Full automatic oil filling machine is specially made for all liquid materials, such as water, gel, shampoo, oil olive oil, motor oil etc. oil filling machine adopts piston pump and for filling.
By adjusting the position pump, it can fill many kinds of the bottles in one filling machine, with quick speed and high precision. Oil filling machine can fill different shapes of bottle such as circular, round, flat, square, etc.
Our oil filling machine is suitable for glass bottle and plastic bottle.
The filling capacity can be adjustable, the filling volume can be varied from 100-5000ml by adjusting the piston pump.

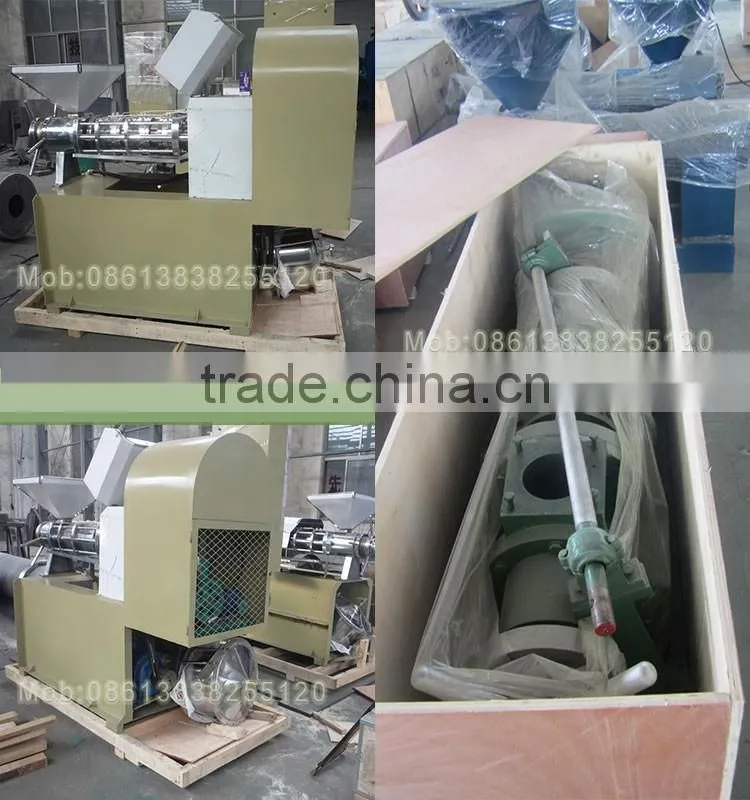

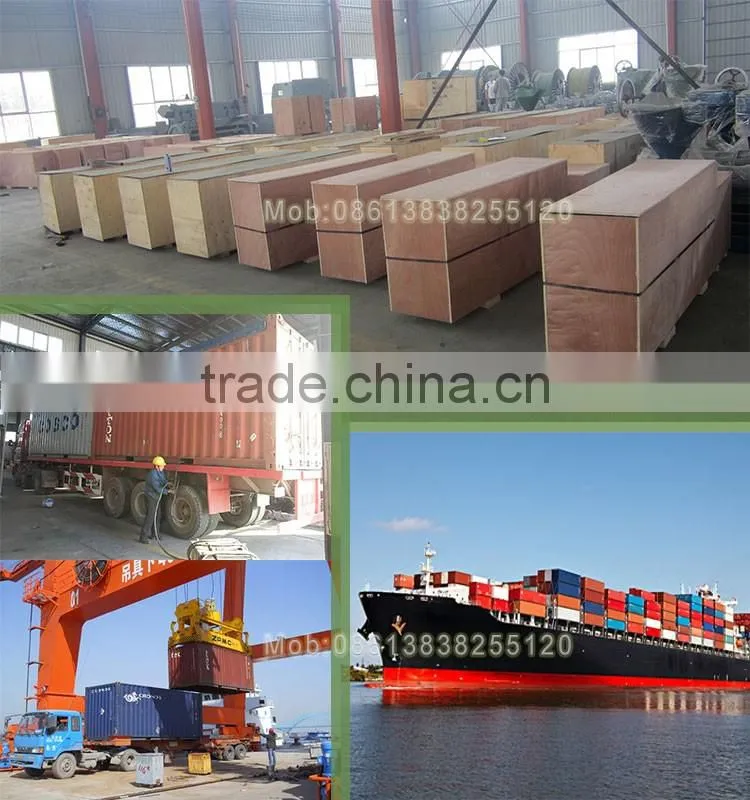

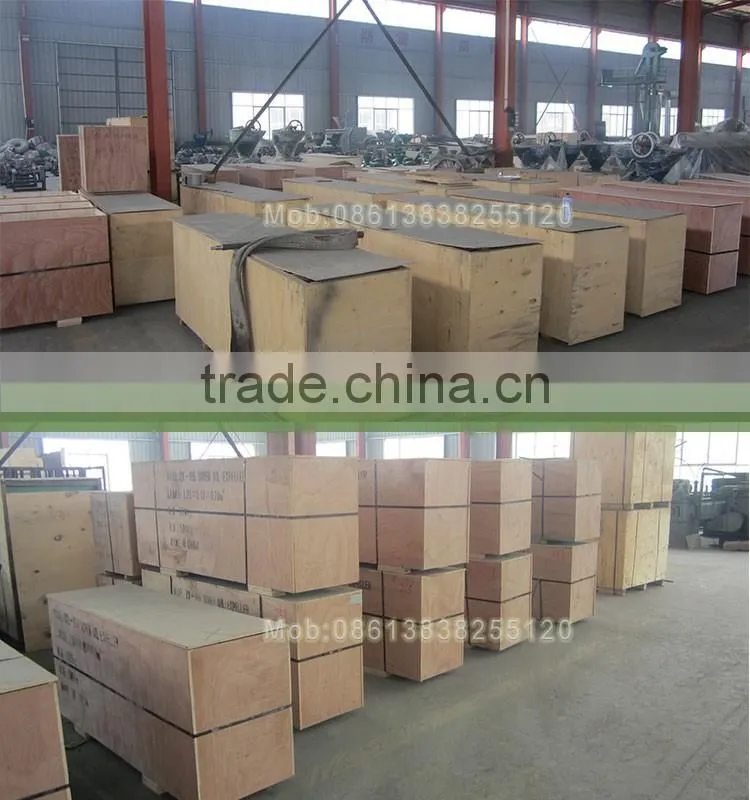

1. The single oil press machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.
Pre-sale:
- Suggest to client suitable models of as customer need.
- Introduce machine's structure and features in detail, explain the price component.
- Answer client concerned questions.
After-sale:
- Documents and certificate available in time.
- One year guarantee for whole machine
- 24 hours technical support by e-mail
- Calling or door-to-door service
- User manual and detailed Videos/CD
- Payment terms: we can accept T/T, L/C, Western Union or cash.
- Delivery time: within 10-15 working days after receive the deposit.
- MOQ: 1 set
For more information, pls contact me freely and I will reply you as soon as possible!
We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
