Specifications

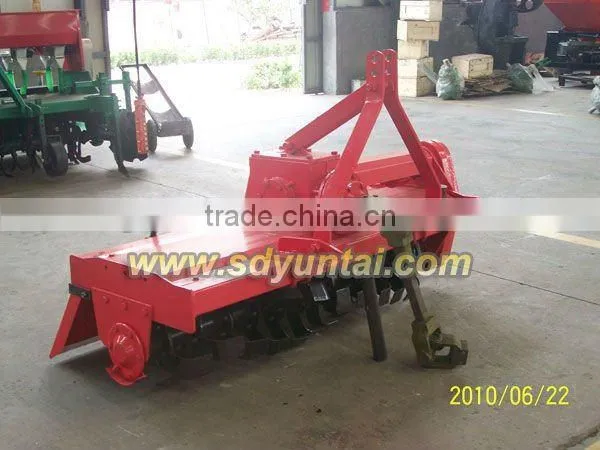

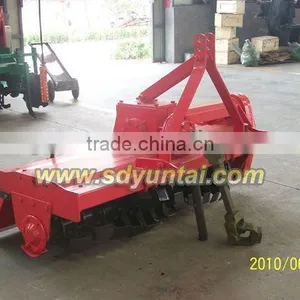

rotavatorwith middle gear drive structure
matched power:12-80HP
With middle gear drive structure matchable for 12-80 horsepower tractor, wide coverage symmetric hanging structure covering tire mark, reliable quality, high performance,suitable for dry land and paddy fields, saving time and effort, with low cost ,ect.
model |
IGQN-125 |
IGQN-140 |
IGQN-150 |
IGQN-160 |
IGQN-180 |
IGQN-200 |
1GQN-230 |
1GQN-250 |
Matched power(HP) |
13.4-14.9 |
18.6-26.1 |
22.5-29.8 |
29.4-36.8 |
36.8-44.1 |
40.4-51.5 |
58-73 |
68-78 |
Cultivating width(mm) |
1250 |
1400 |
1500 |
1600 |
1800 |
2000 |
2300 |
2500 |
Cultivating depth(mm) |
dry farming:100-140; wet farming:120-160 |
dry farming:140-160; wet farming:160-180 |
||||||
Knife type |
IT225 |
IT245 |
||||||
Productivity(ha/hr.) |
0.09-0.46 |
0.1-0.52 |
0.1-0.6 |
0.12-0.62 |
0.2-0.65 |
0.3-0.74 |
0.38-0.81 |
0.41-0.91 |
PTO speed(rpm) |
540 |
720 |
720 |
540 |
540 |
720 |
720 |
1000 |
Turning speed of knife shaft(rpm) |
221 |
247 |
247 |
201 |
235 |
226 |
267 |
|
Oil cost(kg/h) |
6-10 |
8-12 |
8-12 |
10-15 |
10-15 |
15-18 |
15-18 |
15-18 |
Overall dimension(mm)(L*W*H) |
960*1456*1096 |
960*1656*1096 |
960*1756*1096 |
960*1856*1096 |
2100*1020*1150 |
2300*1020*1150 |
2650*1020*1150 |
2850*1020*1150 |
Weight(kg) |
248 |
253 |
268 |
368 |
377 |
391 |
413 |
430 |
