Specifications
1.Automatic control2.Simple operation
3.Easy to master
5.60m3 concrete batching plant with spare parts
6.ISO9001:2008

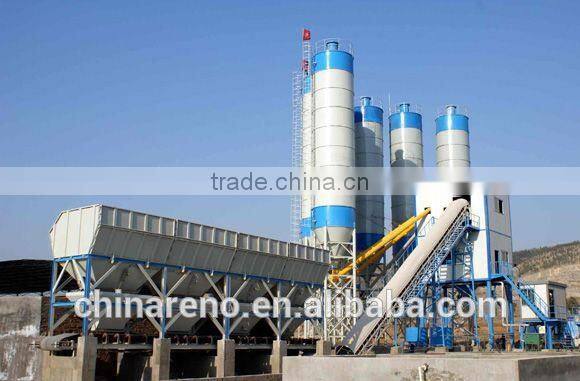

China machinery 60m3 concrete batching plant on sale
This concrete batching plant is consisted of a mixing console, material weighing system, material handling systems, material storage system and control system and other ancillary facilities.
It is not only have mixing plant’s advantage, investment province High movability, small footprint and other point, but also process the advantage of mixing station, high production efficacy and functional reliability.
Main components of 60m3 concrete batching plant

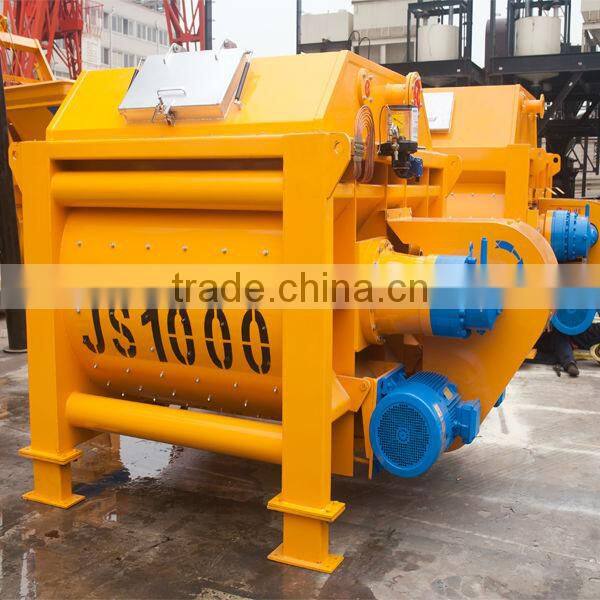

Host mixer JS1000 of 60m3 concrete batching plant
Scaleboard and mixing blades is good,special shaft end seal,longer service life
Supporting batching machine PLD3200 of 60m3 concrete batching plant concrete batching plant
The excellent performance of load cell, weighing accurate and stable.
Control system of 60m3 concrete batching plant
Alternative operating models,automatic,semi-automatic and manual
Cement silo of 60m3 concrete batching plant
Easy to delivery, operated easily
Screw Conveyor of 60m3 concrete batching plant
high rotation speed, large feeding quantity
Parameters of 60m3 concrete batching plant
Type |
HLS60 |
HLS90 |
||
|
Theoretical Production (m3/h) |
60 |
90 |
||
Mixer |
Type |
JS1000 |
JS1500 |
|
|
Power (kw) |
2*22 |
2*30 |
||
|
Discharging Capacity (m3) |
1 |
1.5 |
||
|
Aggregate Diameter (mm) |
60 |
80 |
||
Aggregate Bin (m3) |
13 |
13 |
||
|
Belt Conveying Capacity (t/h) |
300 |
450 |
||
Weighing Accuracy |
Aggregate (kg) |
1200±2% |
2000±2% |
|
|
Cement (kg) |
600±1% |
1000±1% |
||
|
Fly Ash (kg) |
300±1% |
400±1% |
||
|
Water (kg) |
350±1% |
500±1% |
||
|
Additives (kg) |
30±1% |
50±1% |
||
Total Power (kw) |
85 |
115 |
||
Discharging Height (m) |
≥3.8 |
≥3.8 |
||
The whole weight(t) |
50 |
60 |
||
Application of 60m3 concrete batching plant
HLS60 concrete batching plant can be used for units of road, railway,
water and electricity, port, tunnel, bridge, airport, concrete precast,
and commercial concrete.
The concrete mixing plant is our main product in our company, they are of good quality
and reasonable price.
If you are interested in our products, please contact me as soon as possible.
