Specifications
Electric control concrete batching plant1. Accurate and reliable weighing
2. Well-dosed
Electric control concrete batching plant with low price
HZS 25 Ready Mixed Concrete Batching Plant is a new type of mobile concrete mixing plant.
It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station.
Detailed Pictures
HZS25 Electric control concrete batching plant with low price: PLD1200 Concrete batching machine, JS500 Concrete mixer, 60T Cement silo, Belt conveyor, Spiral conveyor.

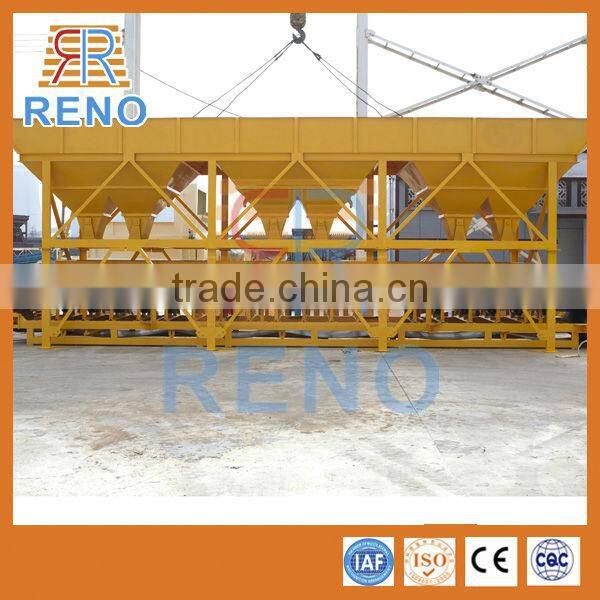

1. PLD series concrete batching machine is used to weighing multiple materials such as sand, cobble and cement together according to customers proportioning plan.

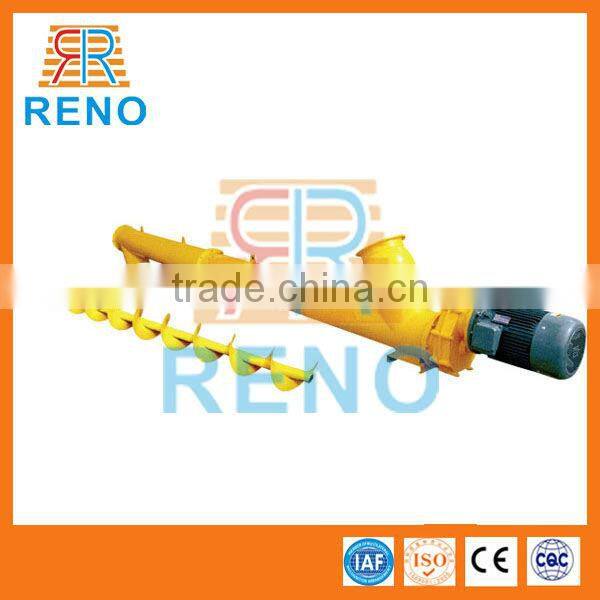

2. Screw Conveyor is used to conveying the powder from cement silo to the concrete mixer.

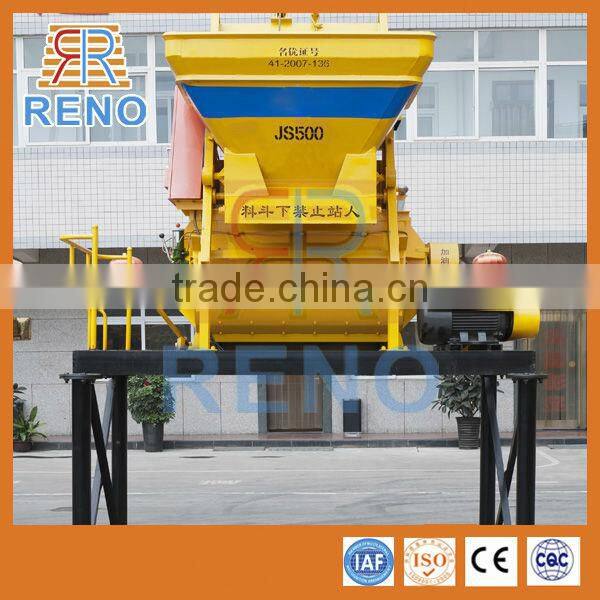

3. Concrete mixer is the most important machine in this concrete mixing plant. The type of cement mixer decided by the output of concrete plant.
4. The Control Room is used to control the whole procedure of producing the concrete, so you can stop the whole plant in time if there is one part goes wrong.
Technical Parameters of Electric control concrete batching plant with low price
Type |
HZS25 |
HZS35 |
HZS50 |
HZS150 |
||
Theoretical Production (m3/h) |
25 |
35 |
50 |
150 |
||
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS3000 |
|
Power (KW) |
18.5 |
30 |
2X22 |
2X55 |
||
Discharging Capacity(m3) |
0.5 |
0.75 |
1 |
3 |
||
Aggregate Diameter(mm) |
60 |
60 |
60 |
80 |
||
Aggregate Bin (m3) |
10 |
10 |
13 |
30 |
||
Belt Conveying Capacity (t/h) |
260 |
280 |
300 |
650 |
||
Weighing Accuracy |
Aggregate(KG) |
1000±2% |
1000±2% |
1200±2% |
3000±2% |
|
Cement(KG) |
350±1% |
450±1% |
600±1% |
1800±1% |
||
Fly Ash (KG) |
280±1% |
300±1% |
300±1% |
500±1% |
||
Water(KG) |
300±1% |
300±1% |
350±1% |
800±1% |
||
Additives(KG) |
25±1% |
25±1% |
30±1% |
80±1% |
||
Total Power (Kw) |
55 |
65 |
85 |
170 |
||
Discharging Height (M) |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
||

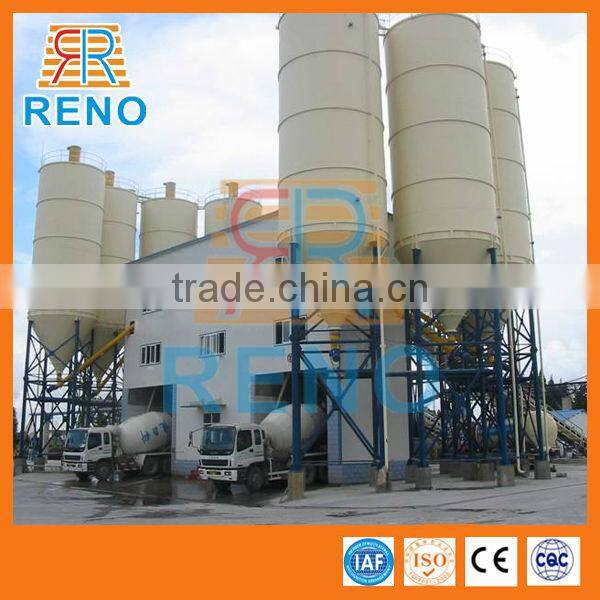

The Installation scene of Electric control concrete batching plant with low price
The Concrete Batching Plant We build in Cairo
The concrete batching plant we build in Malaysia
The concrete batching plant we build in Russia
After-sale-services
1. Spare parts will be delivered as you need.
2. Reno engineers will go to Client’s buliding site for guiding the installation and test-running.
3. Warranty period: 12 months since the installation and commisioning;
4. Reno service team will fellow every placed order regularly till warranty period finished
We also supply
· Concrete batching plant (HLS series, HZS series)
· Concrete mixer(JDseries,JSseries,JZCseries,JZMseries,JZRseries
· Stabilized soil mixing station
· Concrete truck(HJC series, HYC series)
· PLD concrete batching machine
· Cement silo
· LSY screw conveyor
· Belt conveyor
· Control system
Choose Reno Choose Success
Professional team will service for you
We are looking forward to cooperate with you!
