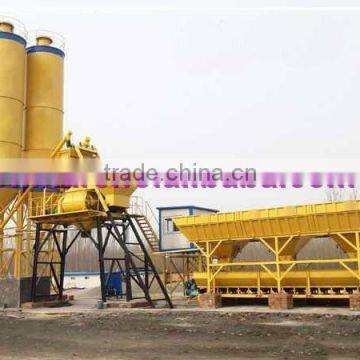

Henan sales best concrete batching plant low price

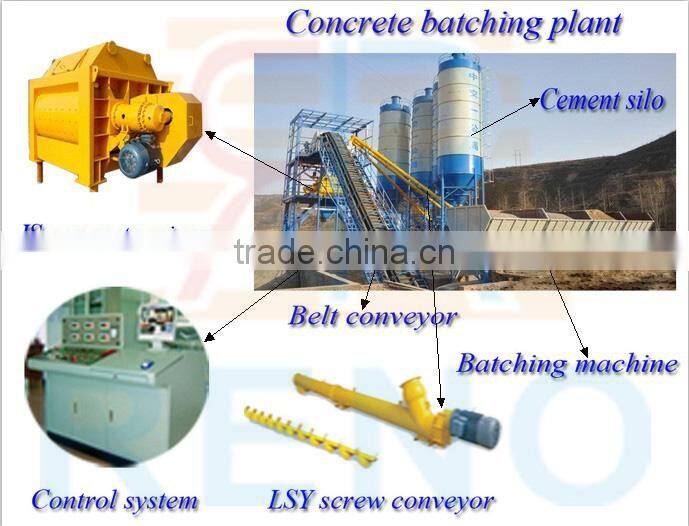

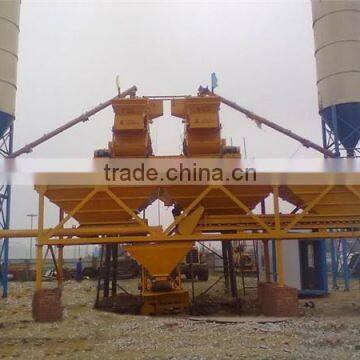

HZS automatic concrete mixing plant is mainly composed of mixing system, materials weighing system, material conveying system, material storage system and control system of large system and other ancillary facilities.

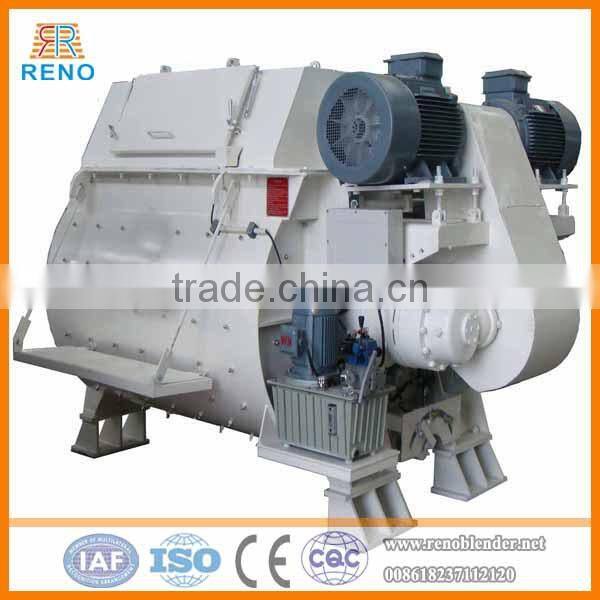

1. Mixing system: JS 2000 twin-shaft cement mixer has characteristics of good mixing quality,high work efficiency,energy conservation,easy operation,little noise and so on .

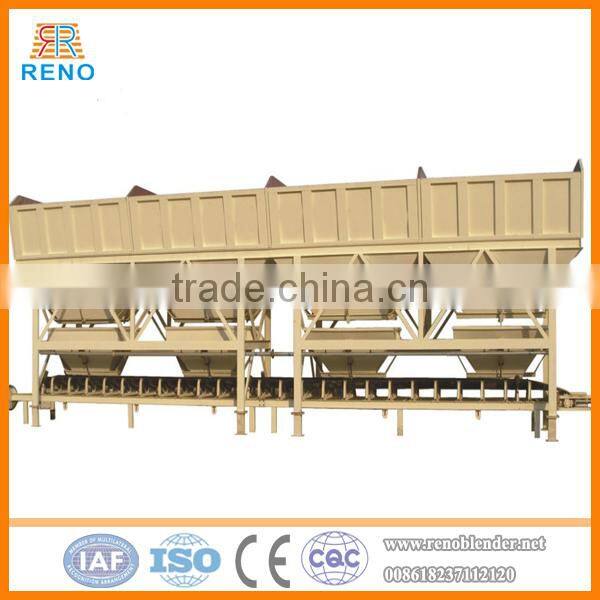

2. Materials weighing system: PLD series concrete batching machine adopt electronic weighing,computer control ,digital display,wired remote control operation.

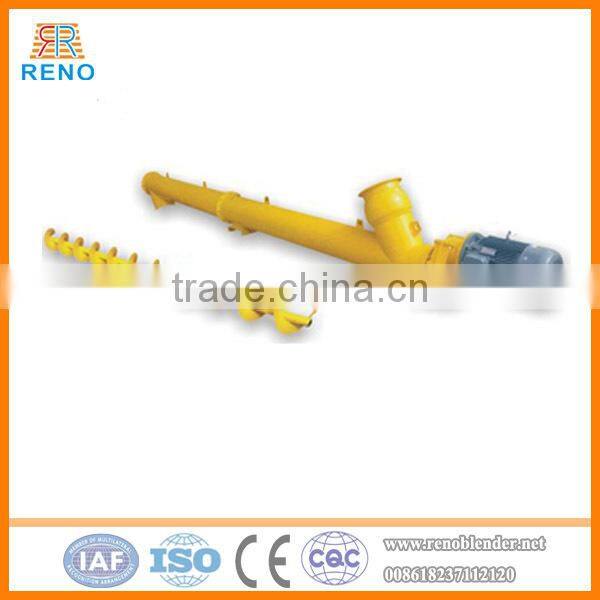

3. Material conveying system: LSY series spiral conveyor using rotating spiral blade continuous push materials.

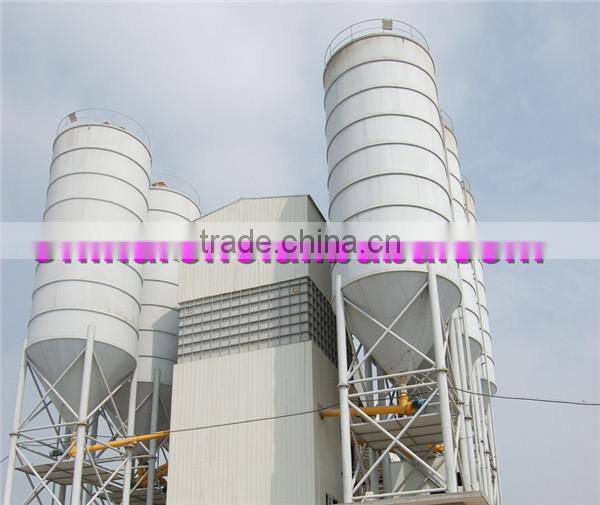

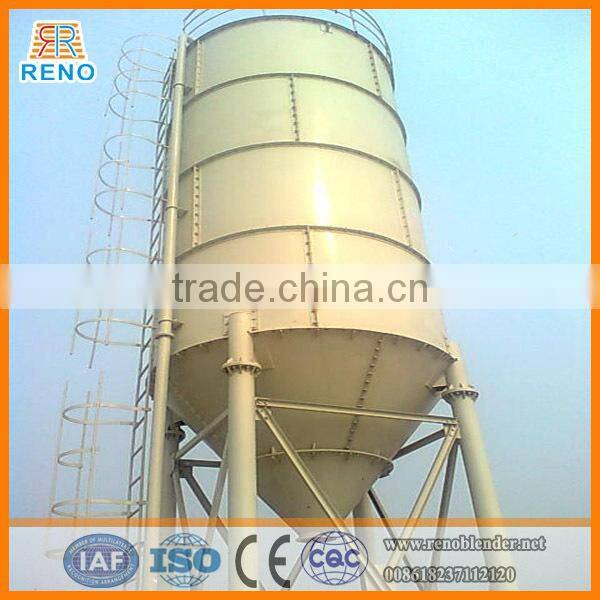

4. Material storage system : Concrete silo suitable for dry bulk cement and fly ash, has many characteristics of waterproof, moistureproof, easy to use.
5. Control system: PLC control system is multi-task, high intelligence, high stability automatic control system.
Advantages:
1,Low cost, easy operation
2,Easy to maintain, environment friendly
3,High reliability, precise measurement and long service life
4,High strength structure, excellent mixing performance
Working process:
Application:
Available for many applications, this high efficiency concrete mixing plant is widely
used in water conservancy, electric power, railway, road, tunnel, the arch of bridge,
port and the national defense project, etc.
Technical parameter:
Type |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
HZS100 |
HZS150 |
|||
|
Theoretical Production (m3/h) |
25 |
35 |
50 |
75 |
100 |
150 |
|||
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
||
Power (kw) |
18.5 |
30 |
2X22 |
2X30 |
2X37 |
2X55 |
|||
|
Discharging Capacity (m3) |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
|||
|
Aggregate Diameter (mm) |
60 |
60 |
60 |
80 |
80 |
80 |
|||
Aggregate Bin (m3) |
10 |
10 |
13 |
13 |
20 |
30 |
|||
Weighing Accuracy |
Aggregate (kg) |
1000±2% |
1000±2% |
1200±2% |
2000±2% |
2200±2% |
3000±2% |
||
|
Cement (kg) |
350±1% |
450±1% |
600±1% |
1000±1% |
1200±1% |
1800±1% |
|||
|
Fly Ash (kg) |
280±1% |
300±1% |
300±1% |
400±1% |
400±1% |
500±1% |
|||
Water (kg) |
300±1% |
300±1% |
350±1% |
500±1% |
500±1% |
800±1% |
|||
|
Additives (kg) |
25±1% |
25±1% |
30±1% |
50±1% |
50±1% |
80±1% |
|||
Total Power (kw) |
55 |
65 |
85 |
115 |
130 |
170 |
|||
Discharging Height (m) |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
|||
Our service:
1.Spare parts will be delivered as you need.
2.Warranty period:12 months since the installation and commissioning.
3.Reno engineers will go to Client’s building site for guiding installation and test-running.
4.Reno service team will fellow every placed order regularly till warranty period finished.
We also supply:
Concrete batching plant (HLS series, HZS series)
Concrete mixer(JDseries,JSseries,JZCseries,JZMseries,JZRseries)
Stabilized soil mixing station
Concrete truck(HJC series, HYC series)
PLD concrete batching machine
Cement silo
LSY screw conveyor

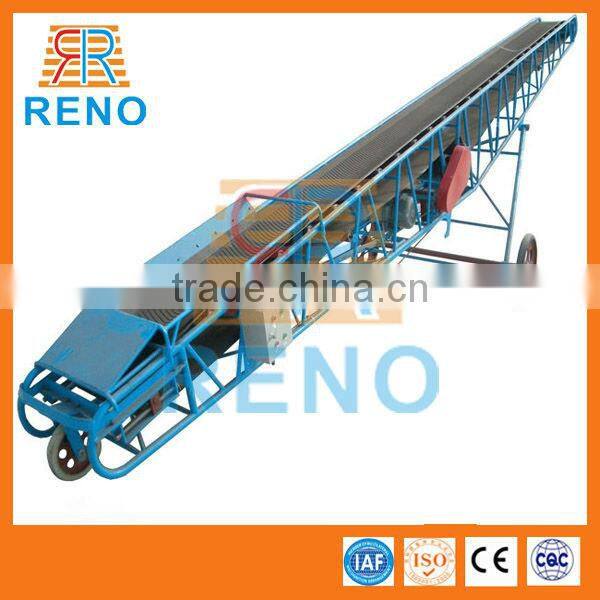

Belt conveyor
Control room
Choose Reno Choose Success
*************************************************
Contact:Rebecca
Phone: 008618237112120
Skype: renomixer
WhatsApp:+86 15290810350
Web: chinareno.en.china.cn

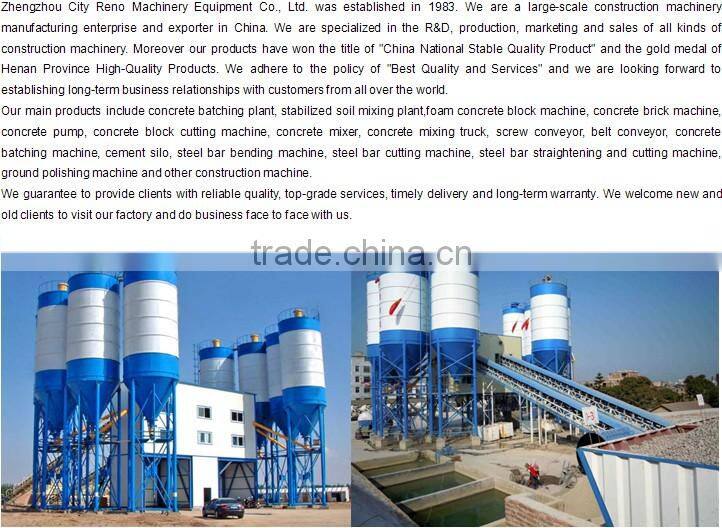

Zhengzhou City Reno Machinery Equipment Co Ltd
**************************************************************************************
