Precast concrete batch plant is adopting twin-shaft compulsory mixer, it can mix evenly and efficiency. Driven by IPC, the operation is easy and highly automatic, which qualifies it for large-scale infrastructure projects in the construction of roads, bridges, dams, airports and ports.

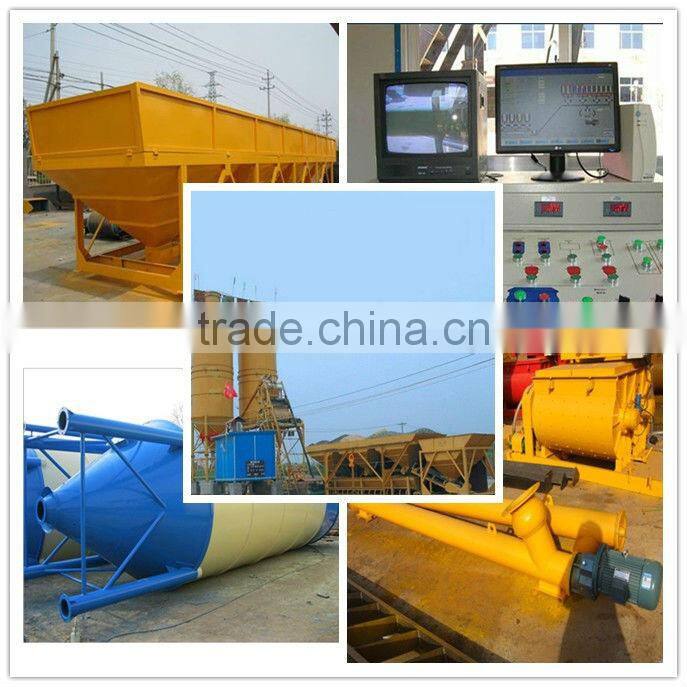

Main parts of precast concrete batch plant

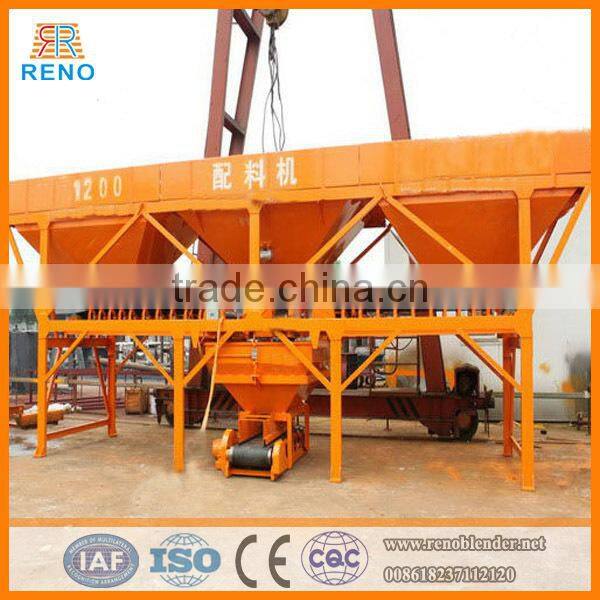

1. Batcher: with 3(4) aggregate bins and adopt accumulative weighing system.

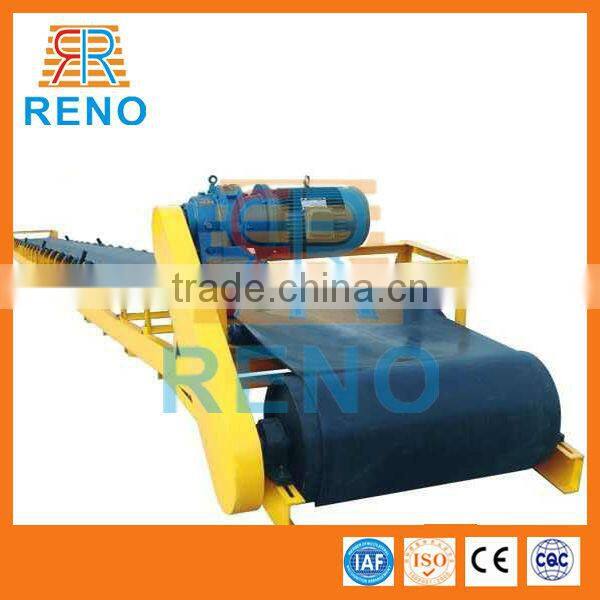

2. Conveyor: adopting the guard belt , it can distribute the material fast and stability, and it with cleaning device.

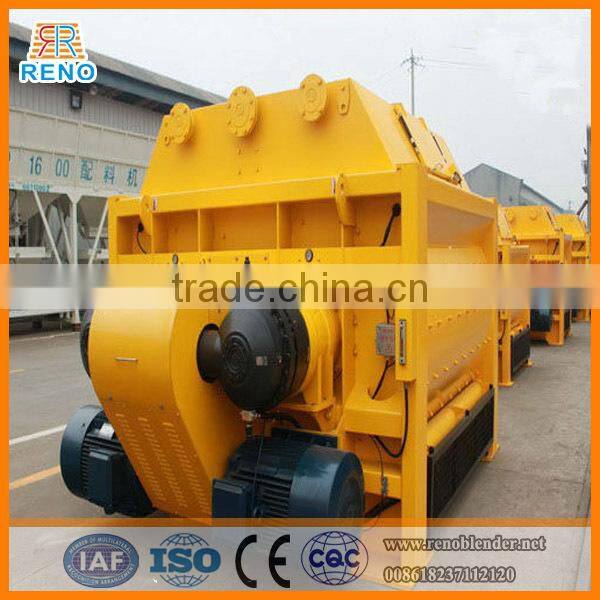

3. Mixer: adopting twin-shaft compulsory , it can mix evenly and fast, the ability is strong.

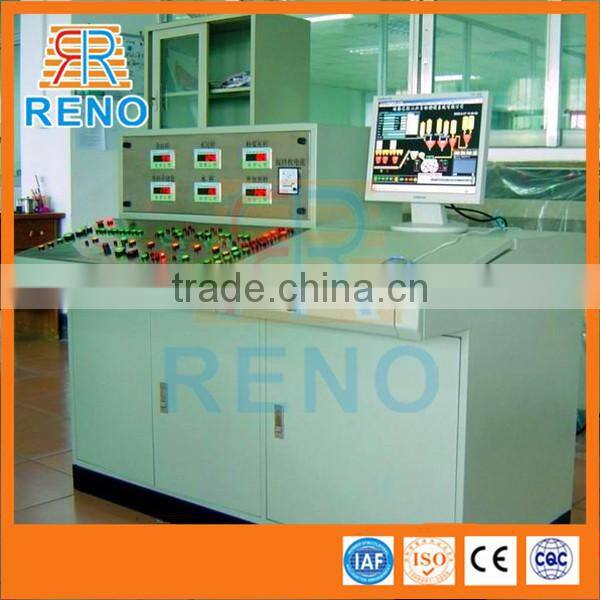

4. Control system: controlled by computer with whole auto-operate, with the 15 years experience, the controlling procedure is designed perfectly. and the system needn't professional to operate. the people who get simple training can operate.

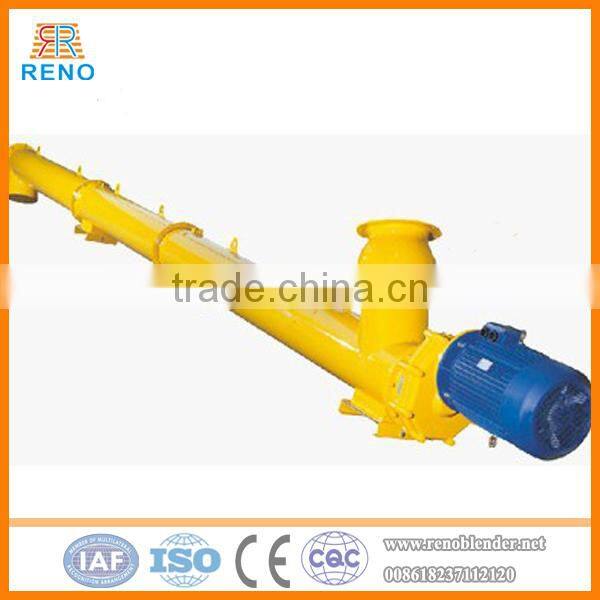

5. LSY Screw Conveyor: manufactured in carbon steel with a suitable surface finishing and powder coating.

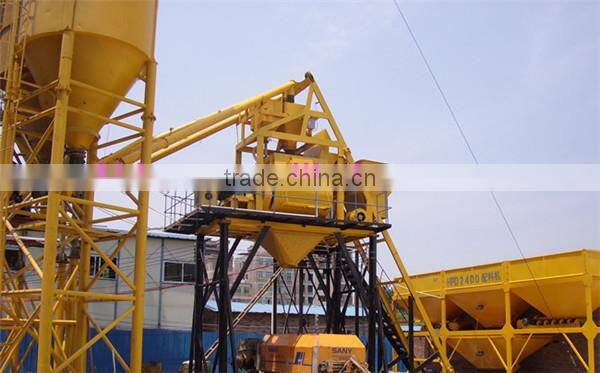

Pictures of precast concrete batch plant
Technical Parameters of HZS precast concrete mixing plant
Type |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
HZS100 |
HZS150 |
||
|
Theoretical Production (m3/h) |
25 |
35 |
50 |
75 |
100 |
150 |
||
Mixer |
Type |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
|
|
Power (kw) |
18.5 |
30 |
2X22 |
2X30 |
2X37 |
2X55 |
||
|
Discharging Capacity (m3) |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
||
|
Aggregate Diameter (mm) |
60 |
60 |
60 |
80 |
80 |
80 |
||
Aggregate Bin (m3) |
10 |
10 |
13 |
13 |
20 |
30 |
||
|
Belt Conveying Capacity (t/h) |
260 |
280 |
300 |
450 |
550 |
650 |
||
Weighing Accuracy |
Aggregate (kg) |
1000±2% |
1000±2% |
1200±2% |
2000±2% |
2200±2% |
3000±2% |
|
|
Cement (kg) |
350±1% |
450±1% |
600±1% |
1000±1% |
1200±1% |
1800±1% |
||
|
Fly Ash (kg) |
280±1% |
300±1% |
300±1% |
400±1% |
400±1% |
500±1% |
||
|
Water (kg) |
300±1% |
300±1% |
350±1% |
500±1% |
500±1% |
800±1% |
||
|
Additives (kg) |
25±1% |
25±1% |
30±1% |
50±1% |
50±1% |
80±1% |
||
Total Power (kw) |
55 |
65 |
85 |
115 |
130 |
170 |
||
Discharging Height (m) |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8 |
≥3.8
|
||

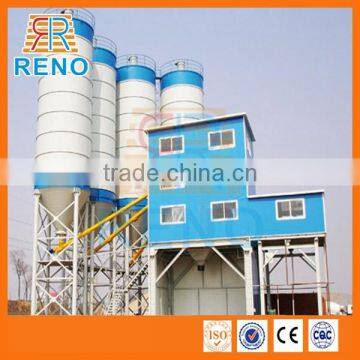

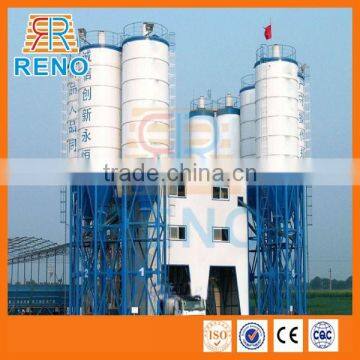

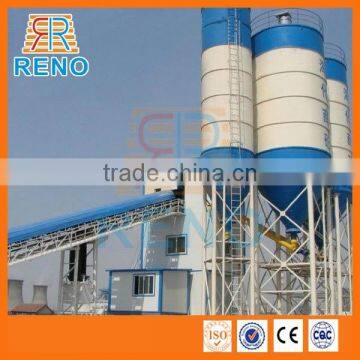

The scene of precast concrete batch plant

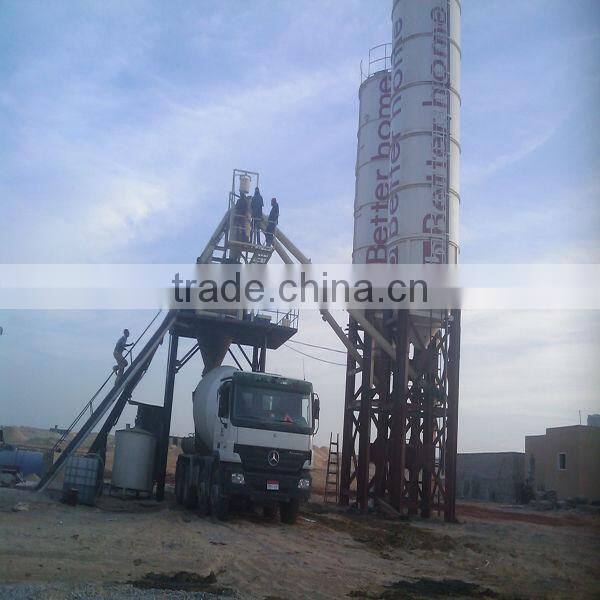

HZS precast concrete batch plant we build in Cairo

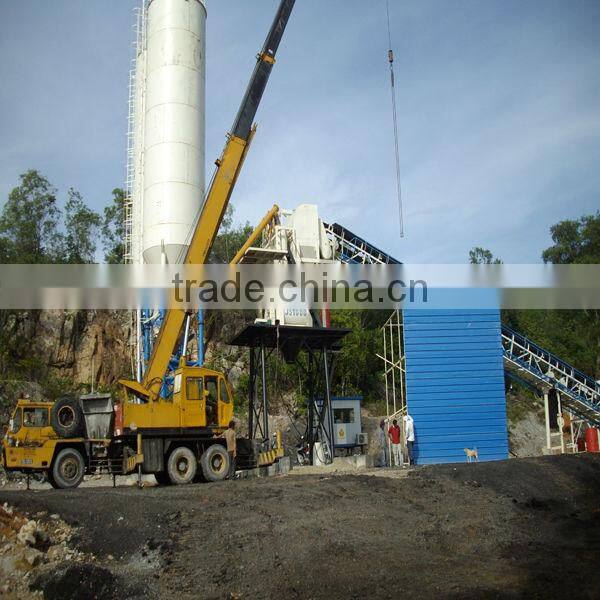

HZS precast concrete batch plant we build in Malaysia

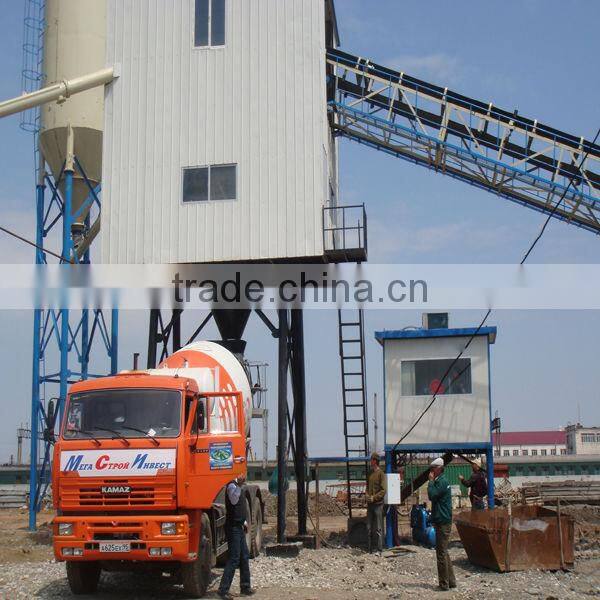

HZS precast concrete batch plant we build in Russia
