Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

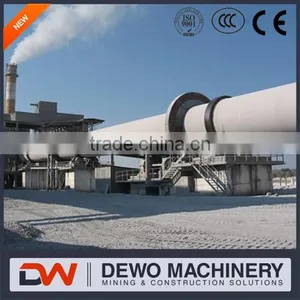

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China thumbnail-1
Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China photo-1
US$ 10,100 - 100,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
95%
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Henan Dewo Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Shanghai Port Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 95%
Place of Origin Henan, China
Brand Name Dewo
Model Number Rotary Kiln
Voltage 220v/380v/400v/440v
Power(W) 30kw
Dimension(L*W*H) 1.9x1.9x26-4.9x4.9x76
Weight 34t
Certification ISO9001:2008
Warranty 12 Months, 12 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

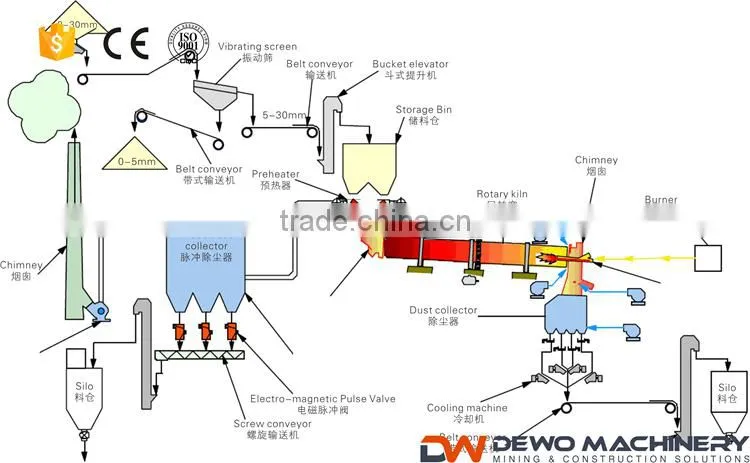

Lime rotary kiln is the main equipment of lime production line. It is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc.

The rotary lime kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc., the kiln body has a certain tilt angle with level.

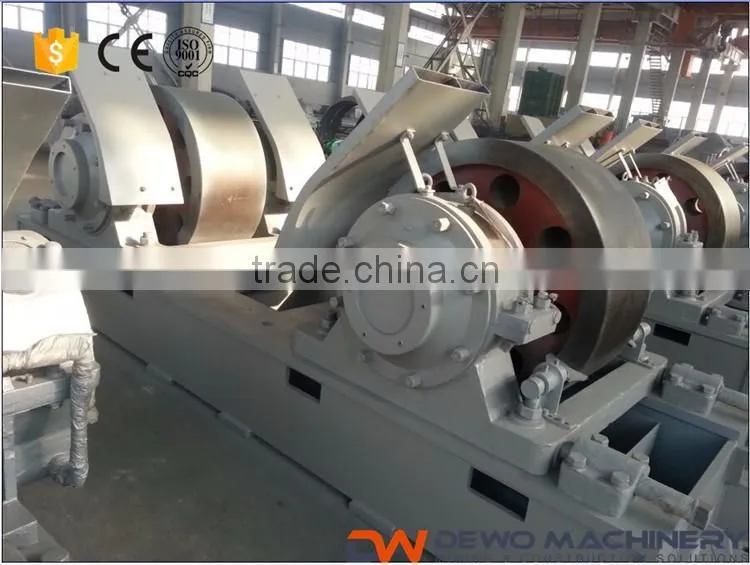

The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.(send us a inqury for more data about it)

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Machine Features



          1. High Automation Level

The lime rotary kiln is with advanced structure. Its pre-heater with low-pressure loss can improve preheating effect efficiently. After preheating, the resolution ratio of the lime-stones can reach 20~25% when they enter the kiln. Besides, the lime-stones, with fine fraction about 10~15mm, can be used directly.

2.Waste Heat be Reused Effectively

The two sides of the reliable rotary kiln are sealed by the combined scales, which can make the air leakage coefficient less than 10%. Composite refractory materials should be used in order to reduce the loss of radiant heat.

3.Low Energy Consumption

The filling vertical cooler, round or square, can be zoned-ventilation, which can make the temperature of lime-stones in the cooler at about 80°C. As a result, it is very convenient to transport and store. It can also pre-heater the secondary air up to the temperature above 700°C, then the waste heat can be recycled to reduce energy consumption.

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

Technical Parameter



Model

Output (t/d)

Main Drive (r/min)

Motor (kW)

Regulating Range (r/min)

Gearbox Velocity Ratio

Weight (t)

Φ2.2×50

96

0.125-1.25

30

132-1320

157

130.71

Φ2.5×50

130

0.516-1.549

55

440-1320

99.96

167.5

Φ3×48

850

0.3309-3.309

90

100-1000

32.11

237

Φ3.2×48

1000

0.375-3.75

160

100-1000

27.469

252

Φ3.2×50

1200

0.398-3.975

190

150-1500

40.85

263

Φ3.3×52

1200

0.391-3.91

190

100-1000

27.707

280.8

Φ4×60

2500

0.396-3.96

315

100-1000

34.601

487.5

Φ4.2×60

2800

0.4165-4.165

420

100-1000

35.526

576.1

Φ4.3×62

3000

0.398-3.98

420

100-1000

35.714

598.5

Φ4.3×64

3200

0.449~4.49

450

100~1000

24.365

585

Φ4.5×66

4000

0.41~4.1

630

100~1000

34.069

710.4

Φ4.8×70

5000~5500

0.4~4.0

630

100-1000

30.876

845.3

Φ4.8×72

5000

0.403~4.03

560

100~1000

30.365

847

Φ4.8×74

5000

0.35~4

630

130~1500

42.226

841

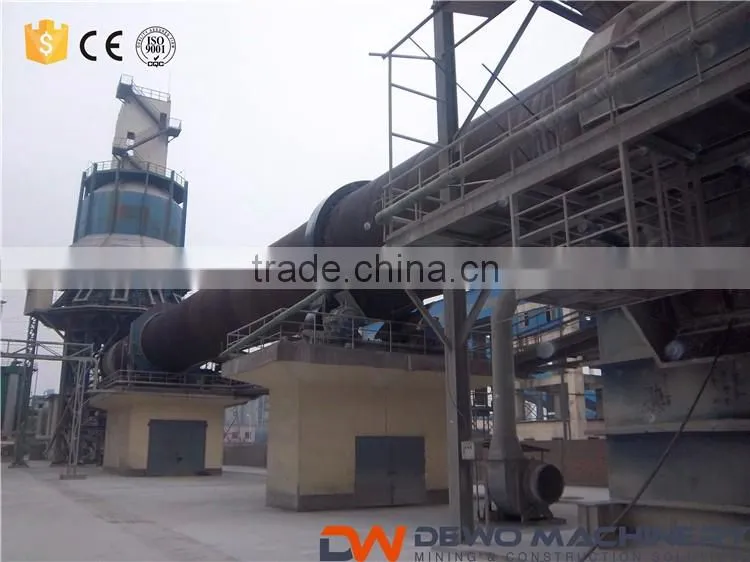

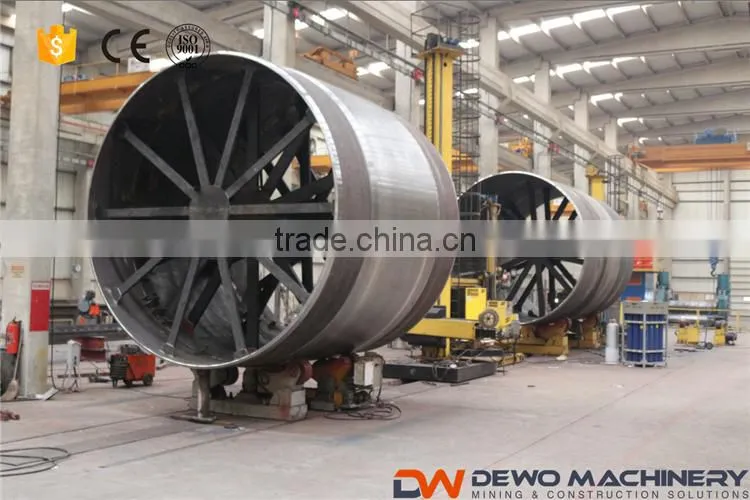

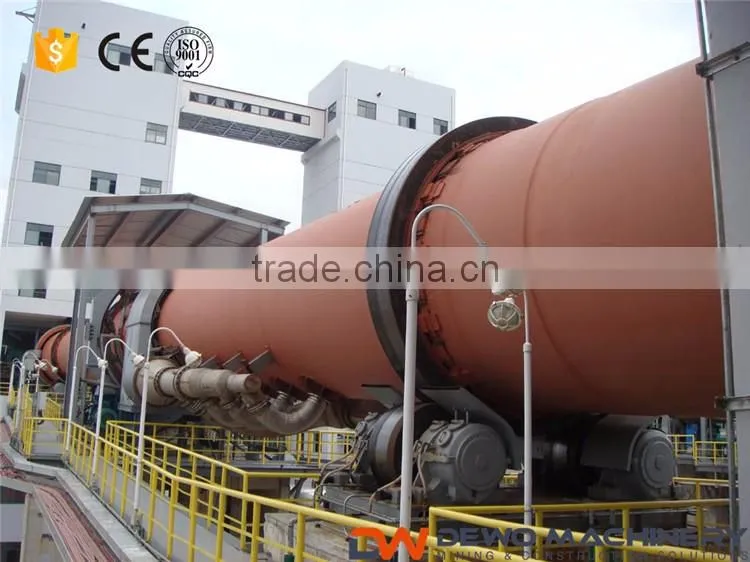

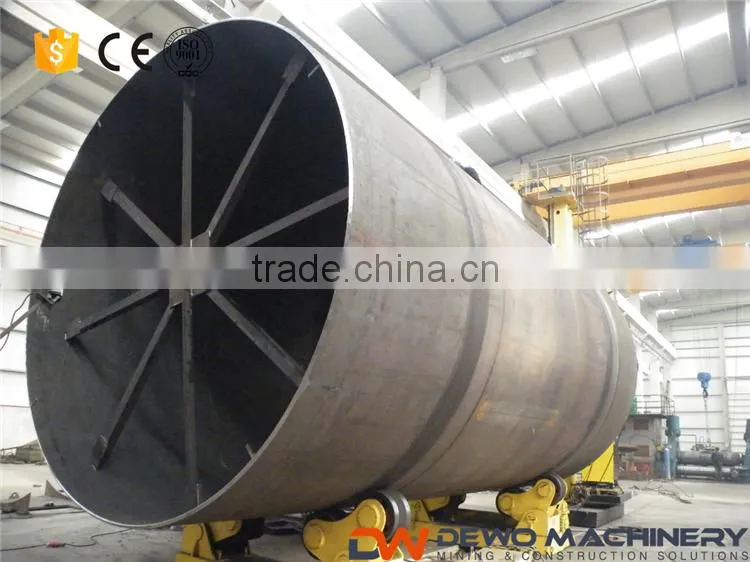

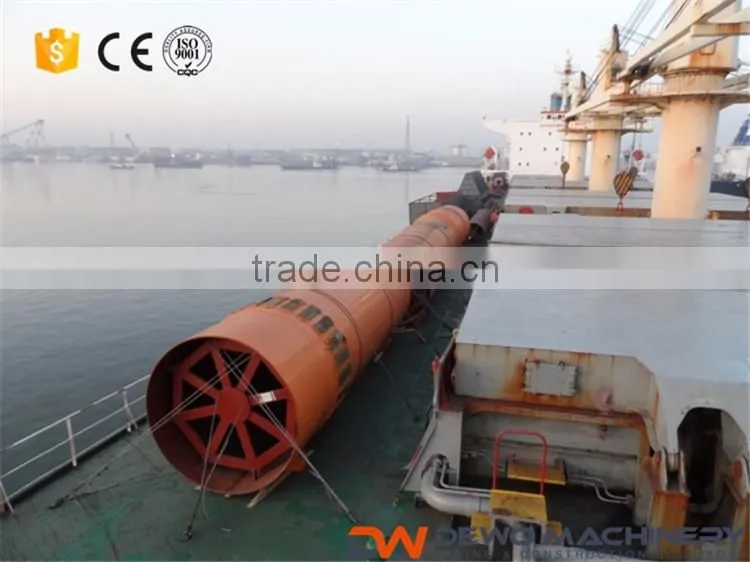

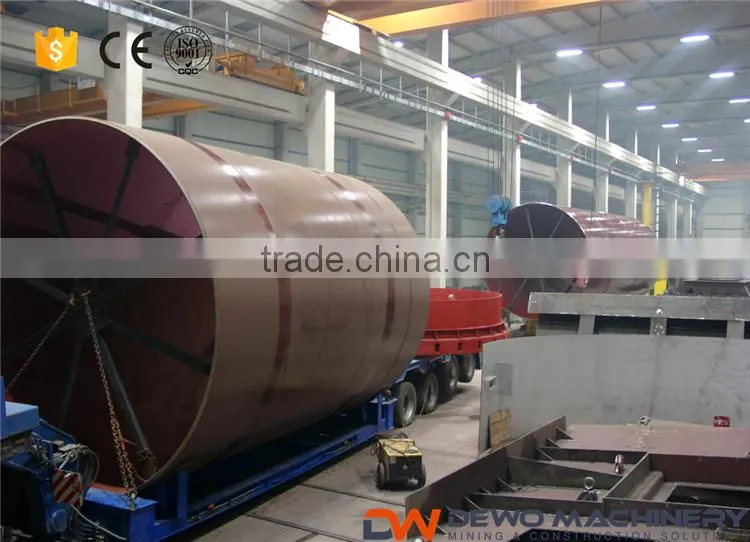

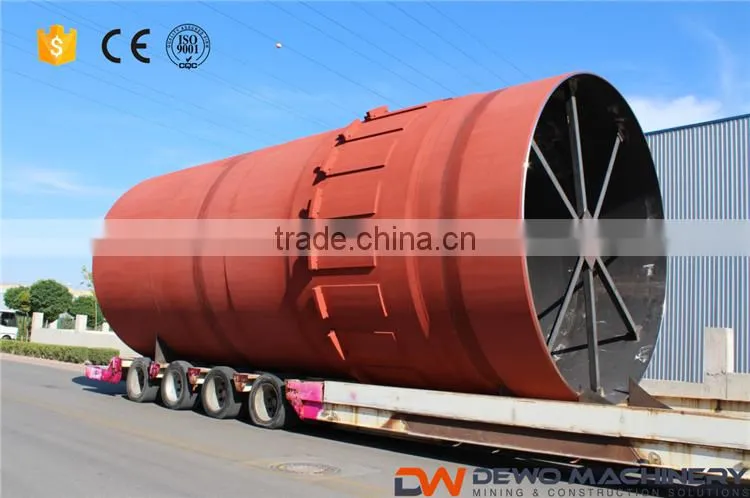

Detailed Images



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China



Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

Lime Calcination Machine 500tpd Rotary Kiln Manufacture in China

Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Q: What about Warranty of the products?
A: Dewo Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose Dewo Machinery:
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
