Introduction:

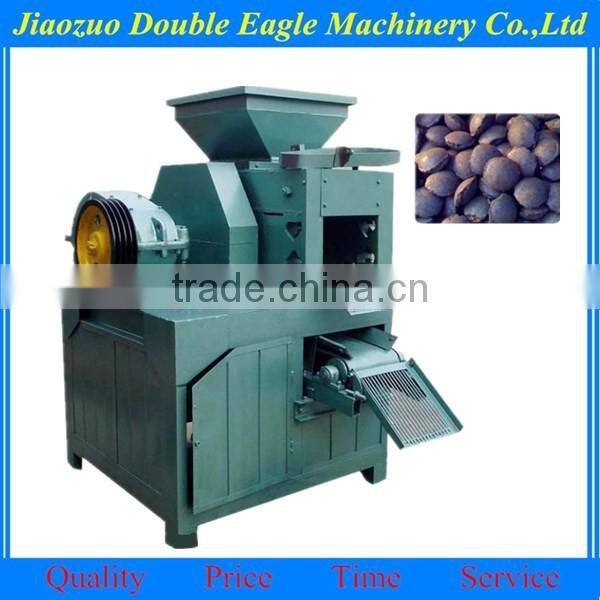

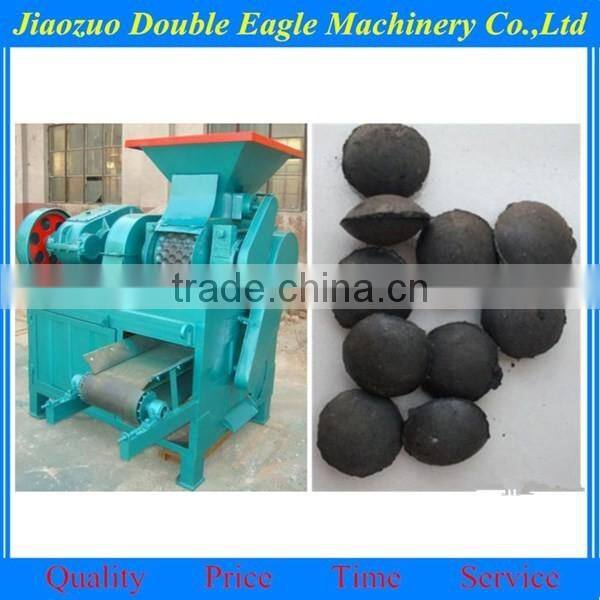

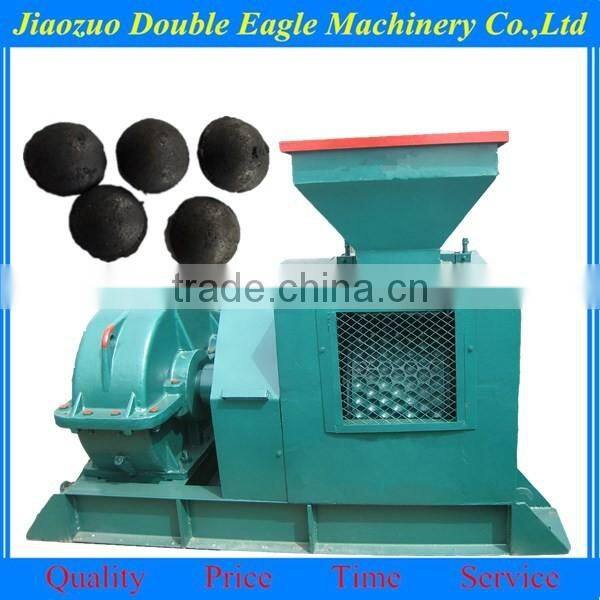

Coal ball press machine also is called coal powder press ball machine which can press variety powder or particle mineral powder into globular, elliptical, oval shape etc. The powder can be Iron ore powder, iron powder, fluorite powder, silicon powder, aluminum powder, magnesium powder. So this machine is a kind of energy conservation and environmental protection good machine.
The machine’s roll skin uses 65 manganese casting. After special heat treatment hardness can reach more than 58 degrees. Roll skin adopts combined assembly and can be replaced after wear and tear.
Also the machine has a buffer device and can better protect equipment from hard object impact.
Structure:
1. Feeding part: can reach quantitative feeding to ensure material evenly into the space of rollers.
2. Transmission part: motor-Triangle Strip-reducer-exposed gear-roller
3. Forming part:rollers
Technical parameter:
Model |
SYYQ290 |
SYYQ360 |
SYYQ400 |
SYYQ500 |
SYYQ650 |
SYYQ750 |
SYYQ850 |
Power |
5.5-7.5KW |
7.5KW |
11KW |
18.5KW |
37-45KW |
45-55KW |
75KW |
Output |
1-2T/H |
3T/H |
4T/H |
6-8T/H |
22T/H |
30T/H |
40T/H |
Roller diameter |
290mm |
360mm |
400mm |
500mm |
650mm |
750mm |
850mm |
Weight |
1000kg |
1200kg |
1450kg |
2800kg |
3700kg |
8700kg |
9800kg |
