Home > Sporting Goods & Recreation > Pet Supplies > Food Bowl & Water Bowl > Huabo CE Chicken Farm Poultry Silo

Huabo CE Chicken Farm Poultry Silo

Name: Huabo CE Chicken Farm Poultry Silo
Brand: Huabo
SKU: 139122245
Availability: InStock

Huabo CE Chicken Farm Poultry Silo thumbnail-1

Huabo CE Chicken Farm Poultry Silo photo-1

US$ 750 - 1,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Huabo

Model Number:

HBS

Contact Supplier Request Quote Chat Now

Qingdao Rilian Huabo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Huabo

Model Number HBS

Specifications

Huabo chicken farm poultry silo
1. Zink coating180g-275g/stere
2. from 2.5Ton to 25ton
3. 20year use time
4. CE

Huabo CE chicken farm poultry silo

Product Description

Huabo chicken farm poultry silo cosists of silo body sheets, silo lid, collar, hopper sheets, roof panels, silo legs, ladder system. All parts are manufatured to engineering design specifications and quality checked to ensure hassle-free assembly and use.

Eight Shinning Points of Huabo chicken farm poultry silo

1	Roof	Perfect Roof Degree, 40°.
2	Body sheet	Zink coating with 180kgs-275kgs/mxm, Thickness:1mm,1.2mm,1.5mm
3	Hopper sheets	At seam place of two hopper sheets, there is a rib and rubber seal strip to strenghthen the hopper.
4	Weather Guard	Make the moisture drip off the silo's sidewall which helps to keep water off the silo's hopper and boot.
5	Silo lid	When open, the lid uplifts and then slide away. In this case, it could open and close easily evern in big wind.
6	Hopper window	It helps to watch the feed condition in silo.
7	Ladder	Sturdy and safe

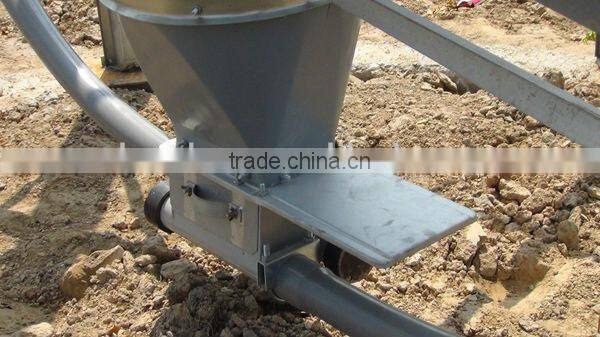

8	Silo Boot	Single way outlet/two-outlet/three-outlet/four-outlet boot 45°/180° boot.

Four Models desiged for your choice-Huabo chicken farm poultry silo

1.8M Diameter Feed Silo W/60^o Hopper

Model Number	Metric Tons	Cubic Meter	Height(M)
18-0060-1	2.9 tons	4.5 m³	3.5 m
18-0060-2	4.4 tons	6.8 m³	4.4 m
18-0060-3	5.8 tons	9.0 m³	5.3 m

2.75M Diameter Feed Silo W/60^o Hopper

Model Number	Metric Tons	Cubic Meter	Height(M)
27-0060-1	7.8 tons	12.1 m³	4.8 m
27-0060-2	11.2 tons	17.4 m³	5.7 m
27-0060-3	14.6 tons	22.6 m³	6.6 m

3.05M Diameter Feed Silo W/60^o Hopper

Model Number	Metric Tons	Cubic Meter	Height(M)
30-0060-1	10.0 tons	15.6 m³	5.0 m
30-0060-2	14.0 tons	22.2 m³	5.9 m
30-0060-3	18.6 tons	28.8 m³	6.8 m

3.6M Diameter Feed Silo W/60^o Hopper

Model Number	Metric Tons	Cubic Meter	Height(M)
36-0060-1	16.0 tons	25.0 m³	6.0 m
36-0060-2	21.6 tons	33.5 m³	6.9 m
36-0060-3	27.0 tons	42.0 m³	7.8 m

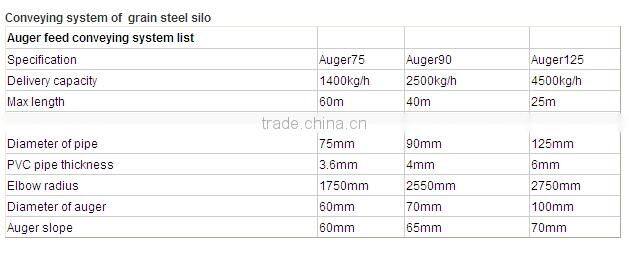

Connected with Auger pipe to convey- Huabo chicken farm poultry silo

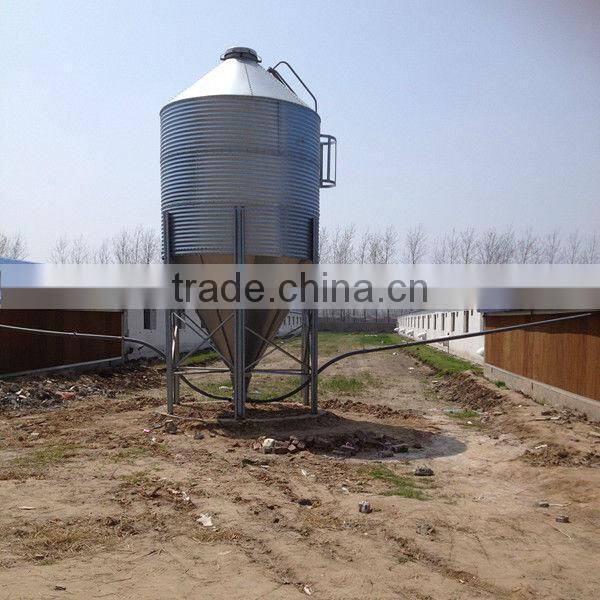

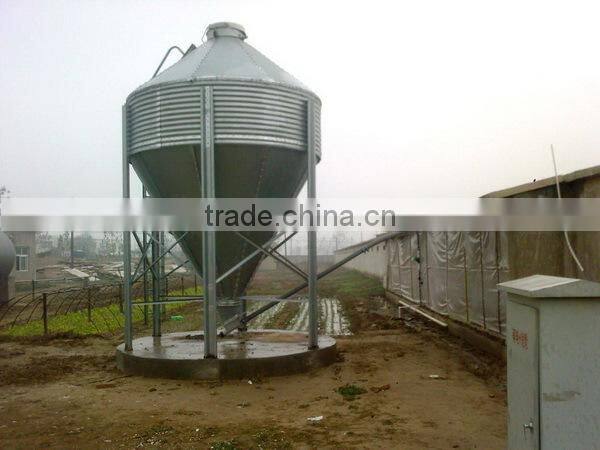

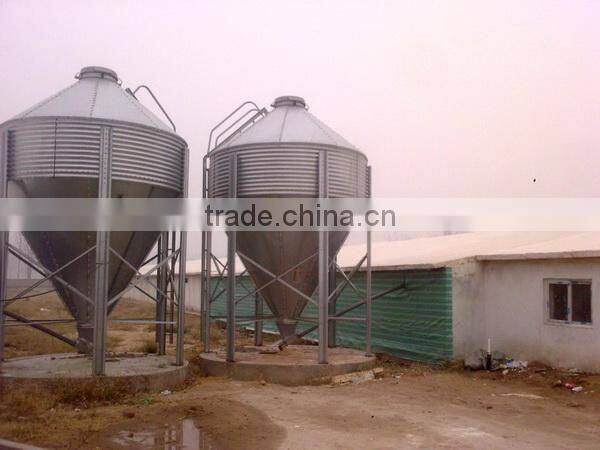

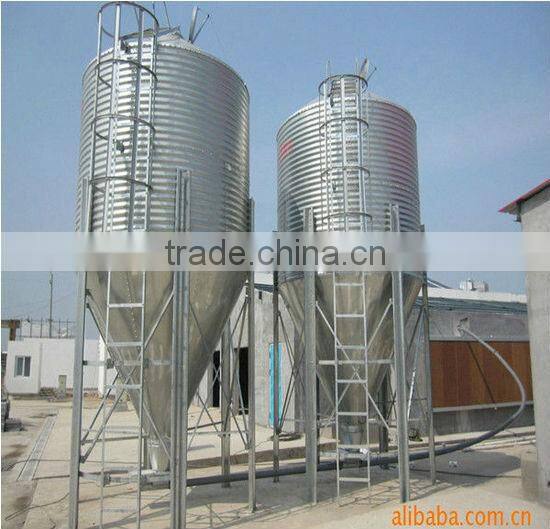

In the chicken farm- Huabo chicken farm poultry silo :

One silo with 45degree single boot supplying for one chicken farm

One silo with 180 degree double-way boot supplying for two chicken houses.

Two silo with 180 degree single way boot working for one chicken farm.

Packaging & Shipping

Huabo chicken farm poultry silo

1.Silo galvanized sheet will be wrapped together by plastic shrink;

2.The aguer and delivery pipes will be load directly into container

3.Other spare parts will be packed in the carton box:

FAQ

Huabo chicken farm poultry silo

1.How about your installation guide material?

Julin: We have detailed Silo Installation Guid Book, which is highly appreciated by most of our customers! Also, the installation vedio also available for you to follow in an easier way!
