Specifications
Huabo silos for chickens1. Zink coating180g-275g/stere
2. capacities from 2.5Ton to 25ton
3. 20 years use time

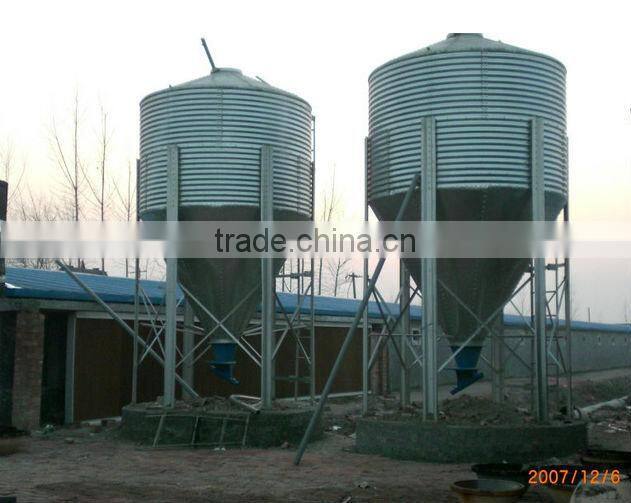

Huabo silos for chickens
Huabo silos for chickens cosists of silo body sheets, silo lid, collar, hopper sheets, roof panels, silo
legs, ladder system. All parts are manufatured to engineering design specifications and quality checked
to ensure hassle-free assembly and use.
1.Four Models desiged for your choice- Huabo silos for chickens
1.8M Diameter Feed Silo W/60o Hopper
| Model Number | Metric Tons | Cubic Meter | Height(M) |
18-0060-1 |
2.9 tons | 4.5 m3 | 3.5 m |
| 18-0060-2 | 4.4 tons |
6.8 m3 | 4.4 m |
| 18-0060-3 | 5.8 tons | 9.0 m3 | 5.3 m |
2.75M Diameter Feed Silo W/60o Hopper
| Model Number | Metric Tons | Cubic Meter | Height(M) |
27-0060-1 |
7.8 tons | 12.1 m3 | 4.8 m |
| 27-0060-2 | 11.2 tons |
17.4 m3 | 5.7 m |
| 27-0060-3 | 14.6 tons | 22.6 m3 | 6.6 m |
3.05M Diameter Feed Silo W/60o Hopper
| Model Number | Metric Tons | Cubic Meter | Height(M) |
30-0060-1 |
10.0 tons | 15.6 m3 | 5.0 m |
| 30-0060-2 | 14.0 tons |
22.2 m3 | 5.9 m |
| 30-0060-3 | 18.6 tons | 28.8 m3 | 6.8 m |
3.6M Diameter Feed Silo W/60o Hopper
| Model Number | Metric Tons | Cubic Meter | Height(M) |
36-0060-1 |
16.0 tons | 25.0 m3 | 6.0 m |
| 36-0060-2 | 21.6 tons |
33.5 m3 | 6.9 m |
| 36-0060-3 | 27.0 tons | 42.0 m3 | 7.8 m |

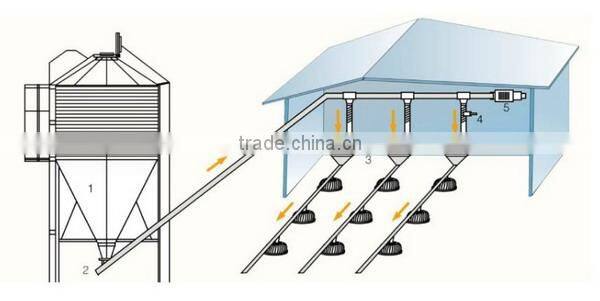

2. Auger delivery to convey- Huabo silos for chickens
Auger is high quality originated from South Africa:
The delivery auger pipe connect with the silo boot:

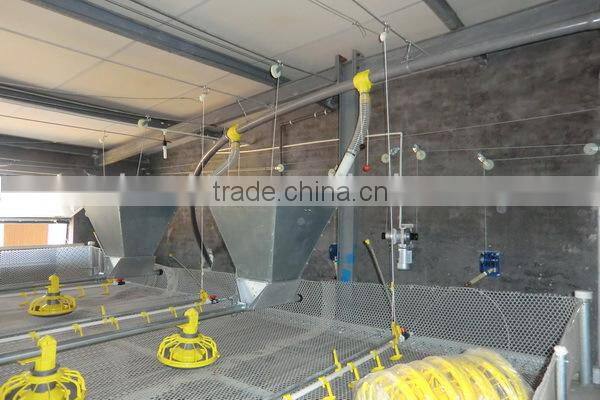

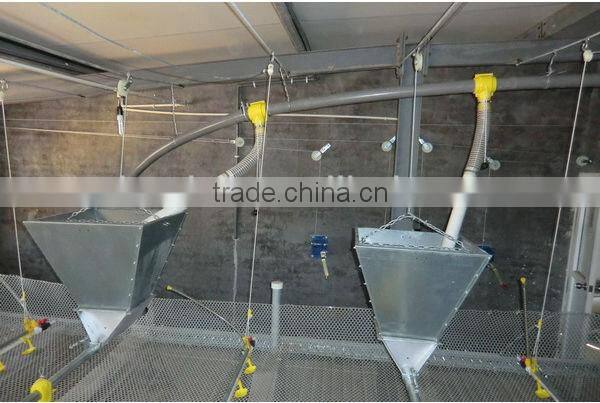

3.Going through the chicken house and covey the feed to the hopper of pan feeding lines by Three Tee:

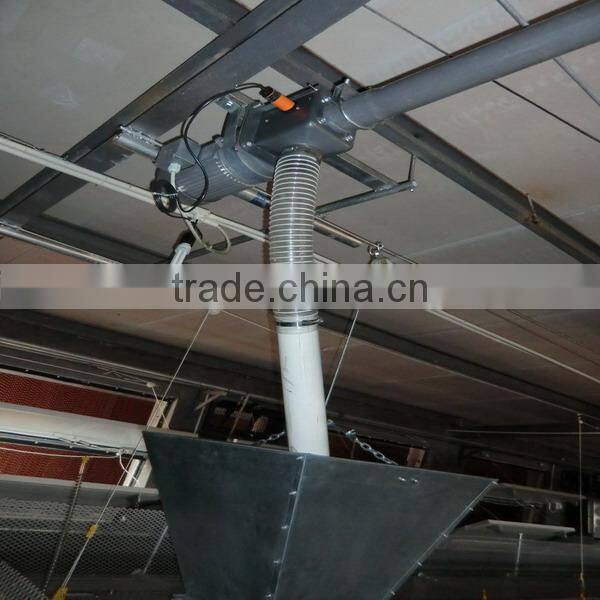

4.The last soft pipe come out from the end control of drive motor instead of three tee:

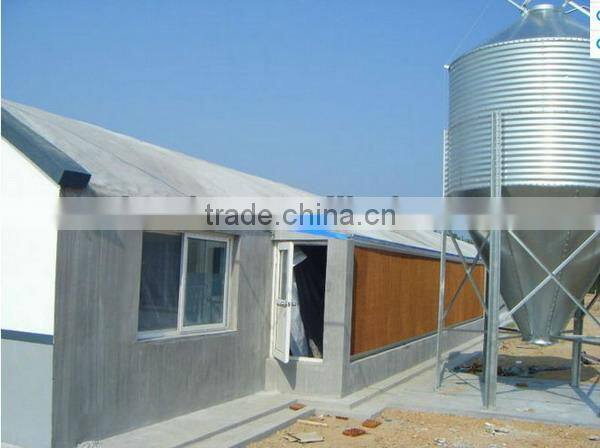

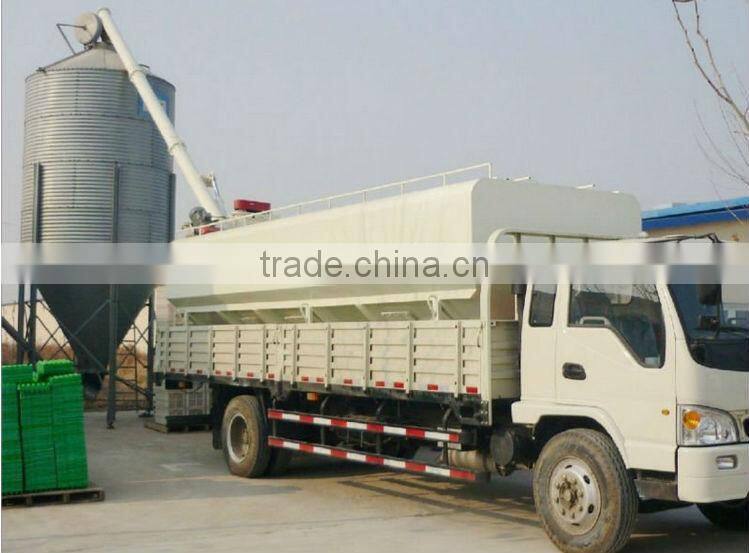

In the chicken farm- Huabo silo for chicken farm
Please click the pic below to find more Huabo product information
Huabo has first-class R&D team,first-class process machine,mould work-shop,and platic injection work-shop.
"First-class service,first-class product,first-class management,first-class project" is our long and lasting purpose.
Huabo would like to grow with our customer
We will design poultry house according to your requests.
We are the professional poultry farm equipment manufacturer. The main products include
-Broiler pan feeding system
-Nipple drinking system
-Breeder pan feeding system
-Breeder chain feeding system
-Silo
-Ventilation fan
-Cooling pad
-Air inlet
-Light trap
-Environmental control system
-Plastic products: Slat & Egg transport box
Welcome to visit Huabo factory
