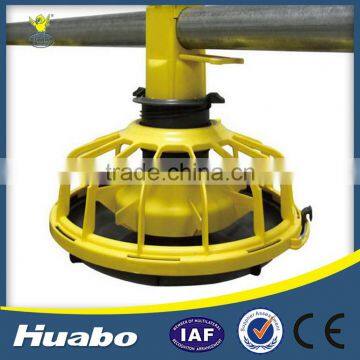

Broiler Feeder Broiler Pan Feeding System
|
Final weight 1.8kg |
Final weight 1.8kg-3kg |
Birds/pan |
57-91 |
57-85 |
Density(birds/square meter ) |
16-20 |
12-16 |
Max daily feed intake |
170g |
175-220g |
Product specification | ||
|
Feed pan |
Diameter |
330mm |
Material |
pp |
|
Pan capacity |
300g |
|
Number of grill |
14 |
|
Grill hole size |
60mm |
|
Pipe&auger |
Material of pipe |
Hot galvanized |
External diameter of auger |
45mm |
|
Distance between feeder |
1000mm 750mm |
|
Max feeding length |
150m |
|
Drive motor |
Drive motor specification |
1.1kw 380v 50hz 0.75kw 380v 50hz |
Delivery capacity |
≥450kg/h |
|
Hopper |
Capacity |
70kg |
♣ Feed pan is ideal for whole raising period from brooding to slaughter.The suitable pan height is easy to get feed.360° feed distribution improve uniformity.
♣ Special designed feed cone with wings prevents feed waste.
♣ Control pan ensure fresh feed supply,provide hygienic feed to birds and excellent feed conversion rate.
♣ Convenient adjustment of feed level.
♣ Feed pan is available to rotate 360 degrees,available to swing vertically or fix without rotation.
♣ Optional shut-off slide, suitable for partition feeding.
♣ Special hinged-type opening at bottom for easy cleaning and disinfection.
♣ Adjustable feeding line of optional position for different period birds.When cleaning, easy to lift.
Qingdao Huabo is the eaeliest suppliers in livestock farming equipment research and development in China.
Our company was founded in 1995;in the past 20years we have been working in product researching,designing,manufacturering and installation services.
Our main product includes: automatic feeding system,drinking systems,environment control systems,cage system for broiler and layers.
Standard constitutor
Huabo has been awarded as the standard constitutor of Chinese poultry nipple industry
Solution provider
Our sales and service network throughout the country, not only to provide customers with quality products, but also professional and comprehensive solution for turkey project, from farm site selection, productive technology selection, farm designing, and installation.
Customized design
We absorbed in meet different requirement of users, our products export to different countries in Asia, Eastern Europe, North & South America, and Africa.
Huabo is the recognized manufacture in worldwide by its excellent performance of product.
Providing Complete Solutions in Poultry Equipment
The modern poultry industry is a large contributor of food throughout the world. Raising a large number of chickens or other poultry for food production requires quality equipment. Huabo is a reliable manufacturer of chicken raising equipment, whose products have been used to raise chickens in humane environments in order to provide the best quality meat and eggs. We supply a variety of poultry equipment and complete solutions for poultry farmers. Our primary products include poultry feeding systems, heating, cooling and ventilation systems, lighting systems and waste removal equipment. As a major poultry equipment supplier in China, we have developed the experience and know-how to meet all of the needs of our customers and help them find the best products and solutions for their specific poultry raising operations. If you are looking for high quality chicken raising equipment, look no further than Huabo.
1.Q:What is the difference of chain conveying and auger conveying?
A: Dear customer, we suggest use chain conveying as stand configuration due to chain conveying could deliver feed into feeder pan evenly.
2.Q:Do you have small capacity hopper for hanging out?
A: Dear customer, yes, we also have 48kgs hopper for this system, but we suggest use 280kgs hopper, in this case make sure enough feed delivered into feeder pan within short time.
3.Q:Could we have sample?
A: Dear customer, yes, of course, sample could be free, but freight charge need customer paid.
