High Efficient Hammer Crusher
Introduction :
Hammer crusher mainly consists of frame, rotor, trapezoidal iron plate, bar grate, etc. And the frame consists of the upper part and the lower part, which are made of welded cut armor plate, while other parts are connected into one by bolts. High manganese steel liners are mounted in the frame and can be replaced after wearing out.
There are several sets of hammers equipped on the main shaft of the hammer crusher in regular distribution. They constitute the rotor with dial and hammer shaft. Driven by the motor and V-belt, the main shaft rotate with rotors. And the rotors spread to the surrounding extensions under the centrifugal force brought from rotating. So when big materials fall into the crushing cavity of hammer crusher, they will be broken into pieces by high speed rotors. The qualified materials after crushing will be discharged from the gap of grate at the bottom, while those unqualified ones will still stay in the crushing part and then discharged when they reach the acceptable size after repeated actions of hammers and trapezoidal iron plates.
Features of hammer crusher :
It is mainly applied to low abrasion materials with medium hardness and compression strength not exceed 100Mpa. Such as coal, salt, chalk, gypsum, bricks, tiles, limestone, etc. It is also used to crush wood chips with strong fiber structure and tenacity, and the waste from asbestos cement to recycle asbestos fiber, etc. In addition, hammer crusher can be not only applied in crushing line and sand production line, but also applied instead of cone crusher.
Technical parameters of hammer crusher :
Model |
UF-P400 |
UF-P500 |
Power |
0.8kw |
1.5kw |
Dimension |
900*700*850mm |
1200*1050*1200mm |
Capacity |
5000kg/h |
10000kg/h |
Weight |
800kg |
1000kg |
Feeding size |
≤200mm |
≤250mm |
Output size |
≤25mm |
≤30mm |

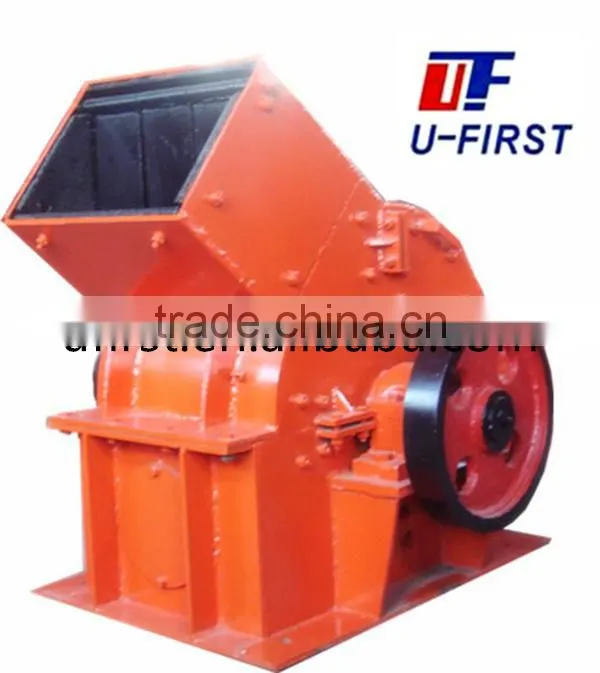

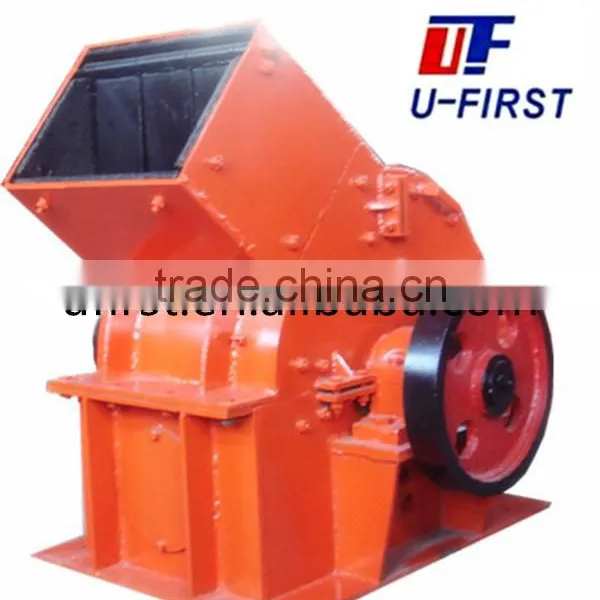

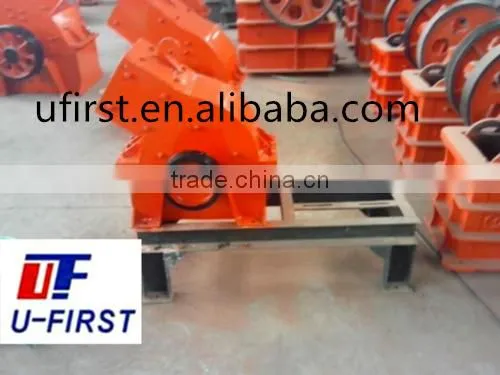

Photos of hammer crushers :
If you want to know more infor , please feel free to contact Jennifer :
