Product Description

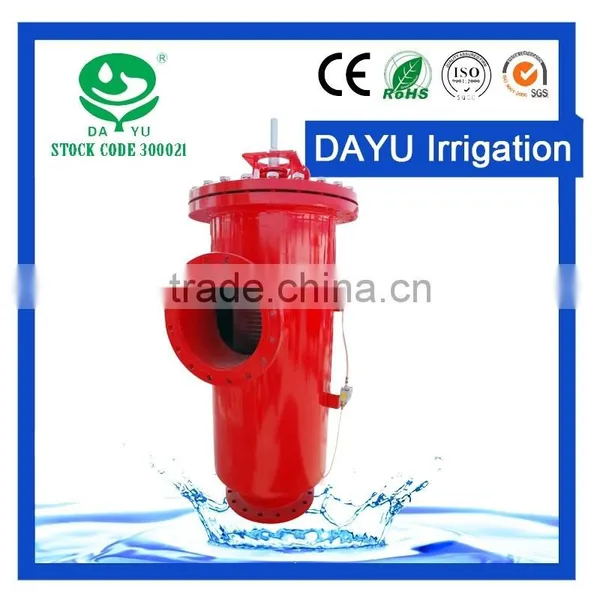

The manual brushaway screen filter, developed and manufactured by Dayu Conserving Water Group Co., Ltd. consists of stainless steel brushes fitted on a frame and inserted into the filter screen. Users can use a handle, outside the filter, to brush away particles from the screen surface, and move them out of the filter. Brushing is done during the filtering process without stopping the water supply.
This type of filter is designed in an advanced and reasonable way. It can effectively remove various organic or inorganic particles, with low resistance and large space for impurities. The filter can be specially installed according to different water sources.
Product Characteristics
1. high filtration accuracy, large filtration area, large space for impurities;
2. easy way of cleaning -- use stainless steel brush to clean the screen
3. the manual operation of cleaning is more reliable;
4. less time and less water for back washing, the water needed is 1% of the total discharge.
5. The filter structure can be designed according to user's requirements. It is convenient to install and disassemble.
Technique Parameter
Model |
DY-CTBJ-100 |
DY-CTBJ-150 |
DY-CTBJ-200 |
DY-CTBJ-300 |
DY-CTBJ-400 |
DY-CTBJ-500 |
Flow Rate (m3/h) |
100 |
150 |
200 |
300 |
400 |
500 |
Min. Working Pressure (Mpa) |
0.1 |
|||||
Max. Working Pressure (Mpa) |
1 |
|||||
Filter Area (cm2) |
2155 |
2985 |
4455 |
6535 |
8670 |
11424 |
Inlet & Outlet Diameter (mm) |
DN125 |
DN150 |
DN200 |
DN250 |
DN250 |
DN300 |
Drainage Valve Diameter (mm) |
DN50~DN80 |
|||||
Drainage Time (s) |
10~60 |
|||||
The hi-tech drip tapes with Dayu brand possess its self-owned intellectual property rights, fill up the blank of China market, reach the world advanced level and represent the latest achievement of drip irrigation technology. Our products are exported to America, South Korea, Australia, South Africa, India etc more than 20 countries and regions. Its annual foreign trade amounts to more than 5 million US dollars.
