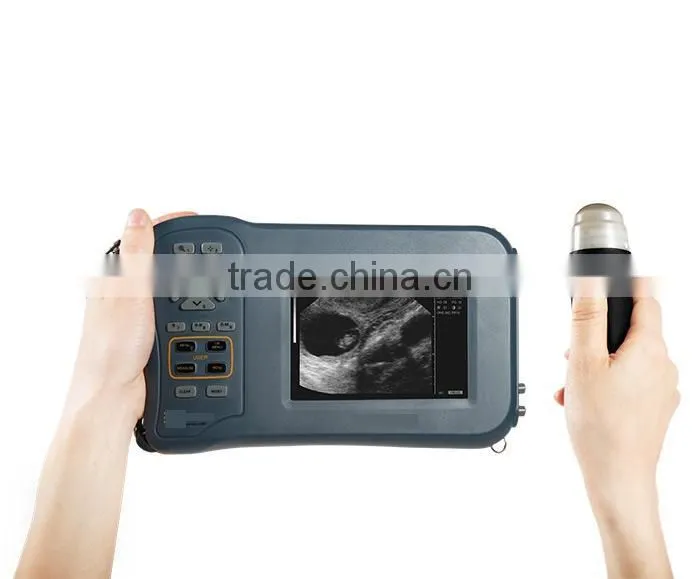

Vet Ultrasound Scanner

Vet mini handheld ultrasound scanner,

Model 5

It is a light ultrasound scanner, compact, user friendly, especially designed for small and large farm of sows, Ewes, goats, bovine dairy and bovine beef scanning. Excellent imaging quality and ergonomic design make it fast and reliable detection of pregnancy from 19th day in sows , 28th day on cows, 25th in sheep and goats pregnancy diagnosis, and have exported in many countries all over the world and cooperates with larger farms many countries.

Features:

• Ultra-compact size – weight and size – as well as a special, four-point harness system for easy work with animals in harsh conditions. Owing to a special explorer case transport of the device is very easy
• Only weight 0.48 kg;
• Excellent imaging quality and ergonomic design for fast and reliable detection
• 5.8 inch WVGA LCD monitor, wide viewing angle, LCD monitor can turn off when use I-Scan® Video Goggle
• Support USB 2.0 for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop and 150 images insider
• 5.5~6.5 hours Li-ion battery for operating
• Support leather sheath, designed to be resistant to extremely harsh farm conditions
• Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate
• Portability by a shoulder belt giving you total freedom of movements
• Support leather sheath(easy-clean by running water), designed to be resistant to extremely harsh farm conditions
• I-Scan® video glasses eases your job and gets you focused (optional)
• Easy to use, learn, and teach
• Precision aiming ability via ergonomically designed console and probe
• Video output, support I-Scan® video glasses eases your job and gets you focused (optional)
• Easy-to-use, handheld probe
• Color LCD screen for easy reading
• Brightness controls
• Portable, Reliable and durable design
• Two batteries provided for continuous use
• Two-year warranty

Components:

1*FarmScan® M50 machine

1* mechanical sector Probe   (Ewes, goats, sows)

1* Li-ion high-power-capacity battery (5.5 hours/battery )

1*Battery charger (AC110V~250V,50/60Hz)

1*Neck strap ,hand strap

1*Aluminum alloy carry case

1*User guide

24 months warranty for machine and 14 months warranty for probes


Specification

CE Certified
