Home > Products > Poultry Slauhterhouse Equiment > Precooler/Pre-Cooling Slaughter Line / Chicken Slaughtering Machine
Precooler/Pre-Cooling Slaughter Line / Chicken Slaughtering Machine
- 200 Set / Sets per Month
- qingdao
- Cattle Slaughter Line Hooves Sliding Chute For Cow Slaughtering Equipment
- Specially Customized Bull Butcher Machine Blood Trough For Cow Slaughter House
- Suitable For Muslim Slaughter Ritual Rotary Slaughtering Box With Cattle Abattoir Equipment
- Factory Manufacturer Goat Slaughter Machine Restraint Conveyor For Sheep Slaughterhouse
- Easy Install Sheep Slaughter House Hydraulic Skinning Machine For Goat Slaughtering
- Religious Methods Cow Cattle Slaughterhouse Price Of Cow Halal Muslim Slaughter Box For Beef Plant Killing Machine
Product Details
Condition: | New | Application: | Poultry | Brand Name: | mingshun |
Model Number: | ms-yl-20-09 | Voltage: | 380V/220V | Power(W): | 8-14kw |
Dimension(L*W*H): | L*2200*2000mm | Weight: | depends on the size of machine | Certification: | CE ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

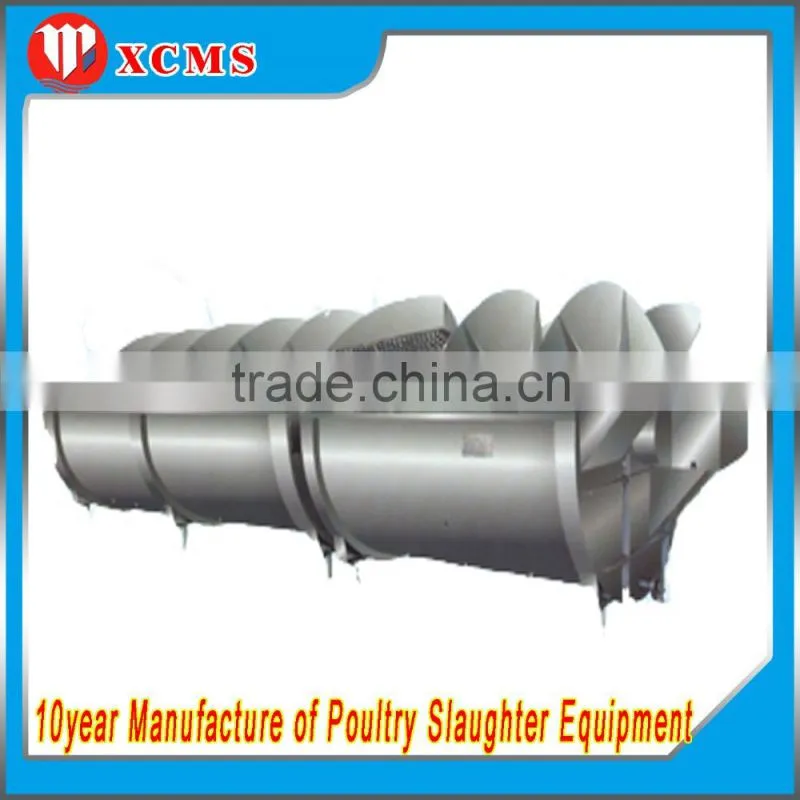

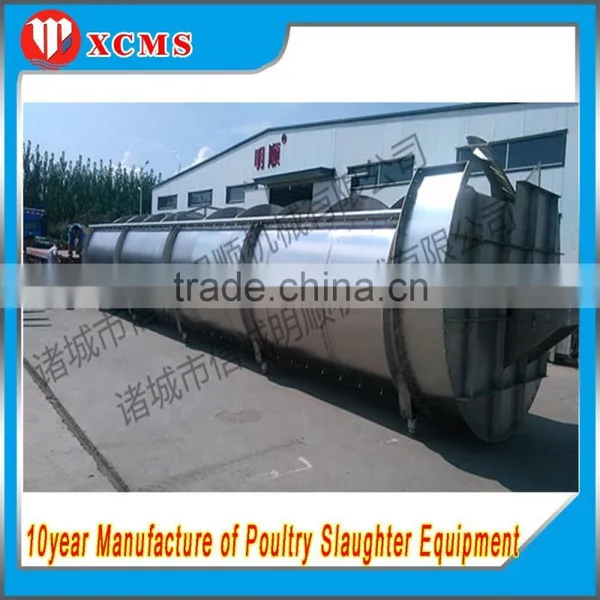

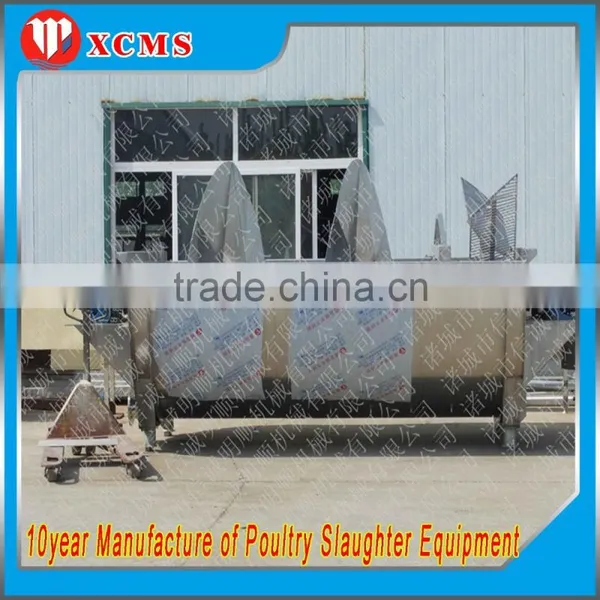

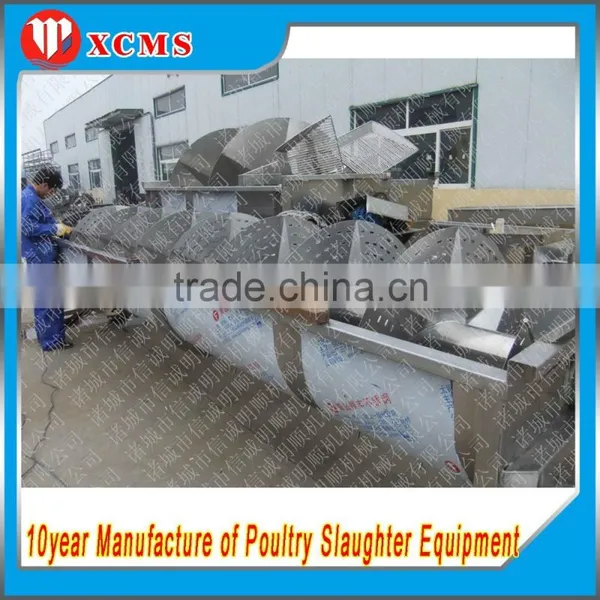

Precooler/Pre-Cooling Slaughter Line / Chicken Slaughtering Machine pictures
Structure Features
used for cooling work of chicken and duck body before segmentation ,in order to achieve the purpose of removing acid ,detoxification ,spiral propulsion system and blast system to make the cooling of roiler carcass more uniform ,thoroughly ,pre -cooling time can be designed according to customer 's requirements
1 | Killing conveyor line | Chicken will be processed on this rail, it is main part for the main slaughter plant Production line. The distance of hangers is 8inch. Stainless steel chain, guide rails, stainless steel hooks, nylon hanger |
2 | Electric tunning machine | fiberglass reinforced plastic reliable and stable electrical devices L=1.5METERS |
3 | Scalding machine | This machine is used to scald the carcass of the chicken to remove the feather easily; Size:4000mm×950mm×2400mm. Thickness of Board: 2mm,Upper Cover Thickness :1.2mm,Supporting Leg Thickness:2mm. Temperature between 58C°-61C° of the water use blower system and impact pressure system make to produce highly scalder results. Power:6KW |
4 | A Frame Primary Plucker | This plucker is dedicated device for chickens ,there are 4 main parts: Depilation, regulation section, guide part, spray part. Principal part is stainless steel Shape Size:3350*2350*2350 De-feather Machine consists of four boxes .Each line has 12 plates .Total 6 lines with 72plates. Power :3KW *6=18kw/set |
5 | Automatic cut head machine | this equipment use to auto cut the head on production line Principal part is stainless steel |
6 | Automatic cut claw machine | this equipment use to auto cut the feet on production line Principal part is stainless steel this equipment use dedicated accurate chuck location had high quality feet |
7 | Unloading claws device | this equipment will be auto take off the feet from production line All body is stainless steel |
8 | Drivng device | This machine is to run the whole hang rail including: motor , reducer , brackets and other drive components Power:2.2KW By inverter power, run more smoothly. |
9 | Frequency converter |
Frequency Controlling Box.
Stainless steel Box
3.7kw
|
10 | Tension device | To control the convey rail length and tight Stainless steel structure |

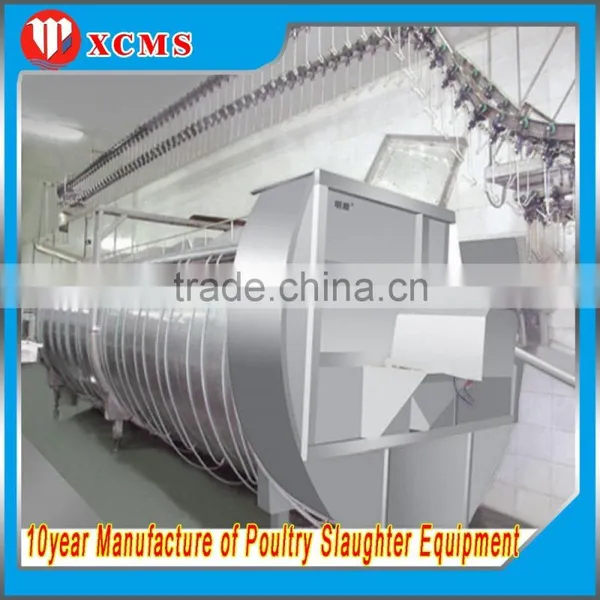

11 | Spiral precooling machine |
This device can replace the precooling line to precooling the chicken carcass
This machine used to low down the temperature of carcass to keep the carcass good-looking and keep fresh in the forward process.
The Thickness of the tank made of 3 stainless steel
Spiral Pushing Device is melted by 2mm thick stainless steel.
Power 5.2kw/set
ONE sets of Fan to make bubbles in the water in the tank efficiently so that improve cooling result and clean the carcass too
Shape Size:L=5000*2160*H Buyer Also Need To Prepare cold Water Or A Piece Of Ice MachineBuyer prepare workspace |
There are something i need to conform with you ,if you are interested in our slaugther machine line ,then we will send you a quotation
1. Have you built the slaughtering line now? Please e-mail the drawing if you have.
We can make the plan based on the space of your workshop.
2. How many square meters of your production room ?
3. Do you need to cut the heads & feet of chickens ?
4. The chickens heads & feet to eat or make the animal feed ?
5. what is the final products do you need ? whole chicken,portion parts/split or others' products ?
6. Voltage/frequency also need to be considered. Please reconfirm your power supply should be 380V/50HZ/3P
7. The biggest slaughter capacity every day?
8. About the weight of chickens slaughter ?
9. Do you need our engineers to supply the professional instruction on site for the equipments installation.
Machine Components
Packaging :wrapped in wrapping film before packing which is to avoid moisture on the sea ,this machine is put in wooden/iron crate based on good protection purpose and export standard .
Delivery Detail:15-30 working days
Phone:0086-18853670493
WhatsApp:+861885367093
Wechat:cindy0406311
Skype:cindy.xie78
QQ:1186386102
We will try our best to satisfy you !
