Specifications
Horizontal Lime Rotary Kiln :1.Easy installation,Easy operation
2.supply the design plan
3. Long use life
4.ISO9001-2008.CE
2013 Low Cost Horizontal Lime Rotary Kiln For Latin America Markets!
Process flow introduction: Qualified limestone is deposited in the storage bin, hoisted by the elevator and transported into the top bin of preheater. The top storage bin of the pre-heater is consisted of top and bottom level gages controlling the feeding. And then through the feed tube the limestone is distributed uniformly to all the inside chambers of the pre-heater.
The limestone in preheater is heated to about 900°C by 1150°C kiln gas, about 30% decomposition, pushed into rotary kiln by the hydraulic push rod, and sintered and decomposed into CaO and CO2 in the roatary kiln. After decomposition, the produced limestone goes into the cooler, cooled down to 100°C by the entered cold air and discharged out. The 600 ° C hot air after heat exchange goes into the kiln and combusts with gas. The Exhaust gas goes into the bag filler through draught fan when added into the cold air, and enter the chimney through the exhaust fan.
The limestone in the pre-heater is heated to around 900 ° C by the kiln flue gas of 1150 ° C. At this time, about 30% of the limestone has been decomposition. Then the limestone is put into the rotary kiln by the hydraulic stem. In the rotary kiln the limestone sinters and decomposes into CaO and CO2. Then the decomposed limestone goes into the cooler and is cooled to about 100 ° C by the cold air and then is discharged. The 600 ° C hot air after heat exchange goes into the kiln and combusts with gas. The Exhaust gas blended with the cold wind go to the bag filter through the suction fan and then through the exhaust fan into the chimney.
The lime out of the cooler is transported into lime storehouse by vibration feeding machine, chain conveyor, bucket elevator, belt conveyor according to the customer’s request for whether making the screening other procedures.
Main Technical Parameters for the Horizontal Lime Rotary Kiln :
| Design Capacity(t/d) | 150 | 300 | 600 | |
| Product | Active Lime | Active Lime | Active Lime | |
| preheater | Vertical Pre-heater | Vertical Pre-heater | Vertical Pre-heater | |
| rotary kiln | size(m) | Φ2.5×40 | Φ3.3×50 | Φ4×60 |
| Effective Volume (m3) | 142 | 292 | 575 | |
| Burning temperature | ≤1250 | ≤1250 | ≤1250 | |
| cooler | Grate Cooler | Grate Cooler | Grate Cooler | |
| fuel | Gas Coal Dust |
gas Coal Dust |
gas Coal Dust |
|
| Heat Consumption(kJ/kg Cao) | 5000-5300 | 5000-5300 | 5100 | |
Parameter of Horizontal Lime Rotary Kiln:
| size(m) | Φ2.5×40 | φ2.8x42 | Φ3x46 | Φ3.2x50 | φ3.2x54 | φ3.6x56 | φ3.8x58 | Φ4x60 | Φ4.3x58 | Φ4.3x64 | Φ4.8x68 |
| Effective Volume (m3) | 142 | 190 | 235 | 292 | 390 | 430 | 505 | 575 | 670 | 738 | 1005 |
| Burning temperature 0C | 1350/1250 | 1350/1250 | 1350/1250 | 1350/1250 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| capacity(t/d) | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 800 | 1000 |

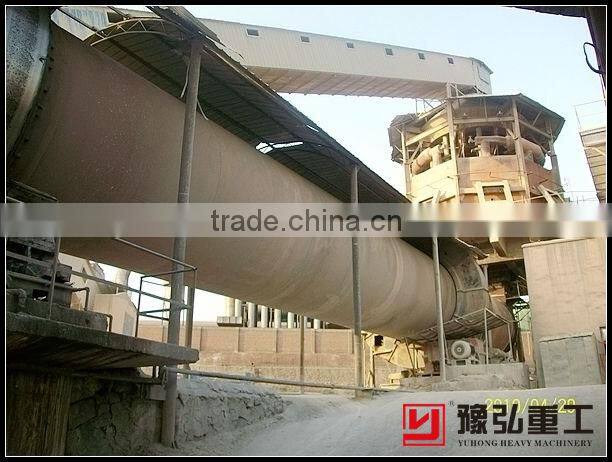

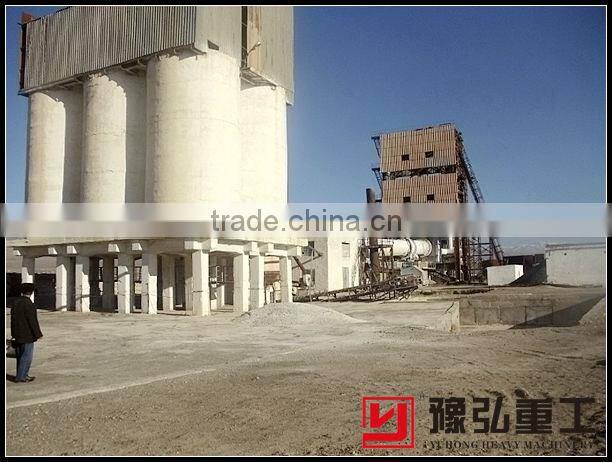

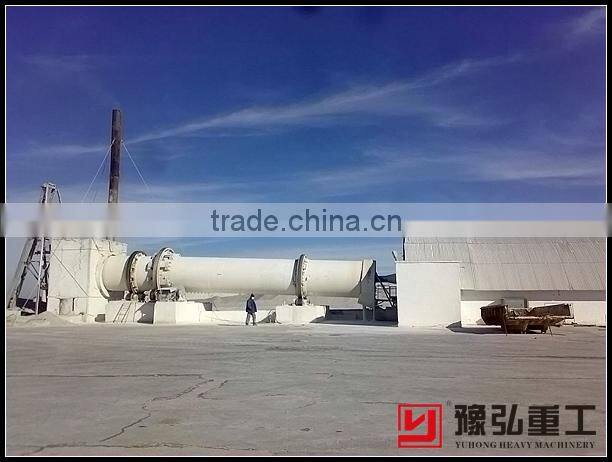

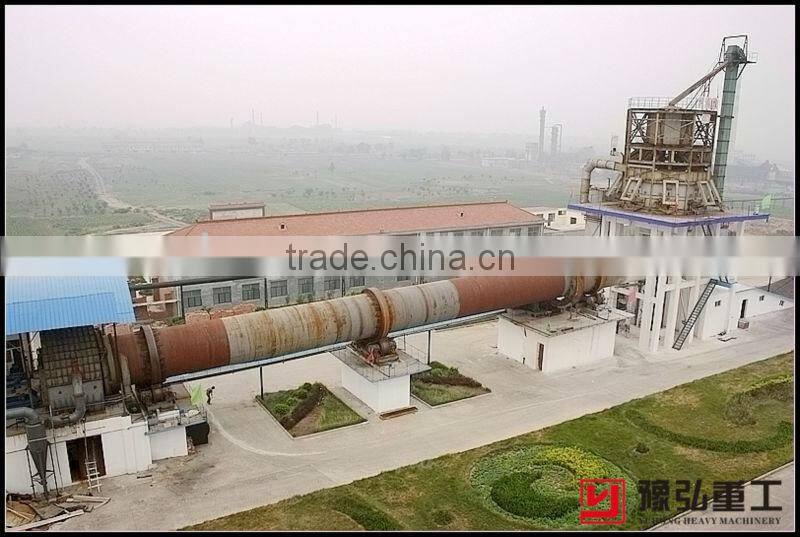

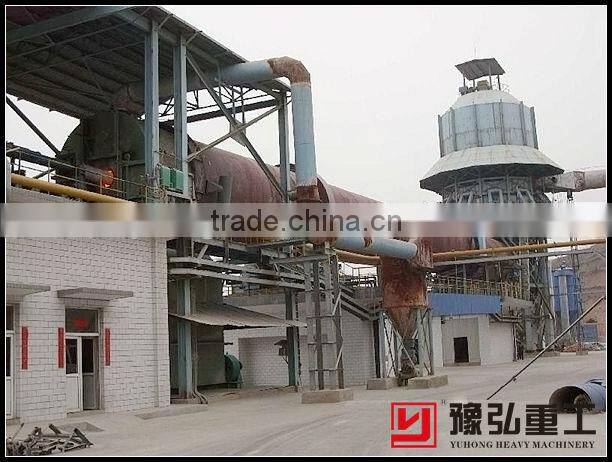

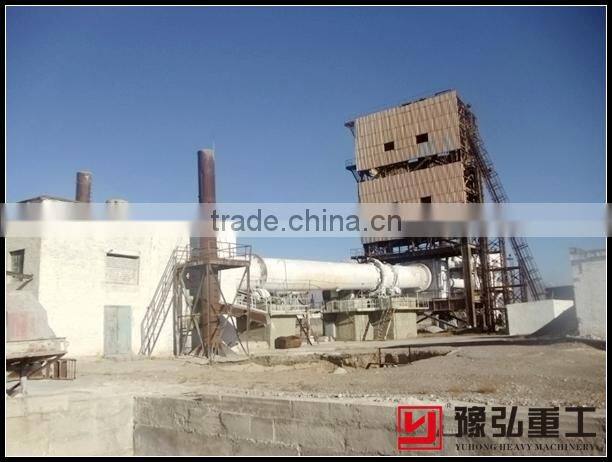

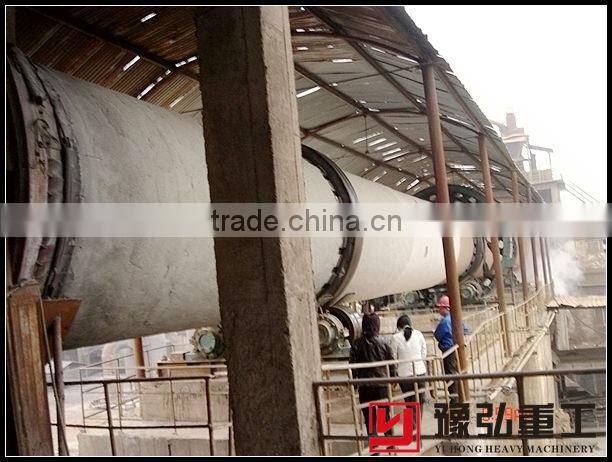

Photos for the Horizontal Lime Rotary Kiln :

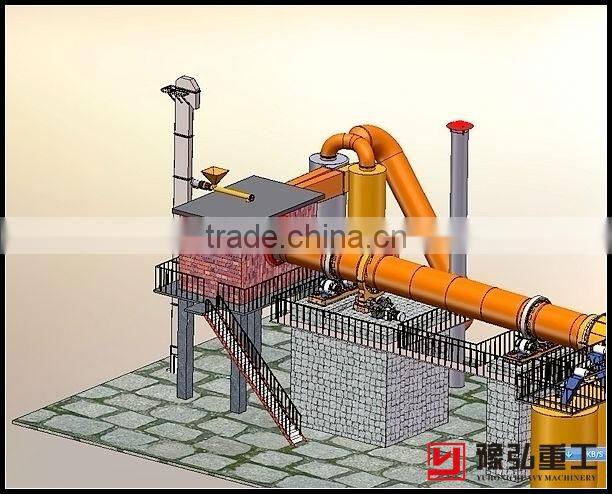

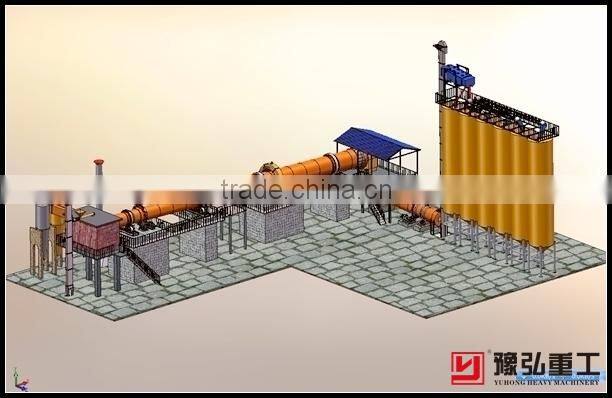

the Active Lime Production Line are including in the vertical preheater ,lime kiln ,verilcal cooler (or rotary cooler), the feeding system ,discharging system ,burner system.dusct catcher ,and so on.YUHONG Brand rotary kiln are sell well all over the world .
Welcome old and new clients come to patronize.

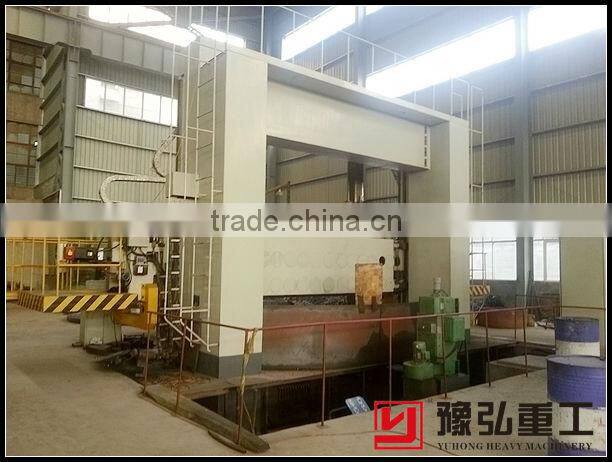

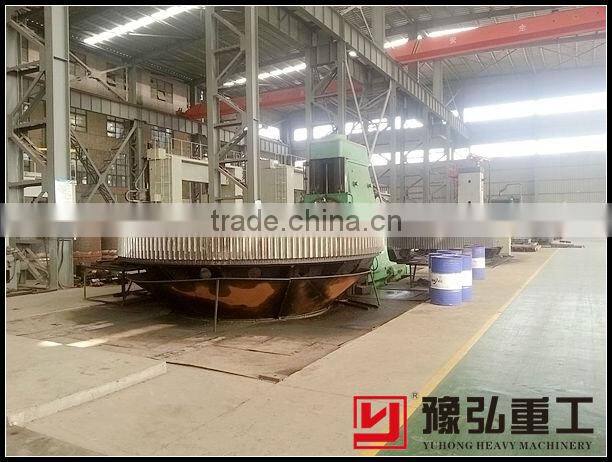

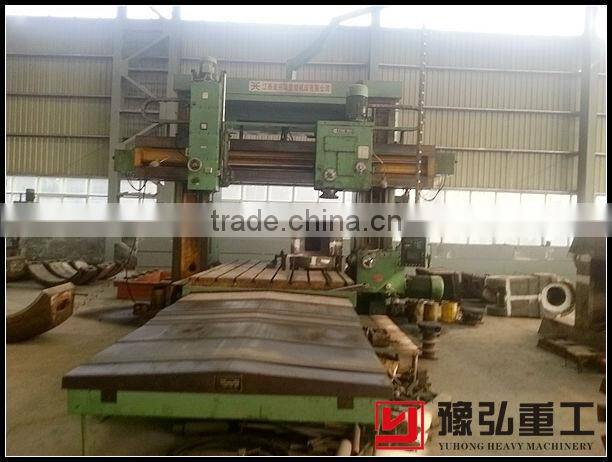

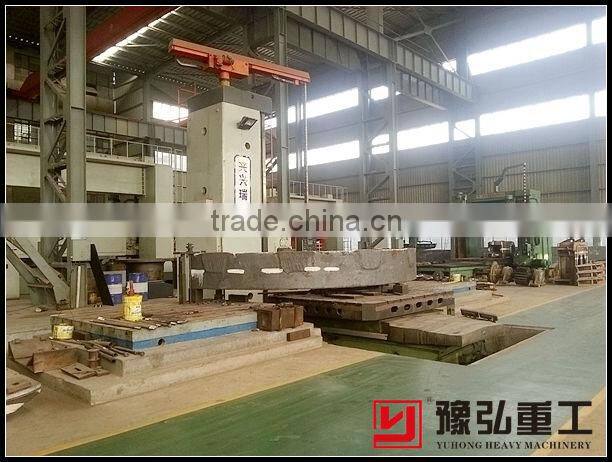

Machining equipment of Horizontal Lime Rotary Kiln :
