YUHONG Cement Mill Manufacturers Wet Grinding Ball Mill With Excellent Cement Ball Mill Design Best Selling Home and Aboad

YUHONG Cement Mill Manufacturers Producing Cement Grinding Ball Mill Best Selling Home and Aboad

YUHONG Cement Ball Mill/ Cement Grinding Mill is major equipment of cement plant and used for drying and grinding coal. The cement ball mill machine is mainly consisted of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is feeded into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in the YUHONG Cement Ball Mill/ Cement Grinding Mill. The coal is crushed and grinded in the YUHONG Cement Ball Mill/ Cement Grinding Mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through the YUHONG Cement Ball Mill/ Cement Grinding Mill.

1. YUHONG Cement Ball Mill/ Cement Grinding Mill Structure

 YUHONG Cement Ball Mill/ Cement Grinding Mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

2. YUHONG Cement Ball Mill/ Cement Grinding Mill Sorts & Features

A. YUHONG Cement Ball Mill/ Cement Grinding Mill is mainly used in cycle grinding system, with features of high grinding efficiency, high production, low power consumption. Especially, when grinding slag cement, its performance is more outstanding. Generally speaking, production could be 10-20% higher, and power consumption 10% lower. Besides, product temperature could reduce 20-40 and product fineness is easy to adjust.

B. High Fineness & Production YUHONG Cement Ball Mill/ Cement Grinding Mill is mainly used in open flow grinding system, with features of simple equipment system & process flow, saving investment, less building area. Regarding structure, it has advanced & special material separating diaphragm device inside, adds activation device to fine grinding chamber, and has discharging grate plate at mill outlet, thus to reduce the size of grinding media at the most and promote the grinding efficiency highly, realize the purpose of high production & low power consumption.

3. YUHONG Cement Ball Mill/ Cement Grinding Mill Technical Parameter

4. YUHONG Cement Ball Mill/ Cement Grinding Mill Application & Usage

Cement Ball mill/ Cement Grinding Mill is the key equipment for grinding cement clinker after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Cement Mill/ Cement Grinding Mill is mainly used for grinding various cement clinker or other materials in building material, metallurgical, electric and chemical industries.

5. Working Environment of YUHONG Cement Ball Mill/ Cement Grinding Mill

Cement Ball mill/ Cement Grinding Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

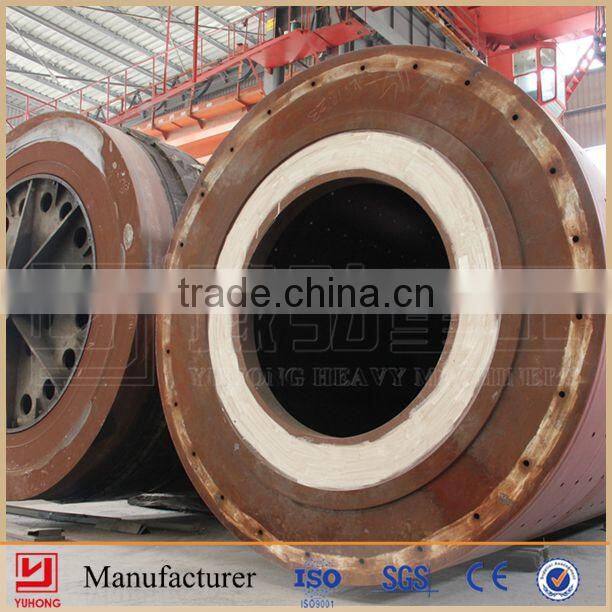

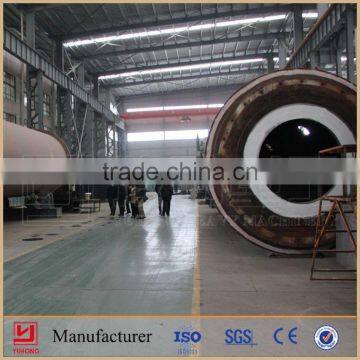

6. Pictures of YUHONG Cement Ball Mill/ Cement Grinding Mill
