China 2014 YUHONG ISO9001 Ball Mill Machine for Grinding Concrete, Calcium Carbonate Powder Mill Grinding Machine

Specifications

2014 YUHONG ISO9001 Iron Raw Material Ball Mill, Milling Machine For Sale in Asia, Brazil, Iran, etc.

YUHONG Ball Mill is major equipment of cement plant and used for drying and grinding coal. The cement ball mill machine is mainly consisted of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is feeded into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in Ball Mill. The coal is crushed and grinded in Ball Mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through Ball Mill.

1. YUHONG Over Flow Ball Mill, Grinding Ball Mill Structure

 YUHONG Over Flow Ball Mill, Grinding Mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

2.YUHONG Over Flow Ball Mill, Grinding Ball Mill Operation

Ball mills operate either in open or closed circuit. Open circuit operation is best utilized when:

1.Another stage of grinding follows the mill; 2.Reduction ratio is small;3.Feed material is already fine and one pass through the mill produces the desired results;

4.Product size control is not critical and oversize material can be tolerated in the product.

Where size control of the final product is important, closed circuit grinding is the most efficient method of operation. The production of a higher quality product at a lower cost justifies the additional capital investment.

3. YUHONG Over Flow Ball Mill, Grinding Ball Mill Technical Parameter

4. YUHONG Over Flow Ball Mill, Grinding Ball Mill Application

Over flow Grinding Ball Mill is the key equipment for grinding ore materials after the crush process, and it is widely used in the manufacture industries, it also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.  Ball mill grind ores and other materials to a typical product size of 35 mesh or finer.

5. YUHONG Over Flow Ball Mill, Grinding Ball Mill Working Environment

Over Flow Ball mill/Grinding Ball Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth.Then the whole grinding process is ended.

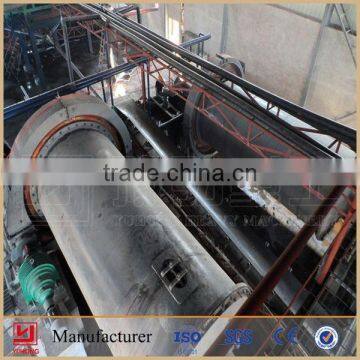

6. Pictures of YUHONG Over Flow Ball Mill, Grinding Ball Mill

Know more information about YUHONG Over Flow Ball Mill/Grinding Ball Mill, pls contact us via the following ways:

Molly

Henan Yuhong Heavy Machinery Co., Ltd

Cell: +86-15838256143
Tel: +86-371-86688306
Fax:+86-371-8668303
