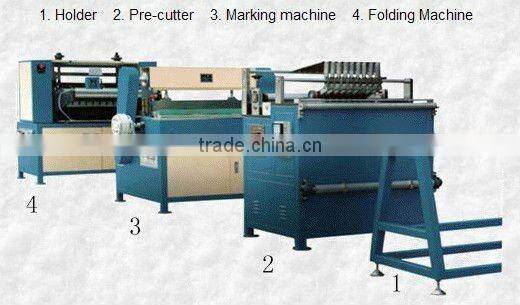

Pleating Machine
This type of machine is capable for one-layer or multi-layered filter media pleating. It is well designed for filtration media , i.e, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, various types of stainless steel wire mesh as well as combination of fabric and wire mesh duly stitched together. It can also pleat paper card board, copper, aluminium and other metallic foils as may be required.
1. Pleating height: 5 - 55mm or 15 - 120mm
2. Layers pleated: 1 - 5
3. Pleating speed: 20 - 150 pleats/min
4. Max. pleating width: 1100mm
5. Thickness of material: 0.5 - 3mm
6. Speed adjustable motor: 1.5KW
7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 160°C
8. Machine weight: 730KG
9. Machine dimension: 1430mm x 1550mm x 1400mm
10. This machine can be made as customer's requirements
Contact:Mr John
sales(at)
mobile:86-13780283262
