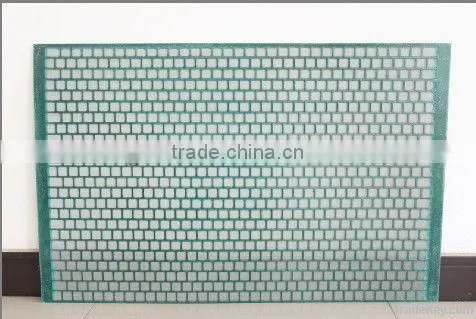

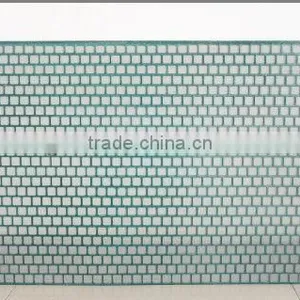

Steel Frame Screen

Specifications

Steel Frame Screen
1.Mesh:16-325
2.Width:650-1253mm
3.Length:585-913mm
4.Weight:12-17kg

Steel Frame Screen

Description of Steel Frame Screen

Steel frame screens are mostly applied to the shale shakers with wedge fastening equipment. The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction. They are sturdy and reliable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessory rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply steel frame screens with mesh sizes ranging from 20 to 250

Features of Steel Frame Screen

1.Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better.
2.High strength frame, multi-ribs and the mesh cloth with moderate tension , from one reliable combination , which can increase screen’s acceptable flow , the intensity and the lifetime
3.The wedge-shaped fastening device, can make the erection of screens more handily and quickly 4.The mesh divided into many independent small units by grids of the backing plate ,can prevent rips or tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damage. By doing so, the operator can cut down the stop time and reduce the cost.

Specification of Steel Frame Screen





Screen Model	Range of Mesh	Dimension (Length x Width)	Brand & Model Of Shaker	Weight(Kg)
KSC-1	16-325	585×1165mm	SWACO MON900SE	12
KSC-2	16-325	635×1253mm	BRANDT BL-50	13.5
KSC-3	16-325	913×650mm	BRANDT VSM-300	12.5
KSC-4	16-325	720×1220mm	KEMTRON KTL48 Series	17
KSC-5	16-325	712×1181mm	SF300	17
