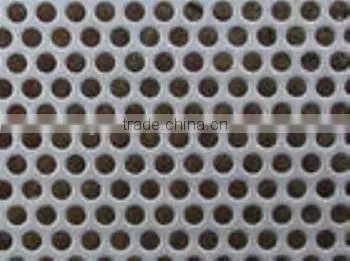

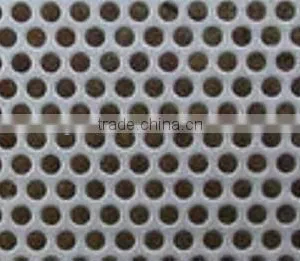

Hole punching wire mesh

Specifications

hole punching wire mesh
round hole 0.3-500mm
plate thickness 0.2-30mm
SIZE:1*2m 1.22*2.44m 3'*8' 4'*8' 6'*8'

hole punching wire mesh



Sheet can be delivered in thickness between 0.3 and 25mm

The available widths of perforated coils go from 55 mm to 1500 mm, with a maximum weight of approx. 8000kilos. Thickness range from 0.3-3.0mm


The most common width and length are as following
1000MM X 2000MM 1220MM X 2440MM 1250MM X 2500MM
1250MM X 6000MM 1500MM X 3000MM 1500MM X 6000MM





the following is the specifacations for  the round hole  staggered 60  (trangle  pitch)



Hole:0.3 0.4 0.5 0.6  0.7 0.8 0.9 1.0mm round  hole

0.3-100mm



plate thickness 0.2-30mm



Carbon steel (mild steel)

·carbon steel cold rolled. It has a quite bright surface. It is used in thickness from 0.3 to 3.0 mm

·carbon steel hot rolled pickled or black. The former has an opaque surface and the second has a quite black surface. They are usd for the thickness from 1.5mm and above.



Stainless steel

Stainless steel is a general name for different kinds of steel alloyed with nickel and chrome, combined with other elements. The three most common types are EN 1.4301(AISI 304), EN 1.4404(AISI 316L) and EN 1.4016(AISI 430)(chromatic steel). EN 1.4301(AISI 304) is resistant to corrosion from humidity, and EN 1.4404(AISI 316L) is resistant to corrosion from humidity and less aggressive acids. EN 1.4016(AISI 430) is less corrosion resistant than the other two types.



Aluminum and its alloys

This material is particularly interesting because of its weight advantages, being only one-third the weight of steel.

Titanium

Titanium is characterized by an excellent resistance to corrosion, form the most oxidant acids to saline atmospheres
