Help CenterManufactury of 1~10 Tons/hour Catfish Feed Pellet Mill Price
Related Products
-
CE Approved High Output Used Pellet Mills for SaleUS$ 5,000 - 50,000MOQ: 1 Set -
CE Approved High Output Small Automatic Feed Pellet Mill for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
CE Approved High Output Pellet Mill for Animal FeedUS$ 999 - 20,000MOQ: 1 Set
-
High Efficient 1-5ton per Hour Feed Pellet Machine PricesUS$ 1,000 - 50,000MOQ: 1 Set
-
High Efficient 1-5ton per Hour Pelletizer Machine for Animal FeedsUS$ 2,000 - 35,000MOQ: 1 Set
Specifications
catfish feed pellet mill2-8mm animal feed
1-10t/h poultry feed pellet line
suitable kinds of poultry and
We are a specialized manufacturer of feed machinery, has about 20 years experience , main product conveying equipment, storage equipment ,steel structures, feed machinery and projects of complete plants, who is engaged in independent research and development, production and sales.
No matter where you are, home or overseas, we will meet your demand with the best quality and warm-heart service upon request.
welcome to visit our factory!

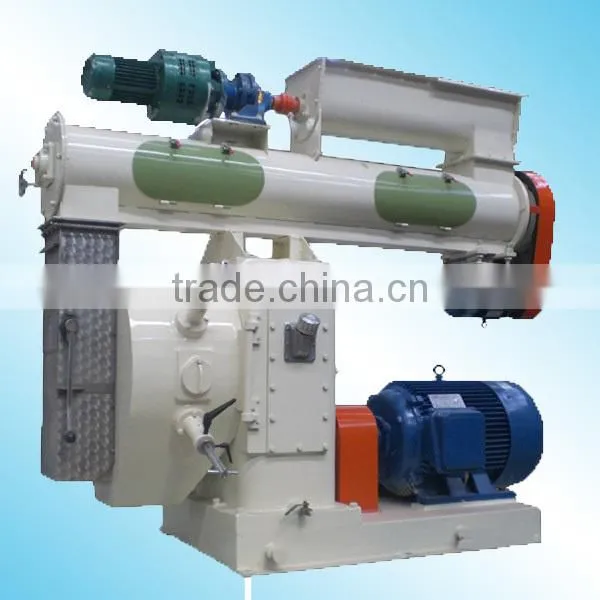

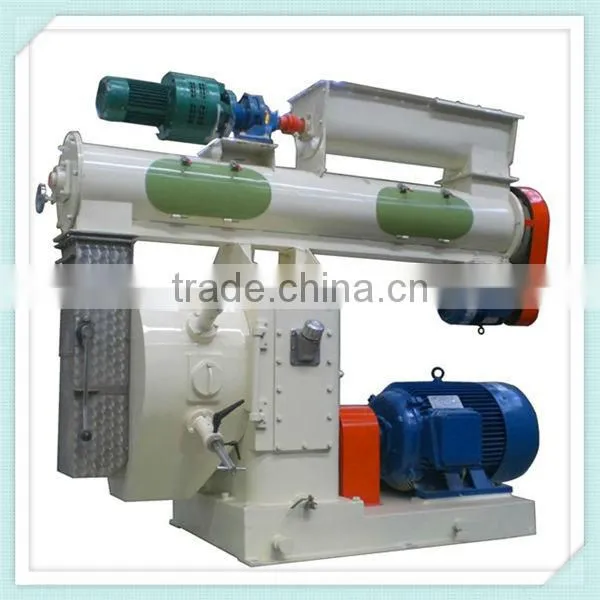

♣ Performance feature of catfish feed pellet mill :
Feeder, conditioner, the feeding chute all adopt stainless steel material, durable service.
Feeding system adopts electromagnetic speed control, convenient to adjust, fully adapt to the different material capacity requirements.
Main transmission adopts gear drive with high precision,Ring die adopt the quick-release hoop type,convenient to remove.
Machine with safety equipment,such as security magnets with strong magnetic, Overload protection and so on,secure and reliable.
Compact structure, beautiful appearance, high yield, less consumption, easy to use,quick to maintenance.
♣ Technical parameters of catfish feed pellet mill :
|
Type |
Main engine power (kw)
|
Productivity(t/h) |
Feeder power (kw) |
Ring die diameter (kw) |
Granule size(mm) |
SZLH35 |
55 |
2-5 |
1.5 |
¢350 |
¢1.0-¢12 |
SZLH40 |
75/90 |
2-10 |
1.5 |
¢400 |
¢1.0-¢12 |
SZLH42 |
110 |
3-12 |
1.5 |
¢420 |
¢1.0-¢12 |
SZLH508 |
132/160 |
5-20 |
1.5 |
¢508 |
¢1.0-¢12 |
♥ production line Contains machine of catfish feed pellet mill :
mill, mixer, pellet machine, cooler, screener and packing machine, etc.
♥ Raw materials system of catfish feed pellet mill :
The poultry and livestock feed produce line is widely used to process feed with different materials such as corn, maize, grass, grains, molasses, and some other raw materials, is suitable for all kinds of the feed factories.

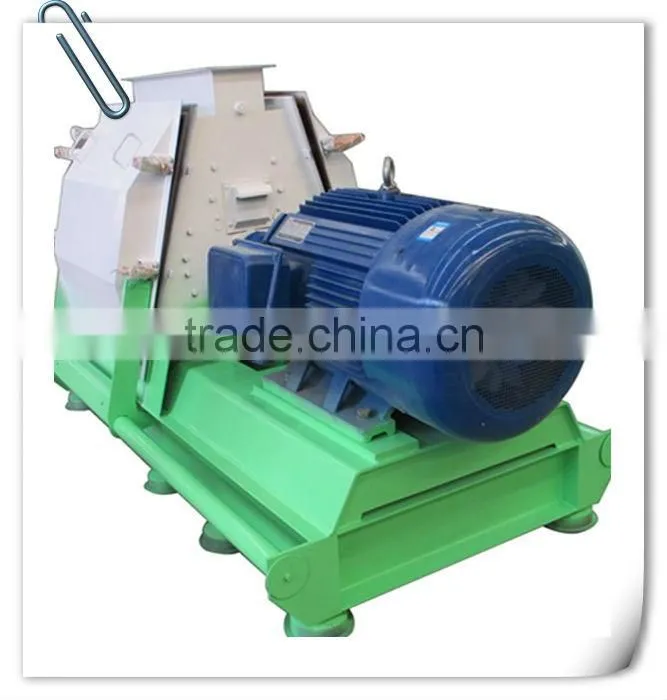

1.The crushing process:
Raw materials into the shredder is broken into customer requirements of size granular, crushed particles passing through the mesh into the crushing chamber and then is discharged from the discharge port. The user can accord to the needs of the particle size selection screen

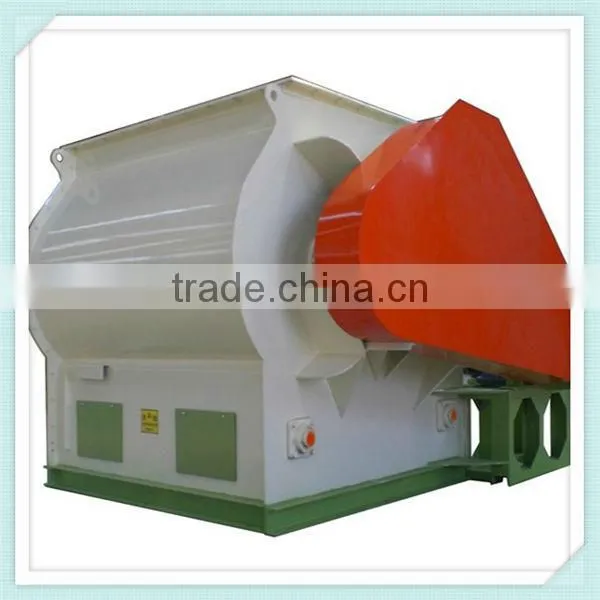

2. Mixing, pellet process:
The crushed particles in the mixer is fully stirred and uniformly mixed, enter into the ring die pellet machine to make them pellet

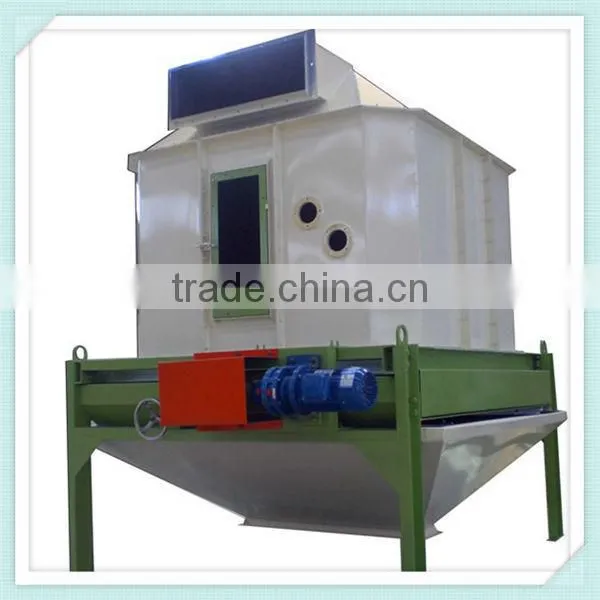

3. Cooling,crumbler , sieving process:

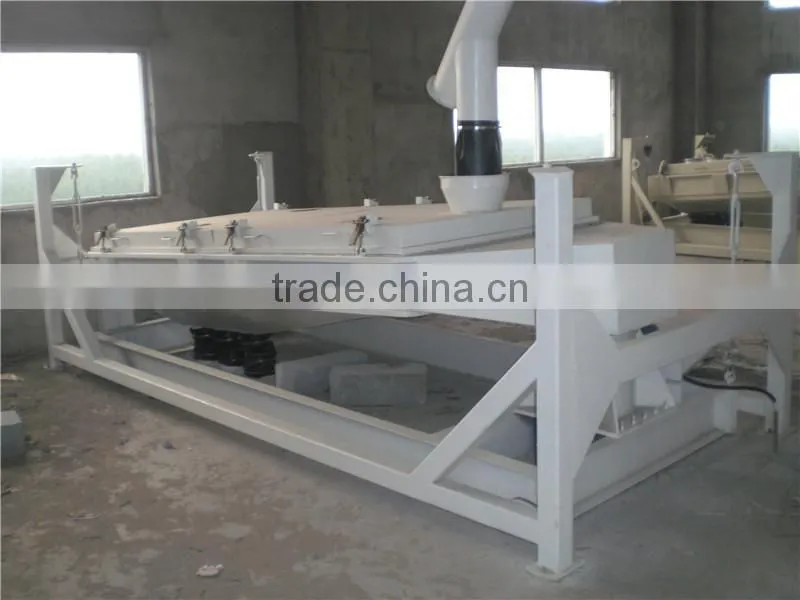

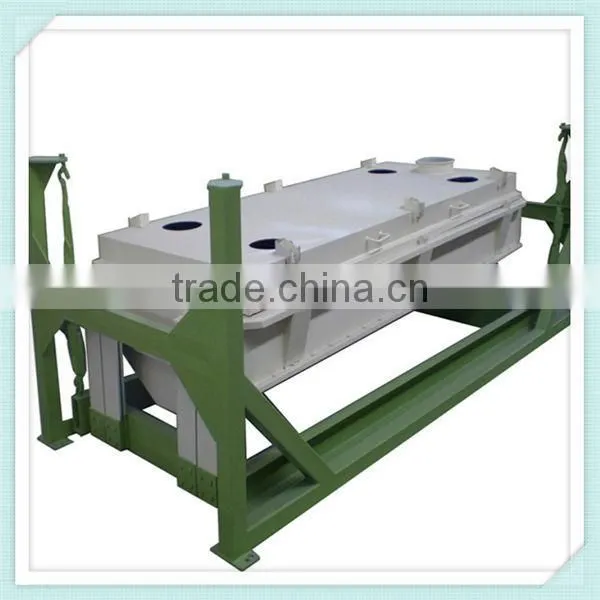

Granular semi-finished products in the SH series plane revolving grading sieve for grading and two circular grinding process and the number of particles, powder for cleaning and grading. Discharging port is the streamline shape design, not the material deposition, to avoid cross contamination.

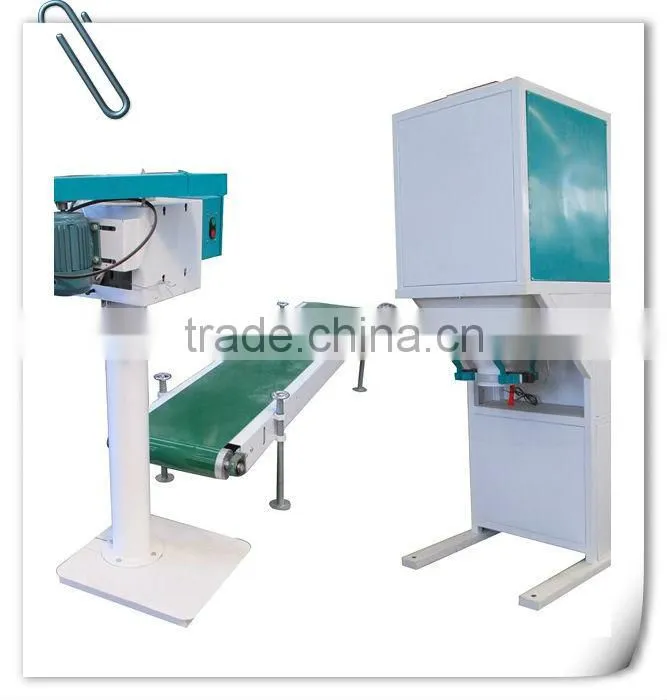

4. Packaging process:
The packing process includes two parts: one is hosting part, the other one is packing part. The hosting machine will promote pellets from low to the top with its little hoppers, then drop the pellets into Packing Machine, with the automatic sealing system, the pellets can be packed into bags.
♣The flow diagram of production line:

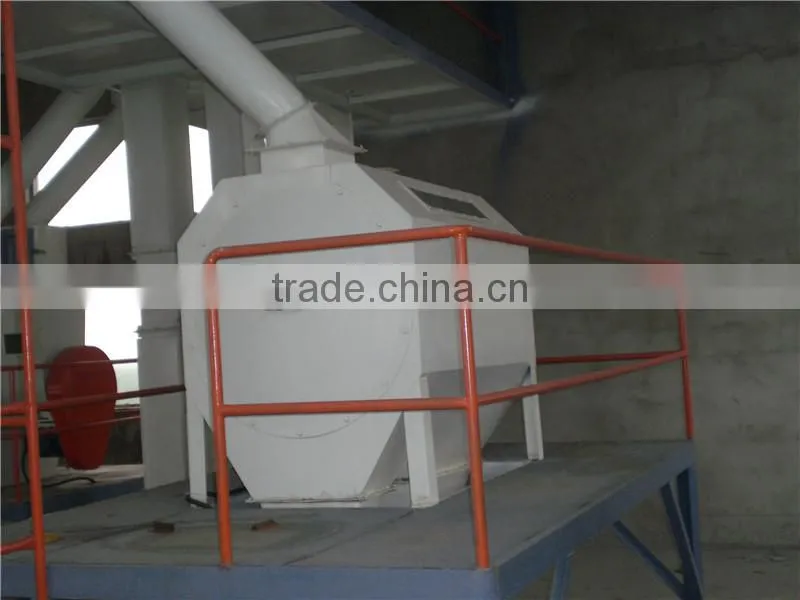

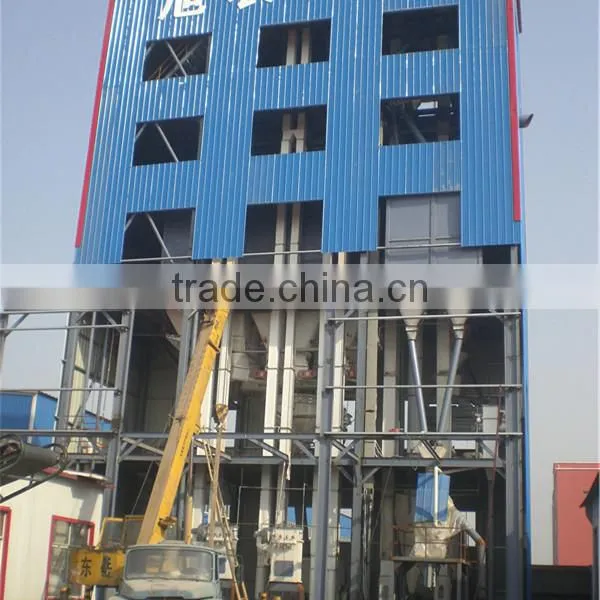

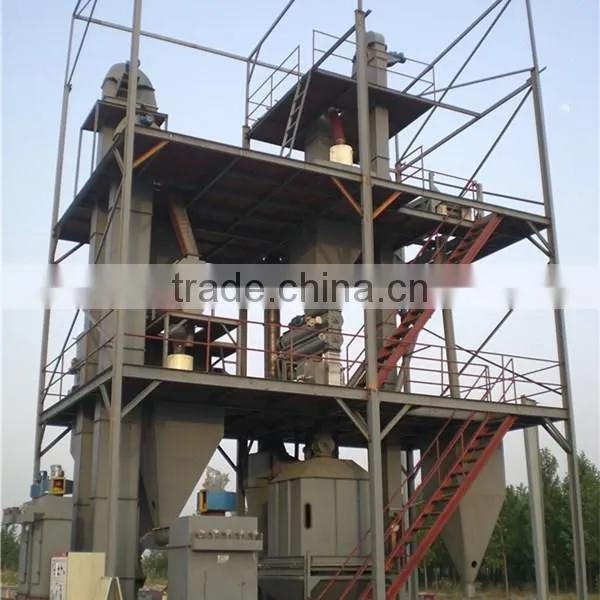

♣The production line we bulid:
