Specifications
animal food mixer97.7% mixing uniformity
45-60sec. mixing time
Less than 0.1% residual rate
No lea
We are a specialized manufacturer of feed machinery, has about 20 years experience , main product conveying equipment, storage equipment ,steel structures, feed machinery and projects of complete plants, who is engaged in independent research and development, production and sales.
No matter where you are, home or overseas, we will meet your demand with the best quality and warm-heart service upon request.
welcome to visit our factory!

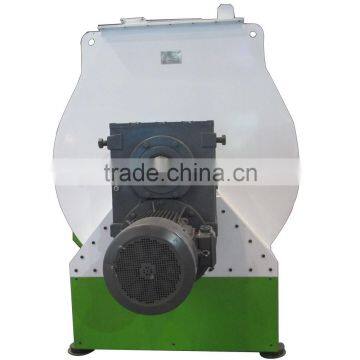

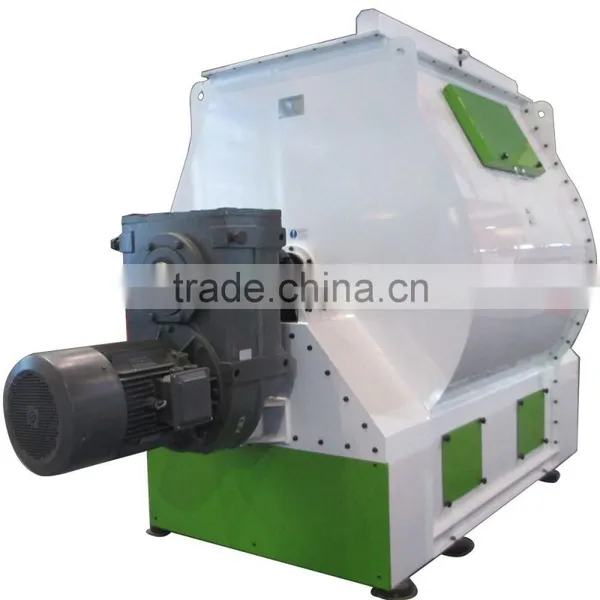

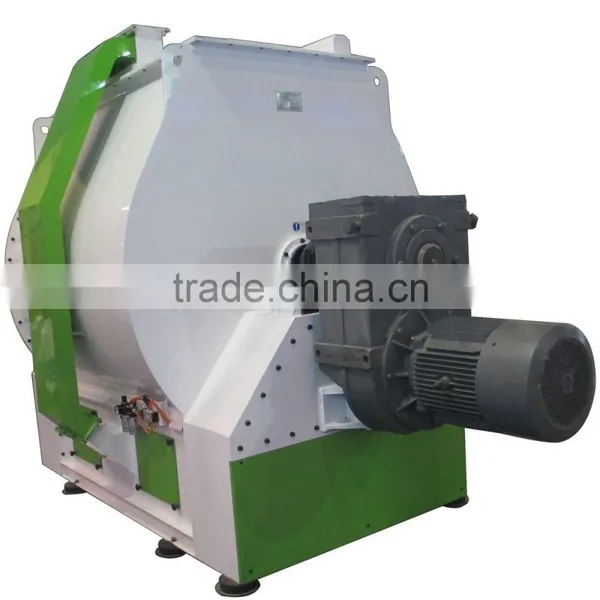

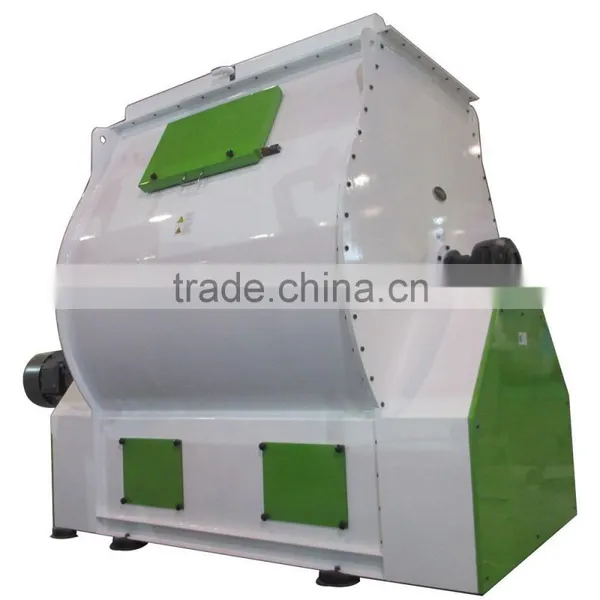

Product feature of animal food mixer :
Double rotor design, strengthen material's convection, shear, mixing, mixing uniformity can reach 97.7%.
Adjusting the blade and casing to the best clearance, to ensure lower retention rate, avoid materials cross contamination.
Full open discharge gate, material emptying moment, no residue.
Sealed rubber gas bag, ensure no leaks.
Shaft end is used of special design of the packing seal to ensure no leakage.
Large access door, reasonable design, convenient to clean and maintenance, saving time.
Technical parameters of animal food mixer :
Type |
Capacity(m³) |
Mix capacity per lot(kg/bat)
|
Power(KW) |
SJHS1A |
1 |
500 |
11/15 |
SJHS2A |
2 |
1000 |
18.5/22 |
SJHS4A |
4 |
2000 |
37/45 |
SJHS6A |
6 |
3000 |
55 |
♥ production line Contains machine of animal food mixer :
mill, mixer, pellet machine, cooler, screener and packing machine, etc.
♥ Raw materials system of animal food mixer :
The poultry and livestock feed produce line is widely used to process feed with different materials such as corn, maize, grass, grains, molasses, and some other raw materials, is suitable for all kinds of the feed factories.
1.The crushing process:
Raw materials into the shredder is broken into customer requirements of size granular, crushed particles passing through the mesh into the crushing chamber and then is discharged from the discharge port. The user can accord to the needs of the particle size selection screen
2. Mixing, pellet process:
The crushed particles in the mixer is fully stirred and uniformly mixed, enter into the ring die pellet machine to make them pellet
3. Cooling,crumbler , sieving process:
Granular semi-finished products in the SH series plane revolving grading sieve for grading and two circular grinding process and the number of particles, powder for cleaning and grading. Discharging port is the streamline shape design, not the material deposition, to avoid cross contamination.
4. Packaging process:
The packing process includes two parts: one is hosting part, the other one is packing part. The hosting machine will promote pellets from low to the top with its little hoppers, then drop the pellets into Packing Machine, with the automatic sealing system, the pellets can be packed into bags.

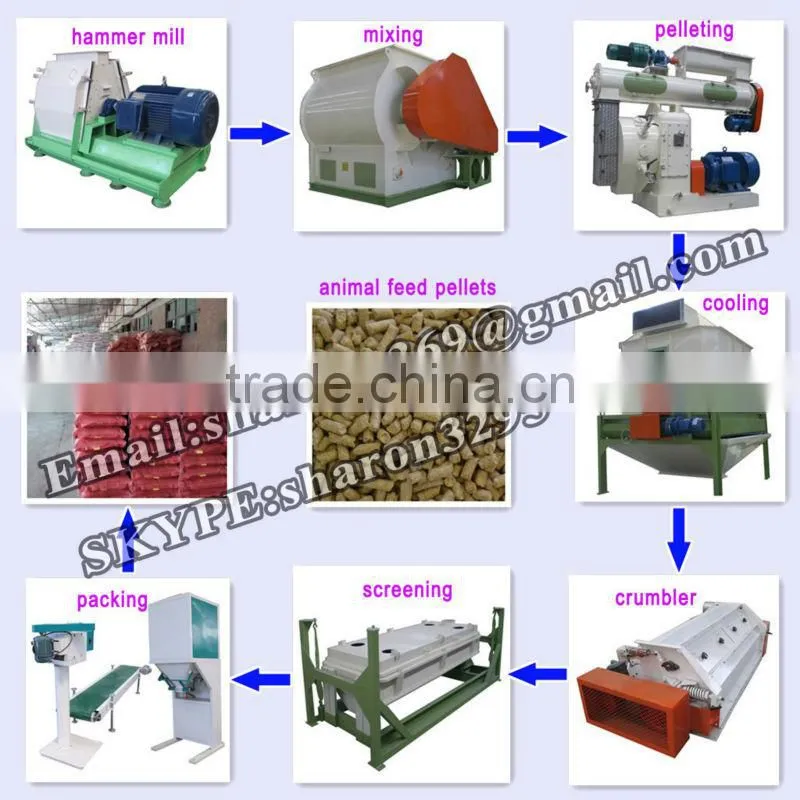

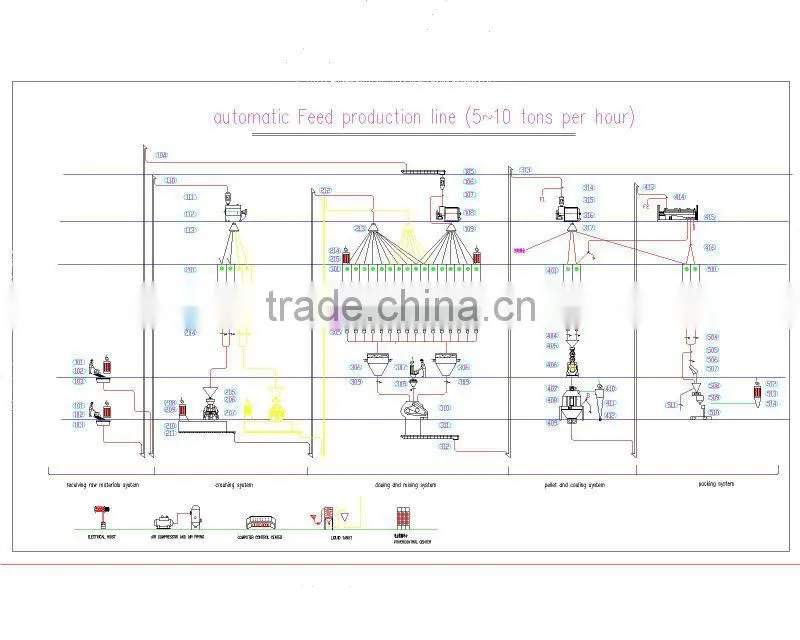

♣The flow diagram of production line of animal food mixer :

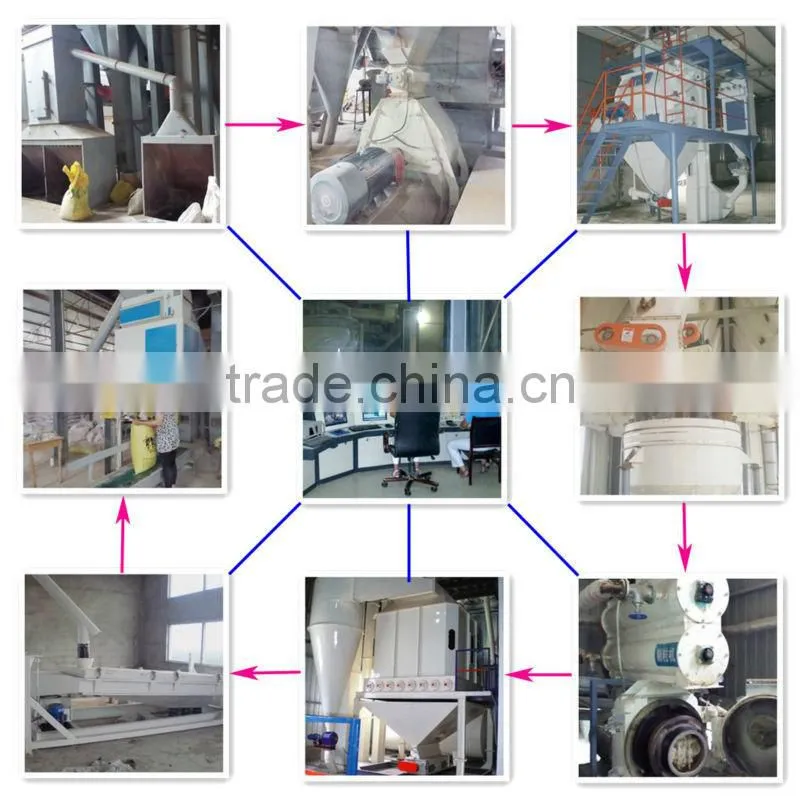

♣The production line of animal food mixer :
Q: why choose us?
A:we are the manufacturer , which has about 20 years experience, has own research and development team.
Q:i know little for feed machine and production line , what should i do ?
A:please tell us your requirement, such as what kind of feed you want produce, the output you want per hour, how many raw materials you use and so on, we will design the flow diagram for you, and further our engineer will designer the whole feed factory for you depend on your site.
Q:our worker can not know how to operation the production line, what shoud i do?
A:we has installation and after-sale service team, our engineer can go to give customer installation guide.if customer need, our whole engineer team also go to customer's country.
Q:if the machine has a little mistake when produce and can not solve, what should i do?
A: please contach us immediately, by email, SKYPE, or telphone.our worker will give you the solution.
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 20 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
About the packing: the single machine, usually we use wooden cases or steel cases, if customer transport by whole container, it no need packaging.
we are the manufacturer of the machine,usually we send customer the EXW price or FOB priceif you need the CIF or other price , please tell us your country and port, we will count the price for you.
No matter you have any question, please feel free and contact me.
