Home > Products > feed pellet production line > Latest Research 250 Artificial Animal Feed Pellet Mill Line/Pellet Making Machine Line
Latest Research 250 Artificial Animal Feed Pellet Mill Line/Pellet Making Machine Line
- 20 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | ZHONGDA |
Model Number: | SZLH | Type: | Feed Pellet Machine | Voltage: | 380V |
Power(W): | 22KW | Dimension(L*W*H): | 2302*1035*2015mm | Weight: | 3500 kg |
Certification: | ISO9001:2008 CE | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Latest Research 250 Artificial Animal Feed Pellet Mill Line/Pellet Making Machine Line
1.Product Description:
Structure of Latest Research 250 Artificial Animal Feed Pellet Mill Line/Pellet Making Machine Line:
Pellet mill is consists of three layers: the speed-adjustable feeder, the conditioner, the ring die pellet machine.
1.Feeder and conditioning device, the feeding chute adopt stainless steel material, durable;
2.Feeding system adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
3.Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
4.Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
5.Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
2. 2015 Latest Research Animal Feed Pellet Mill /Pellet Making MachineWorking principle and main features:
♣ The feeder can ensure the full load working of the pellet mill according to the control box. This design can prevent energy from wasting.
♣The conditioner is connected with the steam supply. Then the powder feeds are softened and cured for easier pelletizing.
♦The output is higher 20% than belt drive. The device can prevent steam from spraying.
♦The material of the door is stainless steel. So it can be prevented from corroding and has long useful life.
♦Adopt international advanced piping system and import pressure regulating valve.
♦Permanent magnet device with high performance.
3.Technical parameters of 2015 Latest Research Animal Feed Pellet Mill /Pellet Making Machine:
Model | Capacity | power of main motor | Power of conditioner | Feeder power | Diameter of ring die | size of final pellets |
SZLH250 | 1-2t | 22kw | 1.5kw | 0.75kw | 250mm | 1.5-12mm |
SZLH320 | 2-4t | 37kw | 2.2kw | 1.5kw | 320mm | 1.5-12mm |
SZLH350 | 2-6t | 55kw | 2.2kw | 1.5kw | 350mm | 1.5-12mm |
SZLH420 | 4-12t | 110kw | 5.5kw | 1.5kw | 420mm | 1.5-18mm |
SZLH508 | 4-18t | 160kw | 7.5kw | 2.2kw | 508mm | 2-18mm |

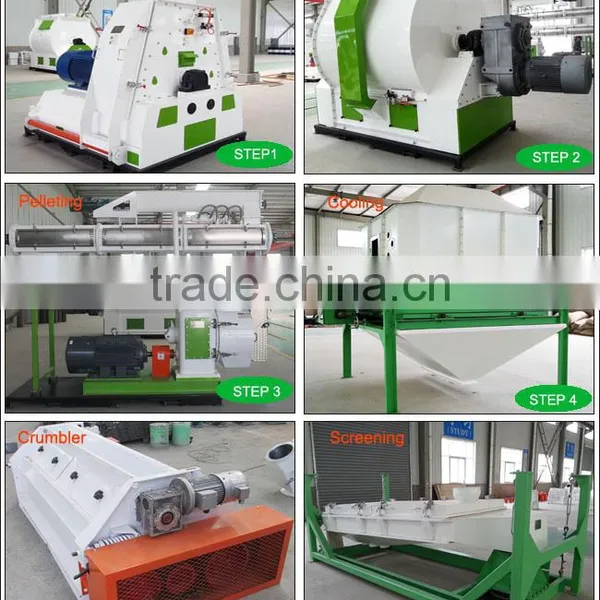

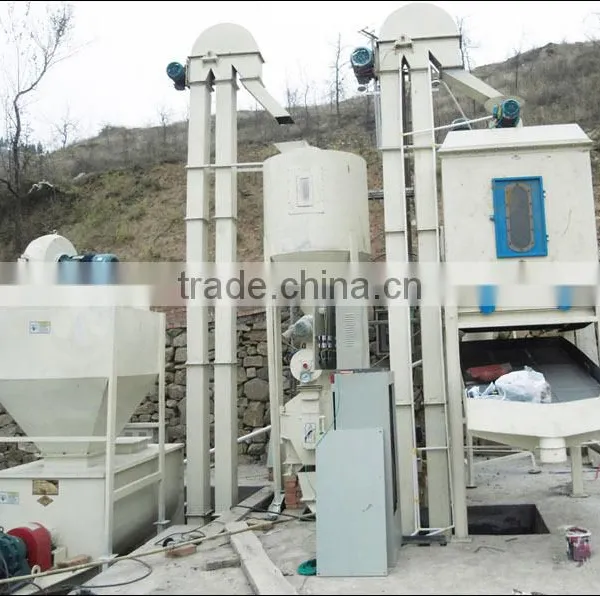

4.Picture Show:
5.Our service and pack:
1.Reply your inquiry within 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available.
4.Exclusive and unique solution can be provided to our customer by our well-
trained and professional engineers.
