Biomass Wood Pelletizer Machine

biomass wood pelletizer machine

Product Description

Products Introduction

biomass wood pelletizer machine  festures
1.Wood pellet making machine is an automation equipment,with automatic oil supply device to lubricate the machine.

2.Biomass pellet machine can forming with moisture less than 8%,and the moisture content can be 15%,but the density will low and capacity will a little higher.

3.Wood pellet machine features high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.

4. Widely suitability: All kinds of biomass raw material can be used to make pellets, for example: corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, palm fiber, cassava powder , sawdust and other crops , solid waste, furfural-residue, edible fungus dregs,and herbal medicine residue etc.

Parameters of biomass wood pelletizer machine

1. one set  in one line

2. two sets in one line

3. Three sets in one line

Detailed Images

Spare parts of biomass wood pelletizer machine

Working Principle and Process Detail

1. Through the belt conveyor, the materials get into the storage, then screw conveyor in the storage will feed material to the pellet forming chamber automatically and orderly.

2. In the forming chamber, two gear and mold help to form and press pellet, Gear rotate to press pellet come out surround.

3. Automatic cutting equipment around the mold, which can cut pellet automatically, it can also adjust the length of pellet.

4.During the process, the oil supply device can lubricate the gear, mold and bearings of the molds.

5.The maintenance: The machine belongs to high tech , full automatic machine which do not need Artificial maintenance , in order to keep the machine work well, the only thing need to do is making sure the grease cylinder( installed in the back of the power distribution cabinet) always full of engine oil.

The Whole Line

The whole line includes:

crusher-----dryer----pellet machine--cooler ----packing machine

Requirements of the raw materials:

1). Moisture content: less than 12%, if larger , dryer is needed.

2).Length: less than 6mm, if larger, crusher is needed.

We also produce crusher , dryer , cooler and packing machine , ALL THE MACHINES NEEDED of the whole pellet line, for further understanding, please contact me freely .

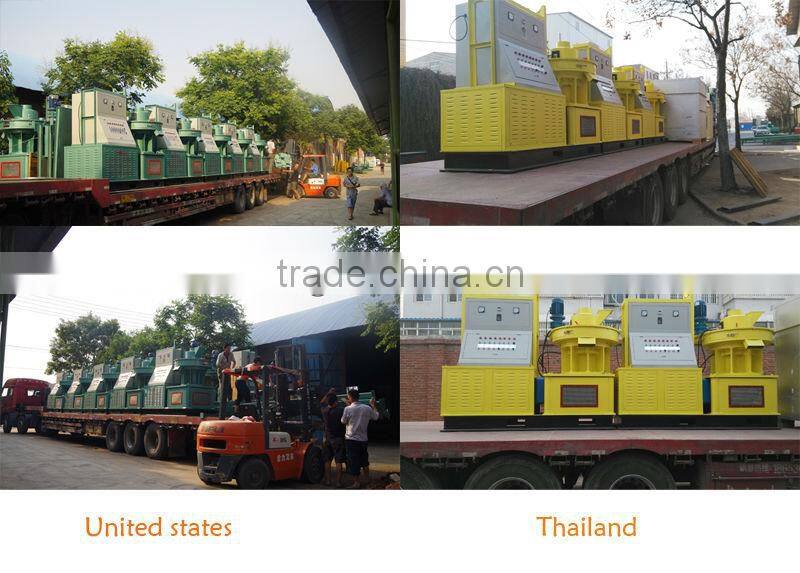

The Sucessful Case

Raw materials

Corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, wood, branches,

leaves, sawdust and other crops in rural areas , solid waste,palm fiber, furfural-residue, edible fungus

dregs,and Chinese herbal medicine residue etc.

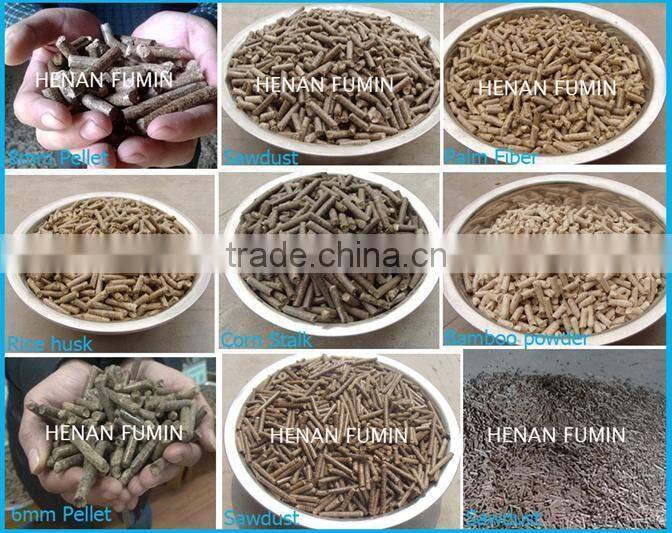

Pellets features

1.Pellet  is a kind of new-style energy with renewable, environmental protection, high efficiency and

low cost. with greater weight, high burning rate , easy to store and convenient to transportation.

2.Its size is only equal to 1 / 30 of the original straw and its density is 0.9-1.4g / cm3.

3.Its calorific value is about 3500-5500 kilocalorie.

4.It is widely used in heating, hotels, restaurants, bath in industries as heat source, solved the problem

of the coal boiler environmental pollution as well as the higher costs of industry fuel .

Any more information about biomass wood pelletizer machine , please contact me freely.
