I.Briquette making machine :
1.Flat die briquette making machine can forming material with moisture less than 25-30%.
2.With high accuracy specification,simple structure, easy operation, high automation,save labor.
3.Widely suitability:All kinds of biomass raw material ,industrial waste It can convert biomass raw material and solid waste into energy fuel with high density.
II.Specification of briquette making machine
III.Working principle and process detail:
1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber.
2.In the forming chamber ,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.

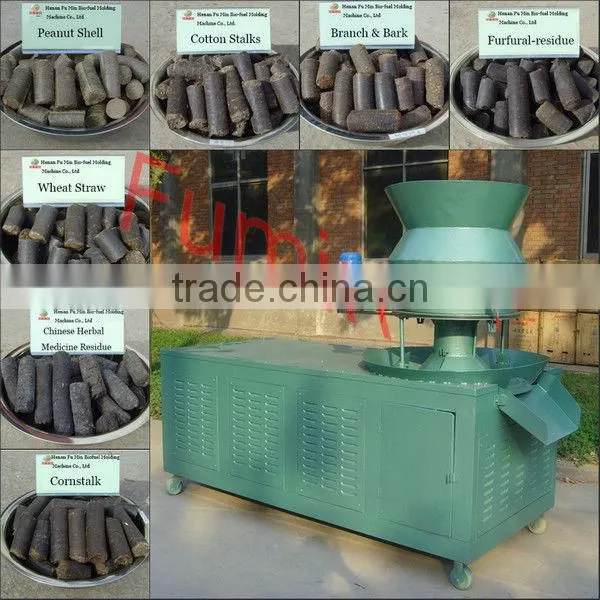

IV.Briquette features
1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.
2.Pellet (biomass briquette,biomass pellet,wood pellet) is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel.
3.High density from 0.9-1.4g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.
4.Biofuel can instead of coal for biomass power generation.
V.Raw material required:
1.All kinds of biomass material,or farm waste ,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.
2.Moisture:15%-30%,0-50mm.
VI.Our advantage :
1.Long history in wood pellet machine and biofuel briquette machine making,has export to more than 20 countries.
2.Our product with high automation which can save labor,and it is also easy to maintenance ,save a lot of maintenance time.
3.We have invented this machine and operate it for long than 6 years,We are one of the leader corporation in this area.
VII.Complete straw briquette production line
1.Crushing process:
Wood crusher which can crushed the raw material into sawdust shape ,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.
2.Dring process
Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .
3.Briquetting making machine
Briquette machine can convert the biomass material into pellet ,the length can be customed.
America customer visit and India customer

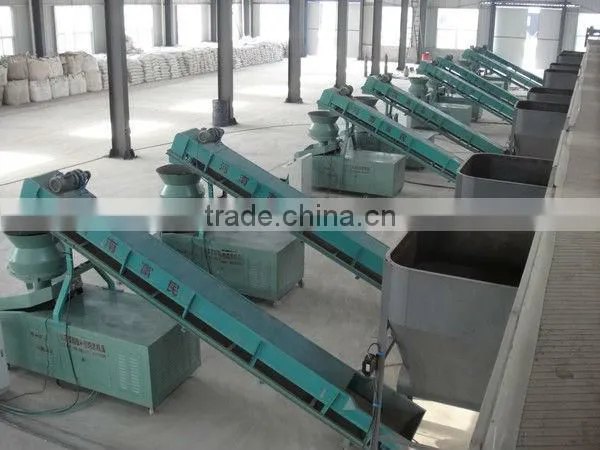

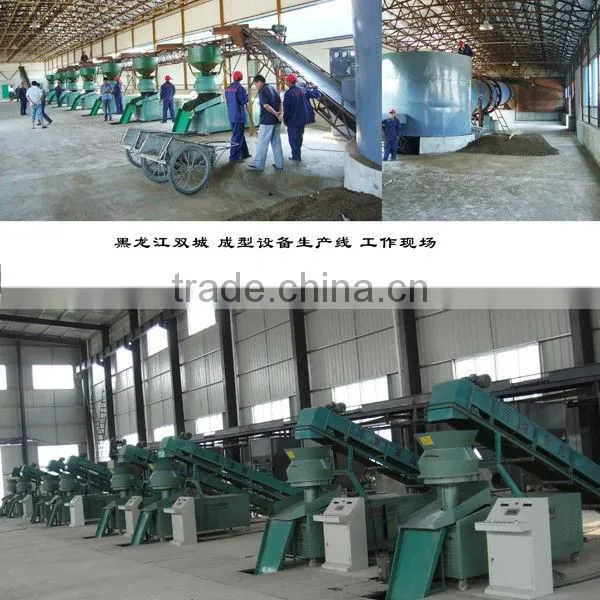

Biomass briquette production line case
Our briquette making machine can make big biomass briquette is mid-tech machine,welcome to our website and factory
