JP50-160 Stable Working Agricultural Reel Type Irrigation Machinery

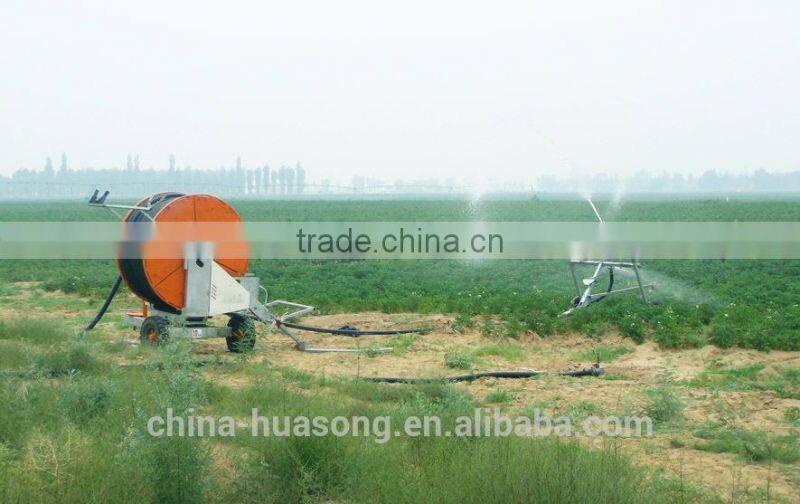

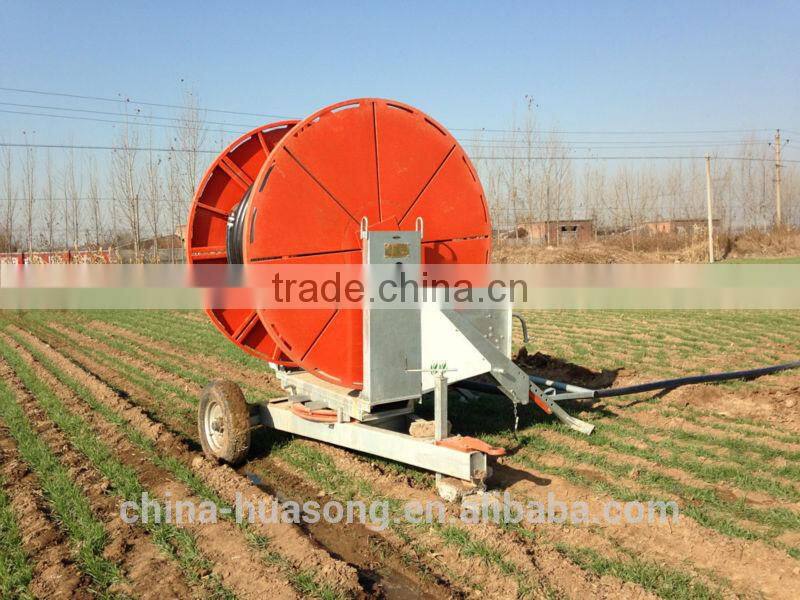

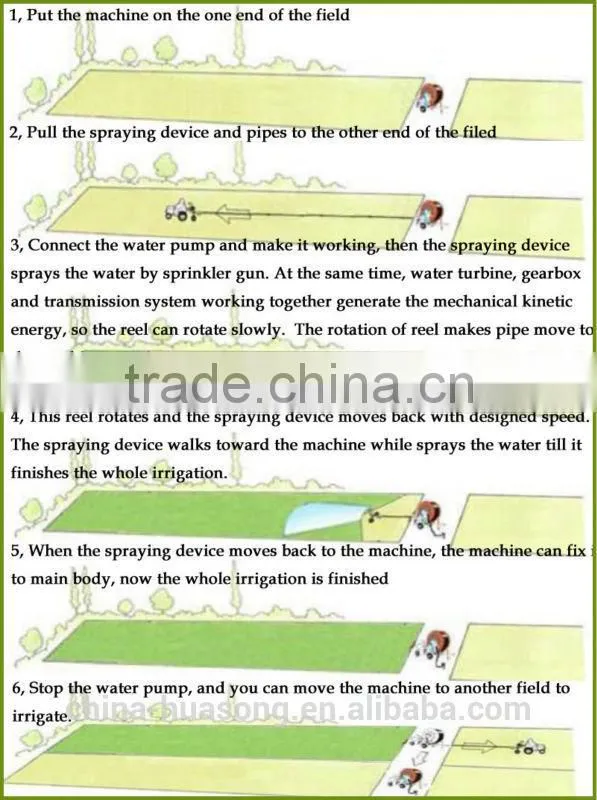

This sprinkler irrigation system consists of the chassis, reel, PE pipe, water turbine, gearbox, driving the speed compensation device.
1. With simple structure ,can be operated by 1-2 persons | |
2. High efficiency and large irrigation area and sprinkling covering in all direction. | |
3. High degree of automatic, pipe can be auto rewinding by itself. | |
4. Spread uniform, water and energy saving irrigation projects. | |
Tube recovery system |
Advanced tube recovery system to make sure every layer PE sprinkler irrigation pipe can be arranged in place and accurate. |
Strong recovery power |
Even in very low flow conditions, water spray car still can retrieve the tube fast, the fastest speed can be up to 180m/hour, which make it easier to adjust the irrigation quantity according to adjust crop demand. |
Chain transmission |
Running noiseless, equipment work more smoothly |
Advanced anti-reversal automatic brakes apparatus |
Changing the original brakes apparatus, easier to drag PE pipe human, and avoid reel reverse. |
Model |
PE-Pipe dia. |
PE-pipe Length |
Max. strip length |
Water flow (m3/h) |
Nozzle Dia(mm) |
Connection pressure |
50-150Tx |
50 |
150m |
2×180m |
7 - 16 |
11-14 |
3.5 - 7.6 |
65-220Tx |
65 |
220m |
2×260m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
65-250Tx |
65 |
250m |
2×290m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
65-340TX |
65 |
340m |
2×380m |
13 - 28 |
14 - 22 |
3.5 - 10.0 |
75-300TX |
75 |
300m |
2×345m |
13 - 38 |
14 - 26 |
3.5 - 10.0 |
75-350TX |
75 |
350m |
2×390m |
13 - 38 |
14 - 22 |
3.5 - 10.0 |
75-400TX |
75 |
400m |
2×435m |
13 - 30 |
14 - 20 |
3.5 - 10.0 |
90-250TX |
90 |
250m |
2×300m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
90-300TX |
90 |
300m |
2×350m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
Skype: hwasong03
Whatsapp: 0086 18336357892
If there is any interesting in this machine or any question about this machine, welcome to make inquiry via our service hot line. Skype or Whatsapp. We will make answer within short time.
