disk granulator
2015 High Quality disk granulator,disk granulate machine,fertilizer pan granulator
Description of disk granulator
Disk granulator is a key machine in fertilizer production process.Its quality directly decides the apperance and quality of fertilizer granules. Its operating principle is:the raw materials and recycle materials add into the granulator from the top,with the continuous rotation of the disk,the liquid sprayed by the spray pipe at the bottom can bond the materials together evenly.Then we can get the fertilizer granules.
Technical data of disk granulator
Model |
Pan diameter |
Pan side height |
Rotation speed r/m |
motor |
output(t/h)
|
reducer |
WT-1 |
1000 |
300 |
16 |
4.5 |
0.5 |
BW33-23 |
WT-1.2 |
1200 |
300 |
19 |
7.5 |
0.5-0.8 |
BW33-23 |
WT-1.5 |
1500 |
300 |
19 |
7.5 |
0.8-1 |
BW33-23 |
WT-20 |
2000 |
240-350 |
16-18 |
7.5 |
0.6-2.5 |
BW33-23 |
WT- 25 |
2500 |
500 |
13.6 |
7.5 |
1-4T |
BW33-23 |
WT-28 |
2800 |
600 |
13.6 |
11 |
1.2-5 |
BW33-23 |
WT-30 |
3000 |
600 |
13.6 |
11 |
2-5 |
BW33-23 |
WT-32 |
3200 |
600 |
13.6 |
11 |
1.6-6.5 |
BW33-23 |
WT-36 |
3600 |
600 |
11.3 |
15 |
2-8 |
BW33-23 |
Traits of disk granulator
1.It is used for producing medium-low concentration of compound fertilizers,the rate of being ball can be above 93%.
2.The shell of the granulator uses a special rubber-lined,anti-corrosion,long service time.
3.Unique scraper device can validly prevent lumps and adhering,improve the operation . efficiency

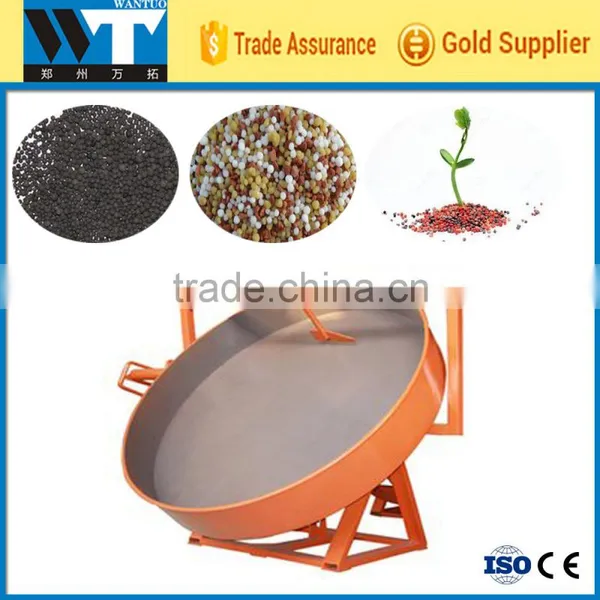

Pictures of disk granulator
| Package and Shipping | ||||||
| Delivery time | Within 5-7 days after receiving clients' payment | |||||
| Payment Terms | T/T L/C Western Union D/P D/A Escow Paypal | |||||
| Packing | wooden box free of fumigation | |||||
| Quality Gurantee: | Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers | |||||
| Our service | ||||||
| 1 Qualtiy Gurantee | 1 years guanrantees for each machine | |||||
| 2 Pre-Testing before forwarding | All machines will be pre-tested to make sure it will be received in good condition |
|||||
| 3 Operation Video and instruction |
We will provide you operation video and detailed instructions to install and you can make full use of the machine | |||||
| 4 Full Techinical service | Engineer is ready to provide you our full-process tracing and instruction |
|||||
| 5 24hours emergency phone: | 008618638799110 WHATAPP:008618638799110 | |||||
| Our Company | ||||||
| 1 Manufacturer for disk granulator and Fertilizer machinery | ||||||
| 2 Alibaba Assessed Gold Supplier | ||||||
| 3 100% Quality control before forwarding | ||||||
| 4 Competitive price withe best quality and service | ||||||
FAQ:
1 Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2 Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3 How about your after-sale service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4 Warranty time of your machine?
1 years warranty time except for consumable spare parts
5 How about delivery time of your machine?
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time
