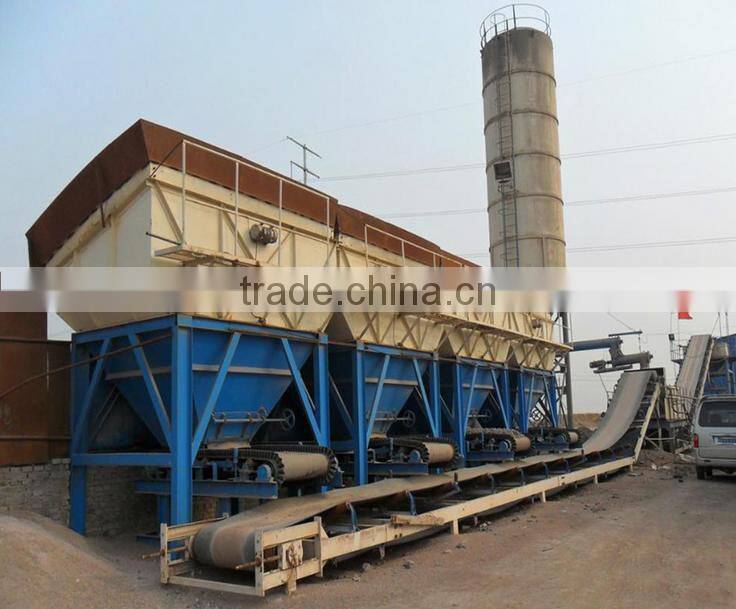

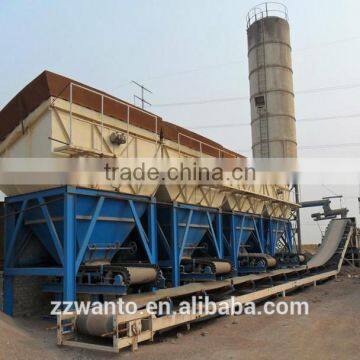

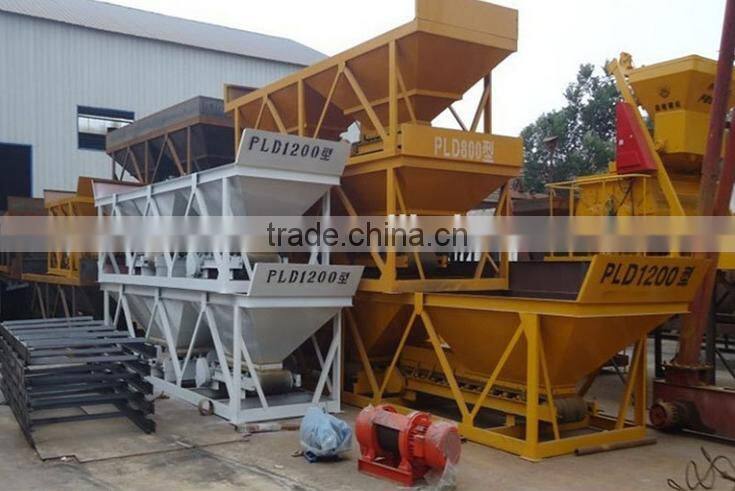

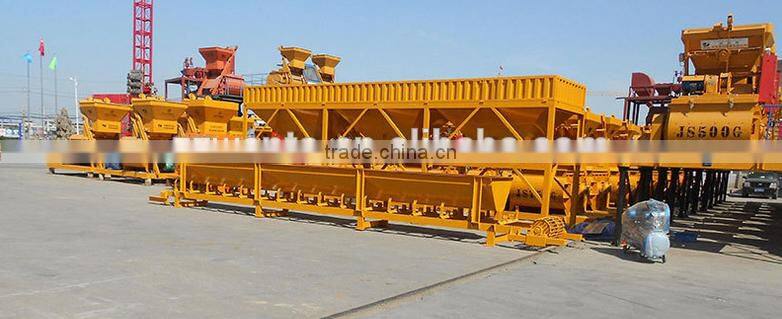

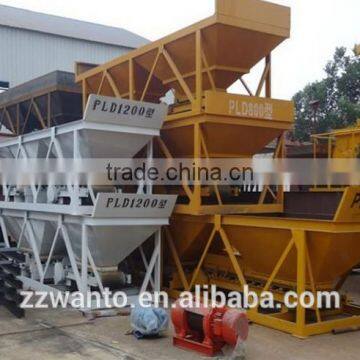

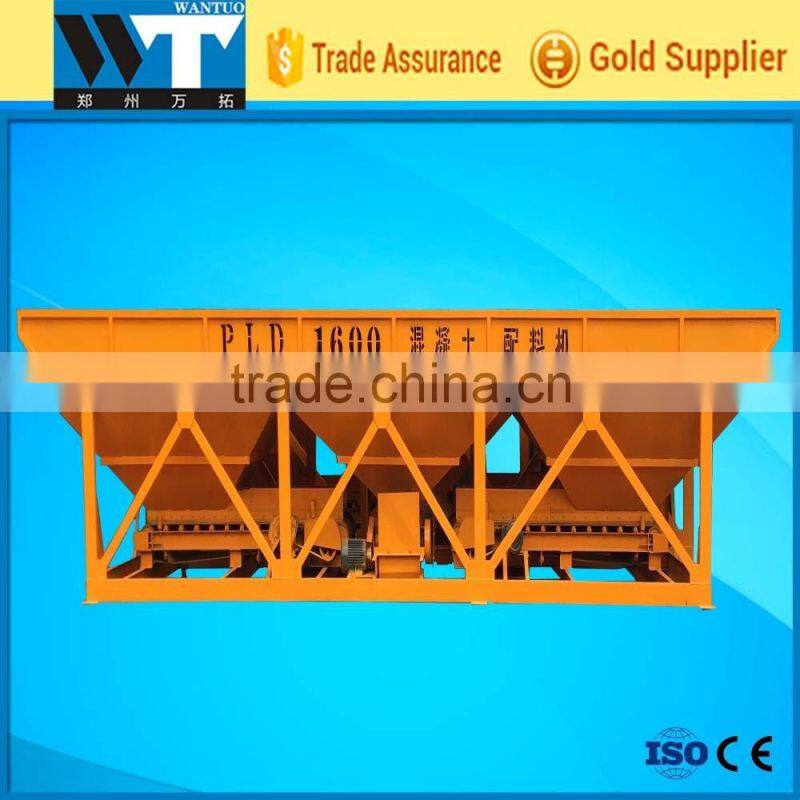

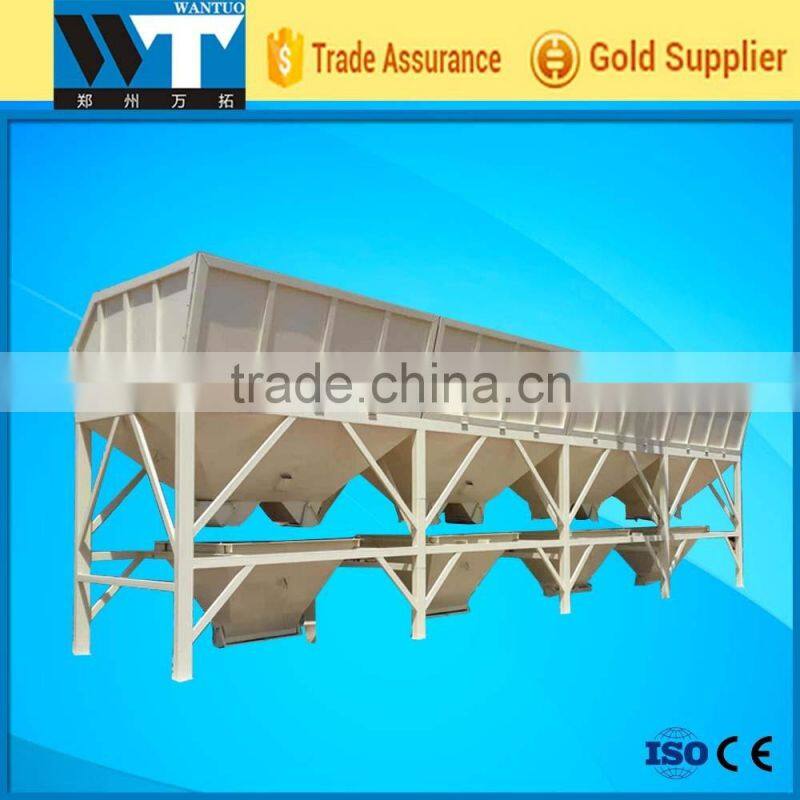

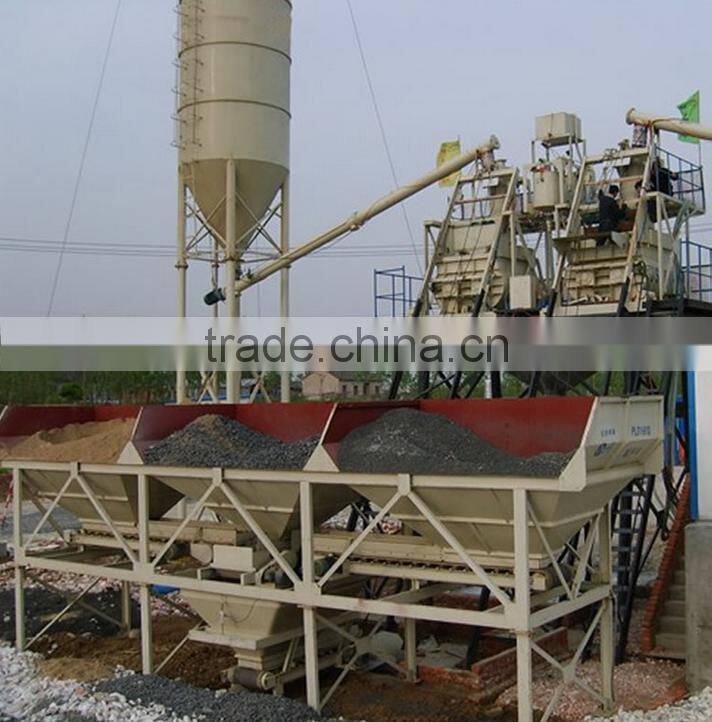

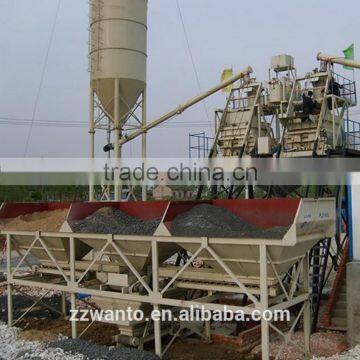

Hot Sell PLD1600 concrete weigh batcher
Hot Sell PLD1600 concrete weigh batcher
1.PLD series concrete batching machine is a kind of automatic batching equipment used on the foreground matched with the mixer. It can finish batching 3-6 kinds of material like sand,stone,cement, etc. automatically according to the concrete proportion designed by users.
2.This series concrete batching machine adopt electronic weighing,microcomputer control,digital display,cable remote control,which has the advantages of accurate weighing,high batching precision,powerful control functions and easy operation, etc.
3.This series concrete batching machine, combined with corresponding mixer,various of different forms and type concrete batching plant can be formed.
| Type | PLD600 | PLD800 | PLD1200A | PLD1200B | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Weighing Hopper Capacity(L) | 600 | 800 | 1200 | 1200 | 1600 | 2400 | 3200 | 4800 |
| Storing Hopper Capacity(m3) | 2*1.2m3 | 2*3 m3 | 3*4m3 | 3*3m3 | 4*5m3 | 4*10m3 | 4*18m3 | 4*25m3 |
| Productivity(m3/h) | 30 | 48 | 60 | 60 | 75 | 120 | 160 | 280 |
| Batching Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max measuring(kg) | 2000 | 3000 | 3000 | 3000 | 3000 | 4000 | 5000 | 8000 |
| Aggregate | 2—3 | 2—3 | 2—4 | 2—4 | 2—5 | 2—5 | 2—5 | 2—5 |
| Feeding Height(mm) | 1850 | 2430 | 2600 | 2600 | 2900 | 2900 | 3200 | 3200 |
| Speed of feeding(m/s) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Power(kw) | 3*2.2 | 3*3 | 3*3 | 4*3 | 5*4 | 11 | 15 | 18.5 |
| Total weight | 1360 | 2300 | 2800 | 4100 | 5600 | 8500 | 10500 | 14000 |
| Outline dimension | 3800 *1400 *2200 |
5400 *1800 *3010 |
6000 *1800 *3090 |
8400 *1800 *3100 |
12000 *2200 *3260 |
10000 *2200 *4000 |
14500 *3000 *4600 |
15520 *3900 *5090 |
Payment Terms:T/T L/C Western Union D/P D/A Escow Paypal
Packing: wooden box free of fumigation for concrete aggregate batcher electric batcher for sale
Quality Guarantee: Our Quality guarantee term is for one year, Malfunctions which are caused by operation mistakenly will be responsible for customers
1 Quality guarantee
2 Pre-Testing before forwarding
3 Operation Video and instruction
4 Full Technical service
1 Manufacturer for concrete aggregate batcher electric batcher for sale
2 Alibaba Assessed Gold Supplier
3 100% Quality control before forwarding
4 Competitive price withe best quality and service
1 Are you manufacturer
Yes we are the manufacturer and welcome to visit our factory
2 Can you change the machine voltage as our request
Yes we can change the machine voltage as customers’ request
3 How about your after-sale service
Our engineer can go outside to install and train your workers to operate the full machine line.
4 Warranty time of your machine
2 years warranty time except for consumable spare parts
5 How about delivery time of your machine
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time.
